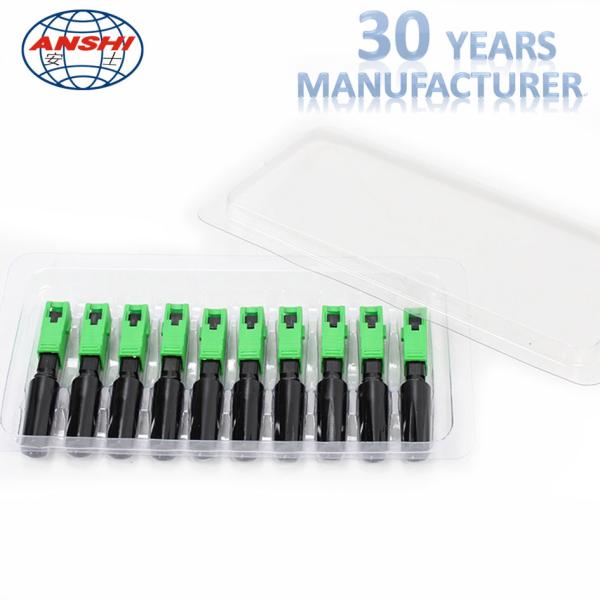

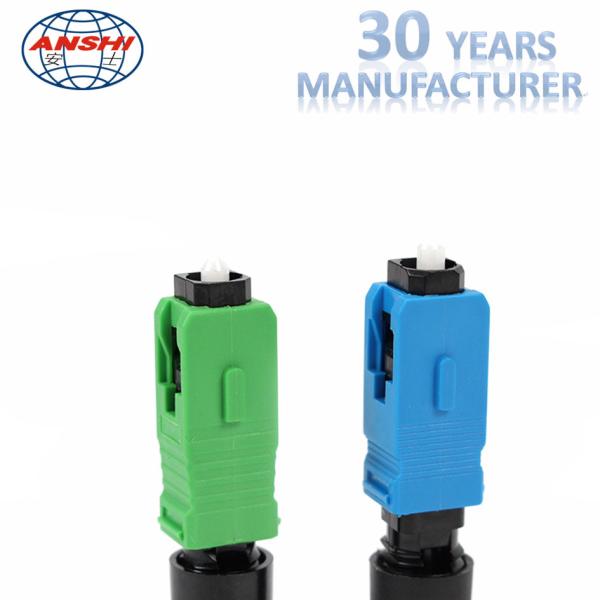

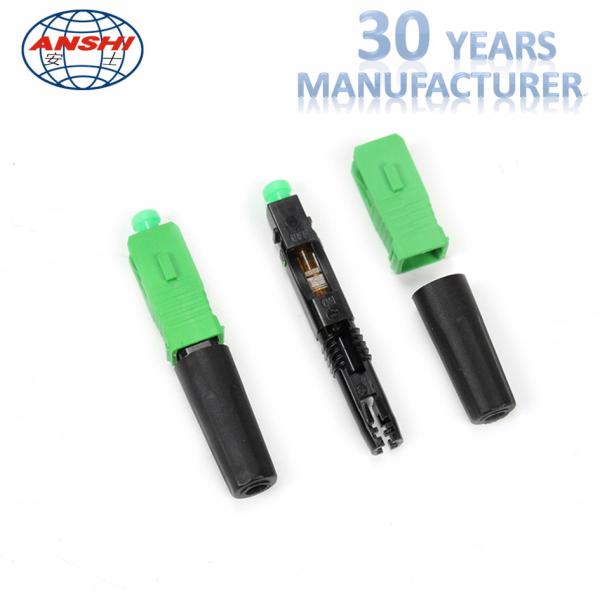

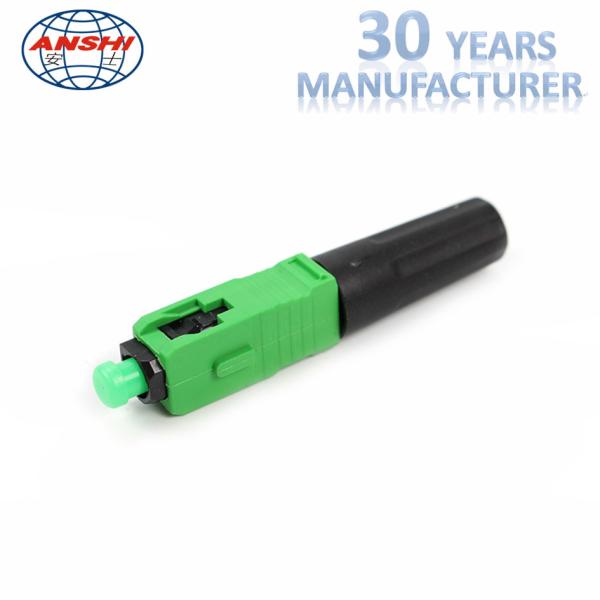

Pre Embedded Quick Connector SC APC Fiber Optic Accessories
Pre Embedded Quick Connector SC APC Fiber Optic Accessories
Pre Embedded Quick Connector SC APC Fiber Optic Accessories
Pre Embedded Quick Connector SC APC Fiber Optic Accessories
Pre Embedded Quick Connector SC APC Fiber Optic Accessories
Pre Embedded Quick Connector SC APC Fiber Optic Accessories
Pre Embedded Quick Connector SC APC Fiber Optic Accessories
Pre Embedded Quick Connector SC APC Fiber Optic Accessories
Pre Embedded Quick Connector SC APC Fiber Optic Accessories
Pre Embedded Quick Connector SC APC Fiber Optic Accessories
Specifications
Brand Name :
ANSHI
Model Number :
AS-ODF-KJT-SC/APC-10
Certification :
ROHS, ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
500,000pcs/week
Product Name :
Quick Connector
Working Wavelength :
Working Wavelength
Repeatability :
Repeatability
Type :
SC/APC
Mode :
Singlemode or Multimode
Application :
FTTH system
Description

FTTH SC / APC Optical Fiber Quick Connector Single Mode Fast Connector

Product Attributes

Supply pre-embedded FTTH SC/APC fiber optic quick connector

Features:

1. FTTH project usable

2. Field installable

3. Insert loss less than 0.15dB

4. Metal V-shape cavity work well in high and low temperature

5. Installation less than 1 minutes

6. Reliable and superior optical performance

7. Cable Tensile test complies with Telcordia GR-326-COR

Application:

1. Distribution frames

2. Maintenance or emergency restoration of fiber networks

3. Patch panels

4. FTTH Outlets

5. Field word

ITEM Technical Parameters
Applicable for

Drop cable / Indoor cable

0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter

SM(9/125), MM(50/125, 62.5/125)

125μm ( 657A & 657B )
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss > 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >10 N
Tensile strength >50 N
Using temperature -40~+85°C
On-line tensile strength (20 N) IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times) IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times) IL ≤ 0.
