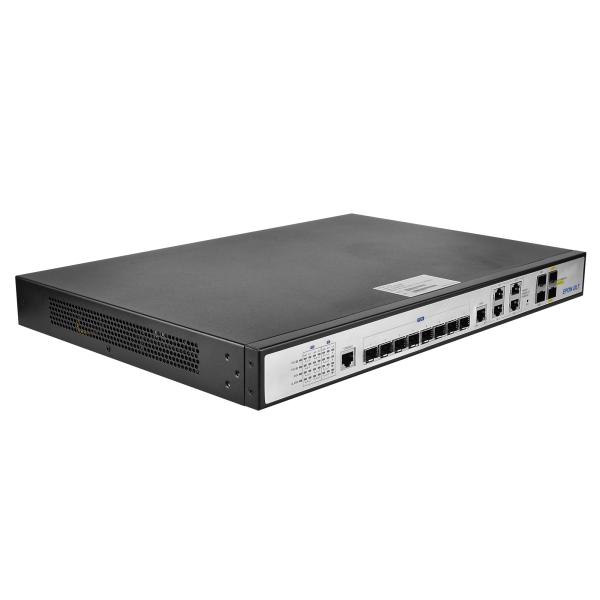

AS-OLT-05A GPON OLT Access 512 ONU Users At The Same Time
AS-OLT-05A GPON OLT Access 512 ONU Users At The Same Time
AS-OLT-05A GPON OLT Access 512 ONU Users At The Same Time
AS-OLT-05A GPON OLT Access 512 ONU Users At The Same Time
AS-OLT-05A GPON OLT Access 512 ONU Users At The Same Time
AS-OLT-05A GPON OLT Access 512 ONU Users At The Same Time
AS-OLT-05A GPON OLT Access 512 ONU Users At The Same Time
AS-OLT-05A GPON OLT Access 512 ONU Users At The Same Time
Specifications
Brand Name :
ANSHI
Model Number :
AS-OLT-05A
Certification :
ISO9001, SGS
Place of Origin :
ZHEJIANG, CHINA
MOQ :
Negotiable
Price :
Negotiable
Product name :
GPON OLT
EPON interface :
8 x EPON (1.25/1.25 Gbps)
Uplink Ethernet Interface :
4 x RJ-45
Dimensions :
442mmX360mmX44mm
Weight :
＜ 5.5KG
Spaging ratio :
1: 64
Description

AS-OLT-05A GPON OLT Supports 1:64 split ratio,can access 512 ONU users at the same time

Product Overview

AS-OLT-05A is EPON OLT series product, 19-inch 1U height rack-mounted, featuring small size, convenience and flflexibility, easy deployment, and high performance. Easy installation and maintenance, saving space.
AS-OLT-05A EPON OLT provides 8 standard EPON PON ports ; 4 * Uplink GE ETH ports, 4 * Uplink GE SFP ports and 4* Uplink SFP+ ports.Supports 1:64 split ratio,can access 512 ONU users at the same time. Support difffferent types of ONU hybrid networking, suitable for triple play,Video network, corporate LAN, and Internet of Things scenarios. Provide perfect, intelligent, powerful, advanced and professional solutions for FTTH/FTTB/FTTO projects.

Product Specifications
GPON interface
8 x EPON (1.25/1.25 Gbps)
Uplink Optical Interface
2 x GE
Uplink Ethernet Interface
4 x RJ-45
EPON
IEEE 802.3ah EPON
Console
RJ45 EIA/TIA-232 Console management port
MGMT
1000BASE-T out-band management port
Switching Capacity
64Gbps
Package transmit rate
(IPv4/IPv6)
125Mpps
Spaging ratio
1: 64
Maximum ONU quantity
512 ONT
Power Adaptor
AC Input: 100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V
Redundancy Design
Pluggable double power supply, double AC, double DC and AC+DC
Consumption
＜56 W
Storage
temperature -10 to 70°C, rel. humidity 10‒90% (non-condensing)
Operation
temperature 0 to 45°C, rel. humidity 10‒90% (non-condensing)
Dimensions
442mm×360mm× 44mm(W * D *H)
Weight
＜5.5KG

AS-OLT-05A GPON OLT Access 512 ONU Users At The Same TimeAS-OLT-05A GPON OLT Access 512 ONU Users At The Same Time
