AS-OLT-04A GPON OLT Supports 1/64 Split Ratio Can Access 256 ONU Users At The Same Time
AS-OLT-04A GPON OLT Supports 1/64 Split Ratio Can Access 256 ONU Users At The Same Time
AS-OLT-04A GPON OLT Supports 1/64 Split Ratio Can Access 256 ONU Users At The Same Time
AS-OLT-04A GPON OLT Supports 1/64 Split Ratio Can Access 256 ONU Users At The Same Time
AS-OLT-04A GPON OLT Supports 1/64 Split Ratio Can Access 256 ONU Users At The Same Time
AS-OLT-04A GPON OLT Supports 1/64 Split Ratio Can Access 256 ONU Users At The Same Time
AS-OLT-04A GPON OLT Supports 1/64 Split Ratio Can Access 256 ONU Users At The Same Time
AS-OLT-04A GPON OLT Supports 1/64 Split Ratio Can Access 256 ONU Users At The Same Time
Specifications
Brand Name :
ANSHI
Model Number :
AS-OLT-04A
Certification :
ISO9001, SGS
Place of Origin :
ZHEJIANG, CHINA
MOQ :
Negotiable
Price :
Negotiable
Product name :
GPON OLT
EPON interface :
16 x GPON (1.25/2.5 Gbps)
Uplink Ethernet Interface :
4 x RJ-45
Dimensions :
440mmX400mmX44mm
Weight :
＜ 6.5KG
Spaging ratio :
1: 128
Description

AS-OLT-04A GPON OLT Supports 1:64 split ratio,can access 256 ONU users at the same time

Product Overview

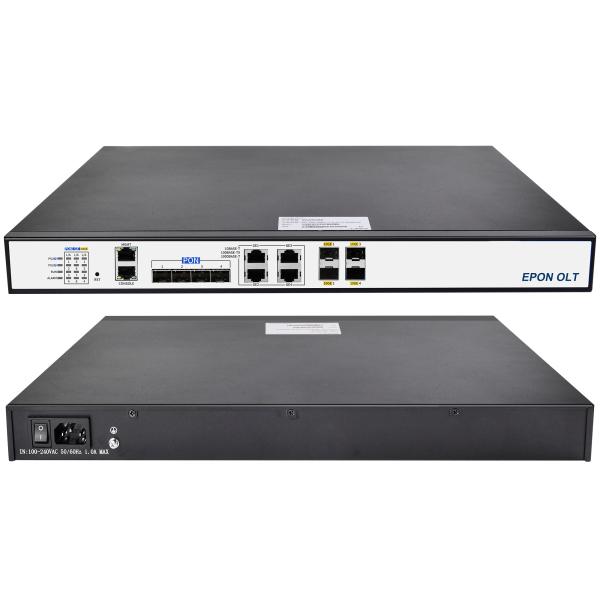

AS-OLT-04A is EPON OLT series product, 19-inch 1U height rack-mounted, featuring small size, convenience and flflexibility, easy deployment, and high performance. Easy installation and maintenance,saving space.
AS-OLT-04A EPON OLT provides 4 standard EPON PON ports ; 4 uplink GE Ethernet RJ45 ports; 4 10GE SFP+optical ports.Supports 1:64 split ratio,can access 256 ONU users at the same time. Support difffferent types of ONU hybrid networking, suitable for triple play,Video network, corporate LAN, and Internet of Things scenarios. Provide perfect, intelligent, powerful, advanced and professional solutions for FTTH/FTTB/FTTO projects.

Product Specifications
EPON interface
4 x EPON (1.25/1.25 Gbps)
Uplink Optical Interface
4 * 10GE SFP+
Uplink Ethernet Interface
4 * GE RJ45
EPON
IEEE 802.3ah EPON
Console
RJ45 EIA/TIA-232 Console management port
MGMT
100BASE-T out-band management port
Switching Capacity
103Gbps
Package transmit rate
(IPv4/IPv6)
125Mpps
Spaging ratio
1: 64
Maximum ONU quantity
256 ONT
Power Adaptor
AC Input::100 to 240 V AC, 50/60 Hz; DC Input : 36V-75V
Redundancy Design
Pluggable double power supply, double AC, double DC and AC+DC
Consumption
＜46 W
Storage
temperature -10 to 70°C, rel. humidity 10‒90% (non-condensing)
Operation
temperature -5 to 50°C, rel. humidity 10‒90% (non-condensing)
Dimensions
442mm×227mm× 44mm(W * D *H)
Weight
＜ 3.0KG

AS-OLT-04A GPON OLT Supports 1/64 Split Ratio Can Access 256 ONU Users At The Same TimeAS-OLT-04A GPON OLT Supports 1/64 Split Ratio Can Access 256 ONU Users At The Same TimeAS-OLT-04A GPON OLT Supports 1/64 Split Ratio Can Access 256 ONU Users At The Same Time
