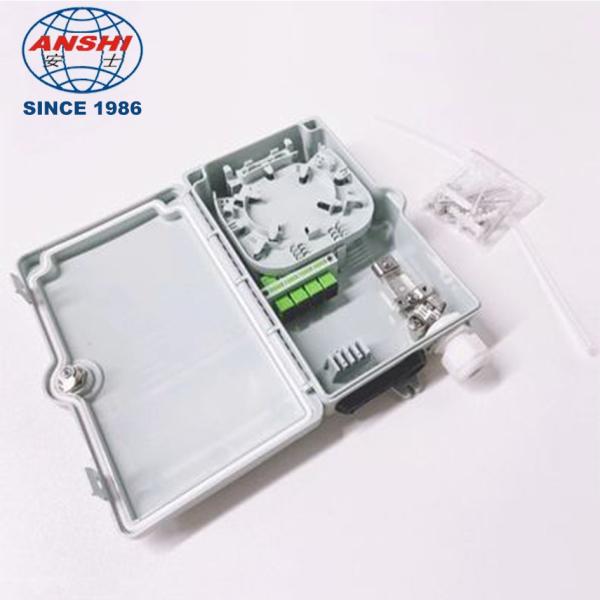

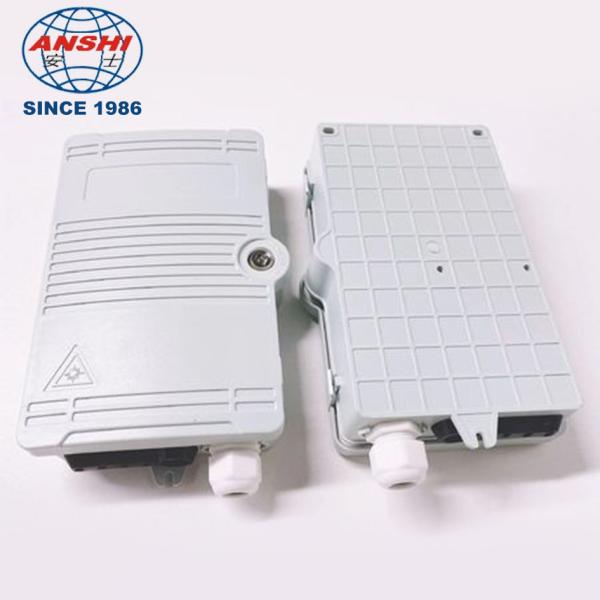

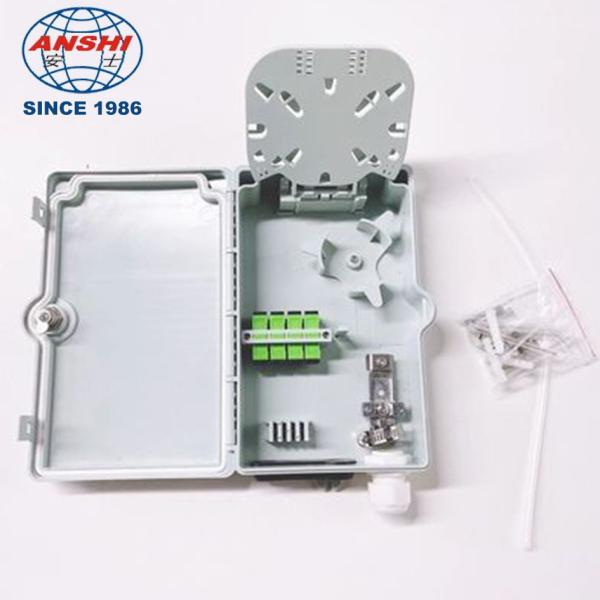

ANSHI 4 Ports Fiber Access Termination Box FTTH Outdoor Fiber Optic Terminal Box
ANSHI 4 Ports Fiber Access Termination Box FTTH Outdoor Fiber Optic Terminal Box
ANSHI 4 Ports Fiber Access Termination Box FTTH Outdoor Fiber Optic Terminal Box
ANSHI 4 Ports Fiber Access Termination Box FTTH Outdoor Fiber Optic Terminal Box
ANSHI 4 Ports Fiber Access Termination Box FTTH Outdoor Fiber Optic Terminal Box
ANSHI 4 Ports Fiber Access Termination Box FTTH Outdoor Fiber Optic Terminal Box
Specifications
Brand Name :
ANSHI
Model Number :
AS-ODF-FDB-4B
Certification :
ISO9001, SGS
Place of Origin :
China
MOQ :
Can discuss
Price :
Negotiable
Delivery Time :
10000pcs/week
name :
Fiber Optic Distribution Box
Dimension :
190*140*90mm
Capability :
4 Port
Application :
FTTH
material :
ABS
Color :
Gray
Packing :
1 pcs /box
Description
FTTH Waterproof 4 Ports SC/APC Fibre Optics Terminal Distribution Box
Product Description

Descriptions:

- Fiber optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
- The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
- AS-ODF-FDB-4B is designed for outdoor using with 1 port for round cable and 4 ports for FTTH drop cable.
- Its waterproof grade can match IP65.

Feature:

- Light weight, small size, save cost.

- Up to 4 FTTH drops.

- Suitable for wall and pole mountable.

- User familiar industry interface, using high impact plastic.
- Can accommodate 1X4 optical fiber splitter.

- 4 pcs of adapter port is fit with SC simplex adapter or LC duplex adapter.
- 1 inlet capacity for outdoor cable and 4 outlet ports for ftth drop cable.
- Space saving: Double-layer design for easier installation and maintenances:
- Lower layer for splitters and over length fiber storage.
- Upper layer for splicing, cross-connecting and fiber distribution.
- Cable fixing units provided for fixing the outdoor optical cable.
- Protection Level: IP65
- Accommodates both cable glands as well as tie-wraps
- Lock provided for extra security

Application

- Passive Fiber Optic System;

- Widely used in FTTX systems;
- Telecom project
- Fiber optic termination, indoor and outdoor application;
- CATV networks

- LAN

- WAN

- Metro

- Data communications networks

- Telecommunication networks;
- FTTD (Fiber To The Desk) interfaces.

Item AS-ODF-FDB-4B
Dimension 190X140X90mm
Net Weight 0.35kg
Splice tray 1pcs
Adapter ports 4 port
Splitter Mini Tube PLC Splitter 1X4
Splitter no. max. 1pcs
Color Gray
Working Temperature -25°C ~ 60°C (5 to 95% relative humidity)

ANSHI 4 Ports Fiber Access Termination Box FTTH Outdoor Fiber Optic Terminal BoxANSHI 4 Ports Fiber Access Termination Box FTTH Outdoor Fiber Optic Terminal BoxANSHI 4 Ports Fiber Access Termination Box FTTH Outdoor Fiber Optic Terminal Box
