Product: 10G Ethernet Media Converter

Model: LNK-10G-MC Series

Overview

The LNK-10G-MC Series is a 10 Gigabit Ethernet copper to fiber media converter. It offers conversion technology by providing one 10GBase-T RJ-45 port and one pluggable 10GBase-X fiber SFP+ port or XFP port.

The open SFP+ or XFP port supports a wide variety of E-link 10GE SFP+ or XFP fiber modules, as well as third party MSA compatible SFP+ or XFP modules.

LNK-10G-MC Series is a copper to fiber 10Gbps Ethernet media converter based on IEEE802.3an and IEEE802.3ae. With SNMP and Web-based management in the LNK600-R16, the Network administrator can monitor, configure and control the activity of each card in the chassis.

This converter uses Cat.6a/Cat 7 twisted pair cable as copper transmission media with RJ-45 and 10G optical solution with SFP+ or XFP. The data stream can be converted bi-directionally from 10GBase-T to 10GBase-R and vice versa. With full duplex wire speed forwarding capability between these two media,

LNK-10G-MC brings you the best and simplest solution for the 10G Ethernet conversion between copper wire and fiber.

Features

· Support Jumbo Frame

· Transparent Transport and very low delay

· Support ITUT prescribed DWDM/CWDM wavelength

· Support DMI function for SFP+/XFP fiber module

· Support Loopback test function

· Economic In-band Management function

· Powerful Network Management function(Web,SNMP,Console)

· Support hot plugging

· Support 2U Rack (16 channel) and standalone use

· Full State Led display

· Easy installation

· UTP cable length detection(only RJ45 interface)

· Provide reliable long-distance connection

· Fast connection with multi-function

· Small portable size case

· Plug and play

Application

Connection between fiber to copper 10Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission up to 160km

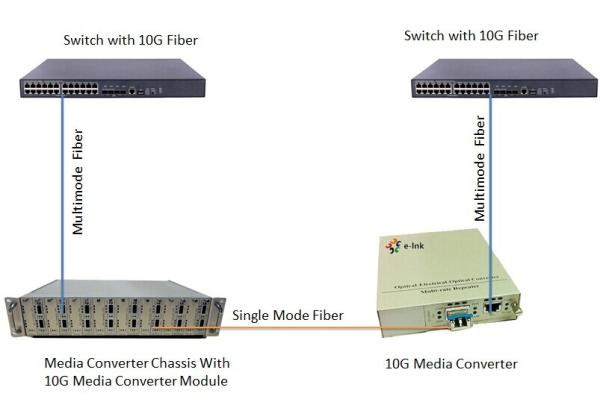

Extend the network distance between two 10 Gigabit Fiber Switches across a fiber link up to 80km in length

Convert your 10G SFP+ Direct Attach (Twinax) or XFP CX4 copper to multimode or single mode fiber.
