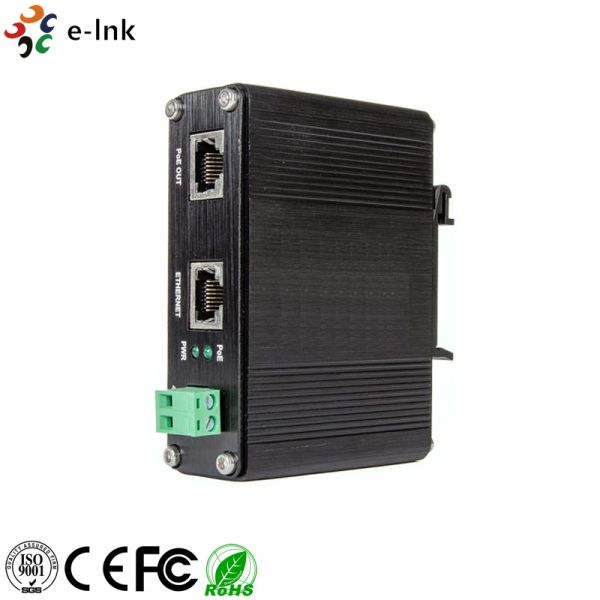

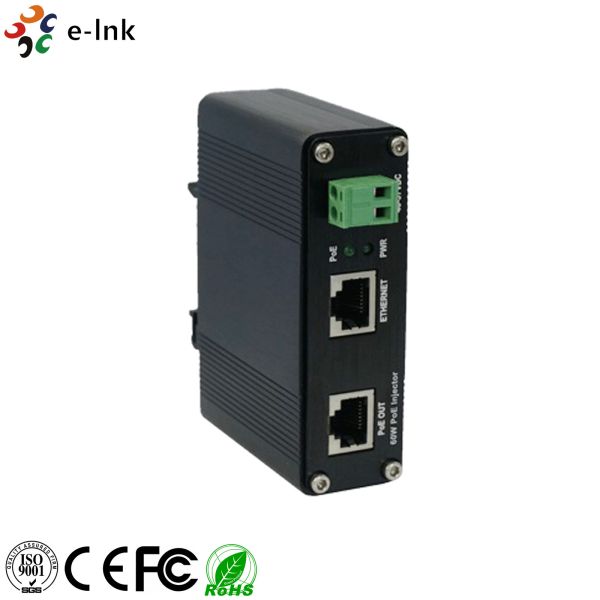

Industrial 10/100M 12V DC 2A 24W PoE Injector

Model: LNK-INJ-P12-24W Series

Overview

The LNK-INJ-P12-24W product is a Hardened 10/100M High Power PoE Injector allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100Base-T and are compliant with IEEE 802.3ab.

Features

• 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port(Data + Power)
• Support 12VDC@2A 24W PoE Output Power
• Support 10/100Base-TX
• Support DIN-Rail & Wall-mount installation.
• Extensive LED indicators for PoE diagnostics
• Environmentally Hardened -40°C to 80°C
• (-40°F to 176°F) operating temperature

Technical Indexes

• Ethernet
• Processing Type: Forward Half-duplex, Full-duplex
• Forward Filter Rate: 148,800pps (100Mbps)
• Cabling: 100Base-T: Cat5 or above
• Maximum Distance: Cat5 UTP up to 100m
• Connector: 2x RJ45
• Environmental
• Operating Temperature: -40°C to 80°C (-40°F to 176°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% non-condensing
• MTBF: >200,000hrs
• Electrical and Mechanical
• Input Power: 12VDC (Terminal Block)
• Power Consumption: 30W Max.
• PoE:
• Output Voltage: 12VDC @ 2A
• Characteristic: one port support PoE Power Supply
• Port: RJ45
• Max. Power per Port: PoE Power (Max): 24W
• LED Indicators:
• Power: Power Status
• PoE: PoE Status
• Dimensions (WxDxH): 95 x 70 x 30 mm
• Weight: 0.25Kg
• Casing: Aluminum Case
• Mounting Options: DIN-Rail / Wall-mount
• Regulatory Approvals
• ISO9001
• FCC part 15, Class A
• EN55022:2006+A1: 2007 Class A
• Surge Protection:
• RJ45: 1KV
• Power: 500W
• ESD: 4KV/8KV

Ordering Information

Model Description

LNK-INJ-P12-24W Hardened 10/100M 1-port Ethernet Input + 1-port PoE Output Injector
Mounting Options: Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options : Power Supply is to be purchased separately

Typical Application
