24 Port 10 / 100M Industrial Ethernet Switch Din Rail Mount With 2 Gigabit TP / SFP Combo Ports
24 Port 10 / 100M Industrial Ethernet Switch Din Rail Mount With 2 Gigabit TP / SFP Combo Ports
24 Port 10 / 100M Industrial Ethernet Switch Din Rail Mount With 2 Gigabit TP / SFP Combo Ports
24 Port 10 / 100M Industrial Ethernet Switch Din Rail Mount With 2 Gigabit TP / SFP Combo Ports
Specifications
Brand Name :
E-link
Model Number :
LNK-2024-SFP Series
Certification :
RoHS,CE,FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100000 pcs
Delivery Time :
5
Packaging Details :
Standard Export Package
Transfer Mode :
Store-And-Forward
Connector :
24x 10/100M copper cable RJ45
Combo ports :
2x 10/100/1000M
transmission distance :
25km
Fiber type :
Single mode
Address Database Size :
4K
MTBF :
190,000 hours
Power Consumption :
20W
Operating Temperature :
-20 ° ~ 75 ° C
Warranty :
1 year
Description

24-Port 10/100M Ethernet Switch with 2 Gigabit TP/SFP Combo Ports

Model: LNK-2024-SFP Series


Overview

LNK-2024-SFP is switch provides a network point for data transmission. All the 24 Ethernet ports can be connected with 10/100Mps quickly, and the uplink port is 1.25Gbps fiber interface.

The Ethernet features simple and reliable design, automatic identification Ethernet requirements, duplex and high-speed.

This cost-effective switch provides network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.





Features

  • Can transfer data for network surveillance cameras
  • 24x 100Mbps auto-sensing RJ45 ports, 2x 10/100/1000M combo ports
  • Supports port auto-flip (Auto MDI/ MDIX)
  • Uplink port: 1.25Gbps SFP fiber interface
  • Maximum power consumption: 20W
  • Adopts store-and-forward architecture
  • Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall mounting
  • Built-in 1U rack power supply series, easy to place it into standard mounting brackets
  • Optic fiber module is not included, can be ordered separately



Technical Indexes

Product NameEthernet Switch with 24 10/100M Ports and 2 Gigabit FP/SFP Combo Ports
Connector

24x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX)
2x 10/100/1000M combo ports

Transfer ModeStore-And-Forward
Network Medium

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 and more UTP(≤100 meter)

Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative)
Performance SpecificationsBandwidth: 8.8Gbps (non-blocking)
Network Latency (100 to 100M bps): maximum delay less than 20 microseconds
Packet Buffer Memory: 2.75M
Address Database Size: 4K
MTBF: 190,000 hours (about 21 years)
Network Protocols and StandardsIEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
LEDs StatusSystem: power supply
Every Port: connecting, Ethernet working status
Power Consumption20W
Dimensions/WeightDimensions: 440x275x44.5mm; Weight:4.878kg
Working Environment

Operating Temperature: -20 ° ~ 75 ° C
Storage Temperature: -20 ° ~ 75 ° C
Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 10% ~ 95%, non-condensing
Working Altitude: 3000 m (10,000 ft)
Storage Altitude: 3,000 m (10,000 ft)

RadiationCE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B
SafetyCE Mark ,commercial
CE/LVD EN60950
Warranty1 year warranty



Ordering Information

ModelDescription
LNK-2024-SFPEntry-level Industrial Ethernet Switch: 24 x 10/100Base-T(x) + 2x1000M SFP port (Combo) uplink + 2x10/100/1000M RJ45 TP port (Combo) uplink, SFP Slot, excl. SFP module, standalone,AC100～240V Built-in Power Supply

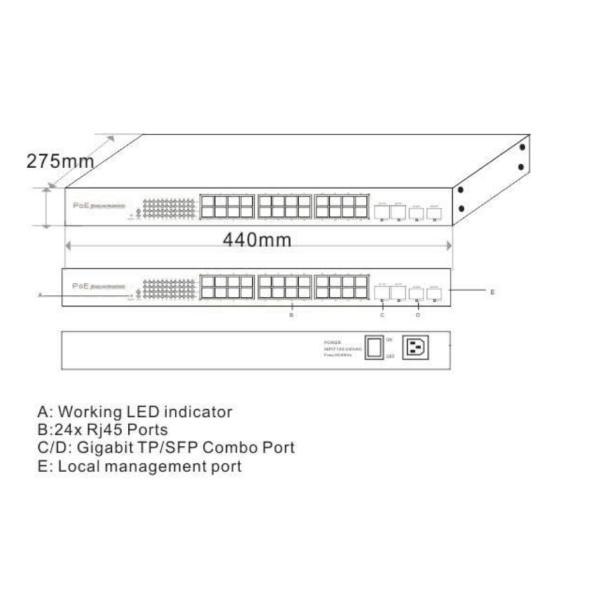

Dimension

24 Port 10 / 100M Industrial Ethernet Switch Din Rail Mount With 2 Gigabit TP / SFP Combo Ports

24 Port 10 / 100M Industrial Ethernet Switch Din Rail Mount With 2 Gigabit TP / SFP Combo Ports
