Specifications
Brand Name :
E-link
Model Number :
LNK-UVGA-KVM
Certification :
CE/FCC/Rohs
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000pcs Per Month
Delivery Time :
4-6 days
Packaging Details :
Standard export package
Cable :
Cat5e/6 Cable
Video Support :
1080P
Distance :
200m
USB port :
2
Frequency Response :
DC DC To 8MHz
Power :
12-24VDC
Description

Support USB Mouse and Keyboard VGA Extender over Rj45 cable

Model: LNK-UVGA-KVM

Overview

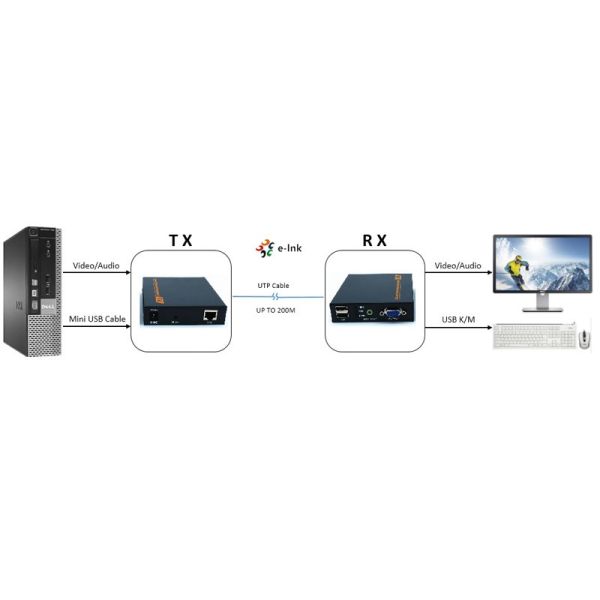

LNK-UVGA-KVM Extender could transmission high-definition video long distance through a single cable , while support for USB keyboard and mouse transmission, external independent audio and other functions, can adapt to a variety of complex applications. The device has a superior image processing and transmission capacity, so that the signal transmission more smooth and stable, it is a good solution with a reliable, high-performance, efficient VGA, keyboard and mouse signals to extend the way.

Features

  • Transmit VGA video and audio over long distances through the cable, up to 200 meters;
  • The highest resolution HD video signals up to 1080P @ 60Hz;
  • Compliance with VGA standard protocol;
  • Support for external one-way analog stereo audio signal transmission;
  • Support USB keyboard and mouse transmission;
  • It can automatically identify and configure a variety of display modes;
  • Built-in automatic equalization system, the picture is smooth, clear and stable;
  • Built-in ESD Protection Circuit, comprehensive protection system security;
  • Easy to install, plug and play, no need to set;

Technical Indexes

Parameter Description
Video Signal Type VGA
BW 380MHz
Resolution

1024X768 @ 60fps

1280X720@ 60fps

1280X800@ 60fps

1280X1024@ 60fps

1440x900 @ 60fps

1660x1200 @ 60fps

1680x1050 @ 60fps

1920x1080 @ 60fps
Impedance 75Ω
Audio Port 3.5mm Stereo audio socket
Type Stereo
K/M PIN USB
Ethernet port Cable Type IEEE 568B
Max transmission distance Cat5e :150m,cat6 :200m
Other Power Adapter: DC 5V/2A
Power dissipation MAX 4W
Temperature Operating:-5°C ~ +70°C
Humidity Operating:5% ~ 90%
Size 102*96*25mm
Warranty 1 year

Application
