Passive POE Power Over Ethernet Injector , 8 Port Power Over Ethernet Devices
Passive POE Power Over Ethernet Injector , 8 Port Power Over Ethernet Devices
Passive POE Power Over Ethernet Injector , 8 Port Power Over Ethernet Devices
Passive POE Power Over Ethernet Injector , 8 Port Power Over Ethernet Devices
Passive POE Power Over Ethernet Injector , 8 Port Power Over Ethernet Devices
Passive POE Power Over Ethernet Injector , 8 Port Power Over Ethernet Devices
Specifications
Brand Name :
E-link
Model Number :
LNK-POE208
Certification :
CE/FCC/Rohs
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000pcs Per Month
Delivery Time :
4-6 days
Packaging Details :
Standard export package
PoE Standard :
IEEE802.3af
Ethernet interface :
16 x Rj45
Power input :
90-240V AC
Transmission rate :
10/100Mbps
Mounting Options :
DIN-Rail / Wall-mount
Dimensions :
95 x 70 x 30 mm
Description

10/100Mbps 8 Port DC 48V 15.4w POE Injector

Model: LNK-POE208

Overview

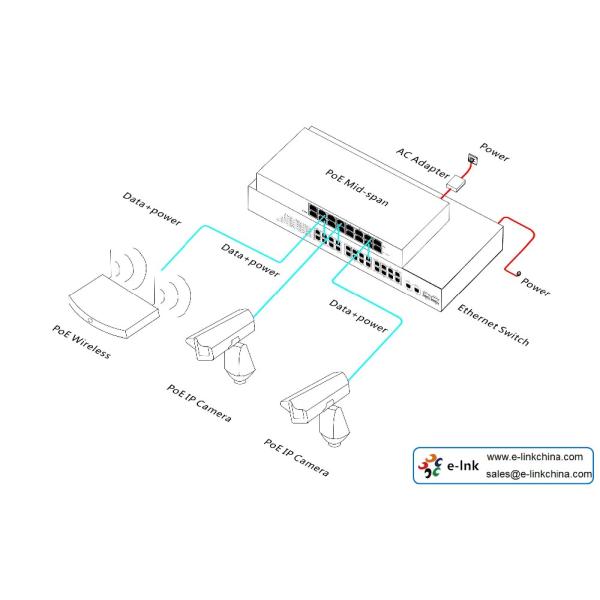

PoE Injector is also called as Power over Ethernet mid-span devices. 8-Port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 8x RJ45 PoE ports for these 8-Port PoE injectors. This mid-span have 8x2 Standard RJ45 network ports, one group of network ports will use for upper Ethernet switches or other network devices, another group of network ports will support POE power supply output with network data output.

These 8-Port PoE injectors provide a simple, economical, high-performance and intelligent way for Ethernet PoE power supply and data communication. It’s ideal choice for those who need the superior quality project because of its simple use, easy to install, superior performance and cost-effective. They can supply power to HD webcam through Cat5 Ethernet cable, in order that make it more flexible for the places difficult to connect to power supply, and provide with more efficient solutions.

Features

  • Supply power to HD network surveillance cameras with Cat5e (PoE)
  • 16x 10/100M RJ45 ports; 1x AC input port; 8x PoE Ports
  • AC input: 90V~264V
  • Compatible with IEEE 802.3af standard(15.4W) , IEEE 802.3at standard(25.4W)
  • Coming with the Ethernet network port and PoE output port, and the power input port with lighting-proof function (meet the secondary lightning protection)
  • Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method
  • No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall
  • Automatic Detection and Protection of Non–standard Ethernet Terminals

Technical Parameters

Parameter Specifications
Features

Conforms to IEEE802.3af standard RJ-45

Conforms to IEEE802.3af standard RJ-45

Data Input Interface 4*RJ-45 10/100Base-TX/

Data Input Interface 4*RJ-45 10/100/1000Base-TX
Output Port Power Cable Included
Data Rate

10/100Mbps

10/100/1000Mbps
Input Power 90-240V AC ,50-60Hz
Output Power

8*15.4W Max IEEE802.3af

8*30W Max IEEE802.3at

Wiring Data provide over pairs 1/2(+) and 3/6(-)
Power over spare pairs 4/5(+) and 7/8(-)
LED Display YES
Operating Temperature 0 to +40°C,
Humidity Max. 95% RH(non-condensing)
Dimension 280X186X44(H×D×W)
Weight 1.5KG

Application

Passive POE Power Over Ethernet Injector , 8 Port Power Over Ethernet Devices

Passive POE Power Over Ethernet Injector , 8 Port Power Over Ethernet Devices
