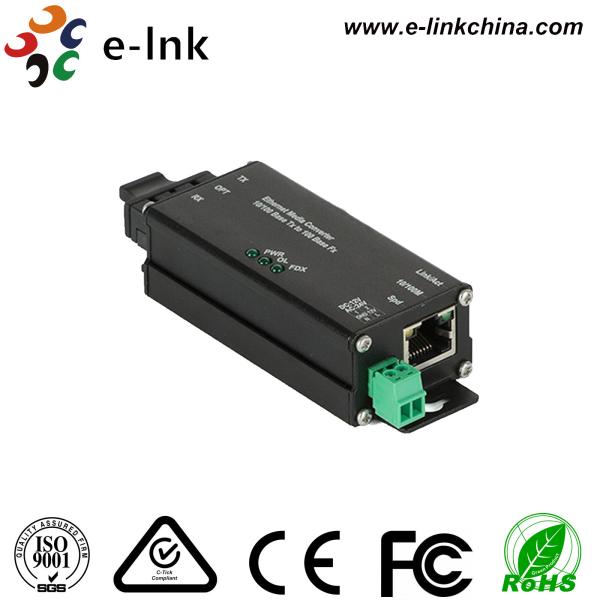

Microtype Hardened Industrial Ethernet Media Converter SC / ST Optical Port
Microtype Hardened Industrial Ethernet Media Converter SC / ST Optical Port
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1100
Certification :
CE/FCC/Rohs
Place of Origin :
Standalone Web-Smart 10G OEO Converter 3R Repeater SFP+ to SFP+ Product Description 10G OEO Converter-3R SFP+-SFP+ 1.jpg10G OEO Converter-3R SFP+-SFP+ 2.jpg Model: LNK-OEO-SS Overview E-link Standalone 10G OEO Converter (3R Repeater) with SFP+ to SFP
MOQ :
1
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
10000 per Month
Delivery Time :
5-8 days
Packaging Details :
Standard export package
Price :
Negotiation
Data Rate :
10/100M
Optical Port :
1 x SC or ST
Input Power :
12VDC or 24VAC
Power Consumption :
2.4W Max
Operating Voltage :
0.2A @ 12VDC
Dimensions :
36.2 x 117 x 24.5 mm
Operating Temperature :
-40°C to 80°C
Casing :
Aluminum Case
Description

Microtype Hardened 10/100M SC Port Industrial Ethernet Media Converter

Model: LNK-IMC1100 Series

Overview

LNK-IMC1100 Series media converter offers an easy and affordable solution for network managers to connect 10/100M Fast Ethernet from UTP to fiber optic cabling. The media converter series uses a high performance auto-sensing exchange chip for full functionality of transfer and exchange, guaranteeing the safety and stability of data transfer. The media converter is available in both single-mode and multi-mode fiber.

This Sleek Microtype design media converter occupies limited space and it's ideal solution for easy installation within most camera housings.

Features

  • Microtype design - fits within most camera housings
  • Converts 10/100Base-TX to 100Base-FX
  • Full/Half duplex, Auto-Negotiation
  • Singlemode or Multimode fiber operation
  • Single or Dual-core fiber with SC or ST connectors
  • Store and forward switching mechanism
  • MDI/MDI-X Auto-Crossover supported
  • Plug-and-Play
  • 12VDC or 24VAC Terminal Block Power inputs
  • Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature
  • Supports Wall Mounting installation

Warranty

  • 5-Year Warranty

Technical Indexes

Ethernet
Standards: IEEE 802.3 10BASE-T
IEEE802.3u 100Base-TX/FX
IEEE802.3x Flow Control
Address table size 2048MAC addresses
Processing Type: Store-and-Forward
Half-duplex and IEEE802.3x Full-duplex flow control
Forward Filter Rate: 10Base-T: 10 / 20Mbps half / full-duplex
100Base-TX/FX: 100 / 200Mbps half / full-duplex
Cabling:

10BASE-T: UTP/STP Cat. 3, 4, 5 or above

100BASE-TX: UTP/STP Cat. 5 or above
Maximum Distance: Cat5 UTP up to 100m
Connector: 1x RJ45
Optical Port: 1 x SC or ST
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: > 300,000 hrs
Electrical and Mechanical
Input Power: 12VDC or 24VAC (Terminal Block)
Power Consumption: 2.4W Max.
Operating Voltage & Max.Current Consumption 0.2A @ 12VDC
LED Indicators
Power: Power Status
10/100TX : Link/Activity, Speed
100FX: Link/Activity
Dimensions (WxDxH): 36.2 x 117 x 24.5 mm
Weight: 0.12Kg (0.22kg including PA)
Casing: Aluminum Case
Mounting Options: Wall-mount / LNK-MR-C10 1U Rack
Regulatory Approvals
ISO9001, CE, FCC, RoHS
FCC part 15,Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Application Diagram:

Microtype Hardened Industrial Ethernet Media Converter SC / ST Optical Port

Microtype Hardened Industrial Ethernet Media Converter SC / ST Optical Port
