1310nm Gigabit Fiber Ethernet Media Converter SFP Slot With DIP Switch
1310nm Gigabit Fiber Ethernet Media Converter SFP Slot With DIP Switch
Specifications
Brand Name :
E-link
Model Number :
LNK-3011SFP
Certification :
CE/FCC/Rohs
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
10000 per Month
Delivery Time :
5-8 days
Packaging Details :
Standard Export package
Data Rate :
10/100/1000Mbps Gigabit Ethernet
Copper Port :
1 x 10/100/1000Base-T port
Fiber Port :
1 x 1000Base-X SFP slots
Name :
multi port fiber media converter
Distance :
20km
Wavelength :
1310
Description

10/100/1000M Gigabit Ethernet Media Converter SFP Slot with DIP Switch

Model: LNK-3011SFP Series

Overview

The LNK-3011SFP is equipped with one 10/100/1000Base-T port and one Gigabit SFP slots to support conversion between 10/100/1000Base-T and 1000Base-X network.

The dual SFP slots make the Ethernet signals connect easily and efficiently by adding single-mode or multi-mode media modules or the combination of both types.

The LNK-3011SFP provides high reliability and flexibility to extend the media transmission distance up to 550m,10km or longer, depending on the optional 1000Base-SX / LX SFP transceiver modules.

Technical Indexes

Parameter

 Specifications

Access mode

 10/100/1000Mbps Gigabit Ethernet
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

Wavelength

 850nm/1310nm/1550nm
Transmission distance

50/125μm or 62.5/125μm multi-mode fiber cable provides up to 220 & 550 meters

9/125μm single-mode cable provides long distance of 10/ 15/ 20/ 30/ 40/ 50/ 60/ 70/ 120km (vary on SFP module)
Port

Copper: 1 x 10/100/1000Base-T port

Fiber: 1 x 1000Base-X SFP slots

Conversion means

 Store and Forward mode or Cut-Through mode

Buffer space

 Built in 128Kb RAM for data buffer

Flow control

Full duplex: flow control;

Half duplex: back pressure

BER

 <19-9

MTBF

 100,000 hours
LED indicator PWR (power supply), 1000M (UTP Port Speed), LNK/ACT FX (Fiber Port Link/Action Status), LNK/ACT TX (UTP Port Link/Action Status), SD (Fiber Signal Status), FDX/COL (UTP Port Full Duplex)

Power supply

 External: AC90~264V/DC100~380V input, 5V1A output

Power consumption

 <40W (the chassis at full load), <2W

Operating temperature

 0~70ºC

Operating humidity

 5%~90%

Maintaining temperature

 -45~80ºC

Maintaining humidity

 5% ~ 90% non-condensing

Features

  • Support inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
  • Use Port 10/100/1000Base-TX (RJ45), 1000Base-SX/LX (SFP slot)
  • Support DIP Switch Function
  • Support full-duplex and half-duplex and its auto-sensed
  • Support auto-sense of MDI/MDI-X, facilitating system commissioning and installation
  • Support the transmission of extra-long VLAN packets
  • Support Quality of Service (QoS) and ensuring the transmission of VoIP packets;
  • Support Jumbo Frame (64-9216 Byte)
  • Support LFP(Link fault pass through) Function

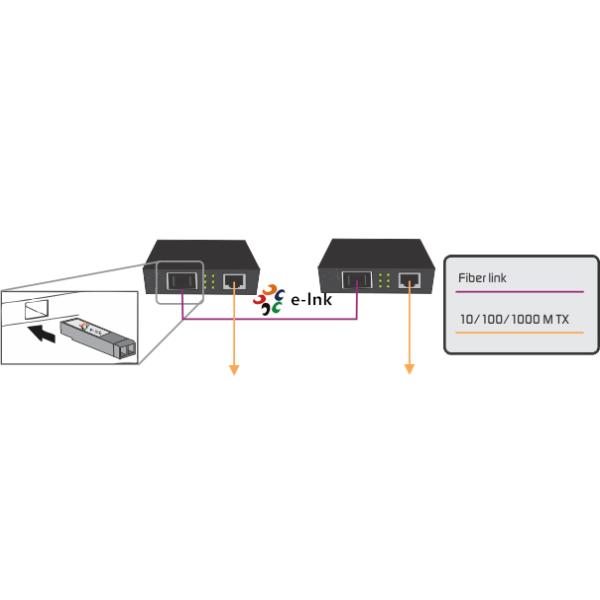

Application

1310nm Gigabit Fiber Ethernet Media Converter SFP Slot With DIP Switch

1310nm Gigabit Fiber Ethernet Media Converter SFP Slot With DIP Switch
