Specifications
Brand Name :
E-link
Model Number :
LNK-SP24W Series
Certification :
RoHS,CE ,FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100000000pcs / month
Packaging Details :
Standard Export Package
DC out :
24V 1A
Power :
25W
Distance :
10BASE-T: cat 5 UTP(≤100m) 100BASE-TX: cat 5 and above UTP(≤100m)
Port :
1 FE(10/100M) POE input+1 Network+1 DC output
Weight :
0.2kg
Product Size :
200mm*22mm*23mm
Storage temperature :
-40°～85°C
Working Temperature :
-20°～55°C
Description

10 / 100M 24V 1A PoE Splitter

Model: LNK-SP24W Series

Overview

LNK-SP24W PoE splitter, develop used for Ethernet power supply application scenarios, device does not support POE input situation; support “IEEE 802.3af” and “IEEE 802.3at” POE power supply; DC output 24V 1A; The POE signal can be separated into network signal and electric power.


PoE splitter, output voltage of 24V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.

Features

· DC output 24V 1A

· 52V: MAX transmission 150M (With full copper low resistance network lines)

· Comply to IEEE802.3af/at

· Power Input:DC16～55V

· Plug＆Play

· Built-in high performance chip and high specification circuit board

· Stable:AKros AS1138, with lightning protection

· RJ45 full shield port

· Full bridge design, non polarity input

Technical Indexes

Model LNK-SP24W
DC out 24V 1A
Power 25W
distance

10BASE-T: cat 5 UTP(≤100m)

100BASE-TX: cat 5 and above UTP(≤100m)
Port 1 FE(10/100M) POE input+1 Network+1 DC output
POE

IEEE POE++/IEEE 802.3af /IEEE802.3at,

IEEE802.1af DTE Power via MDI

Network

protocol

IEEE 802.3i 10BASET；

IEEE 802.3u 100BASETX；

IEEE 802.3x Flow Control
Environmental

Working Temperature:-20°～55°C

Storage temperature:-40°～85°C

Working Humidity: 10%～90% RH non-condensing

Storage Humidity: 5%～90% RH non-condensing
Radiation CE mark,commercial,FCC Part 15 Class B,RoHS
Product Size 200mm*22mm*23mm

Weight

 0.2kg

Ordering Information

Model Description
LNK-SP24W PoE Splitter: 1x10/100M POE input + 1xNetwork +1xDC output, MAX 25 watts, DC output 24V 1A

Application

Support IEEE 802.3af and IEEE 802.3at 1 0 / 100M 24V 1A Power Over Ethernet E Splitter

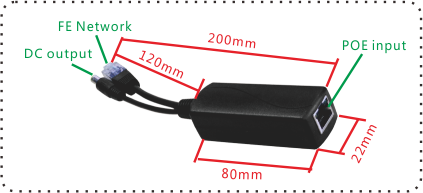

Dimension and size

Support IEEE 802.3af and IEEE 802.3at 1 0 / 100M 24V 1A Power Over Ethernet E Splitter
