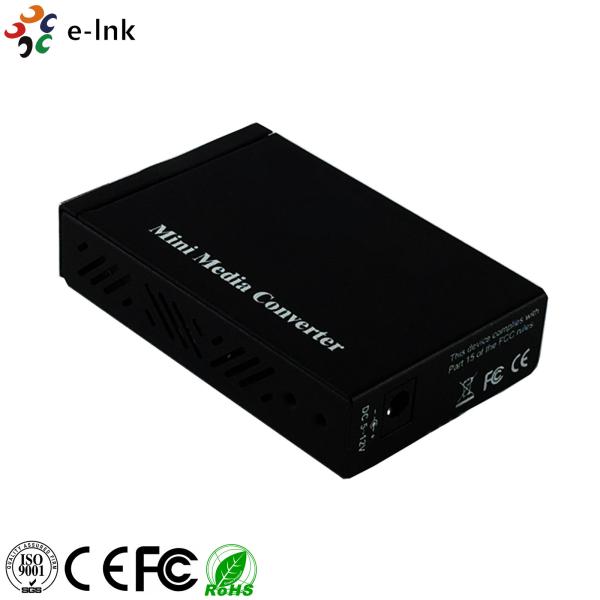

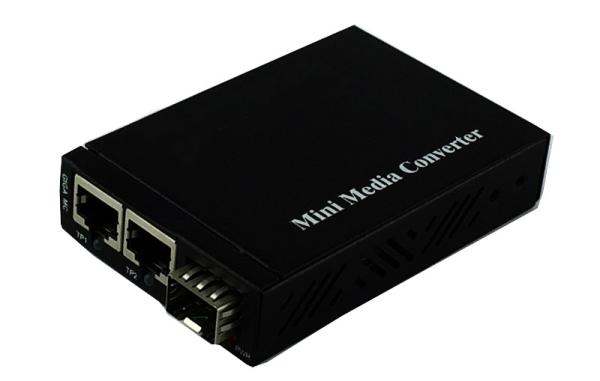

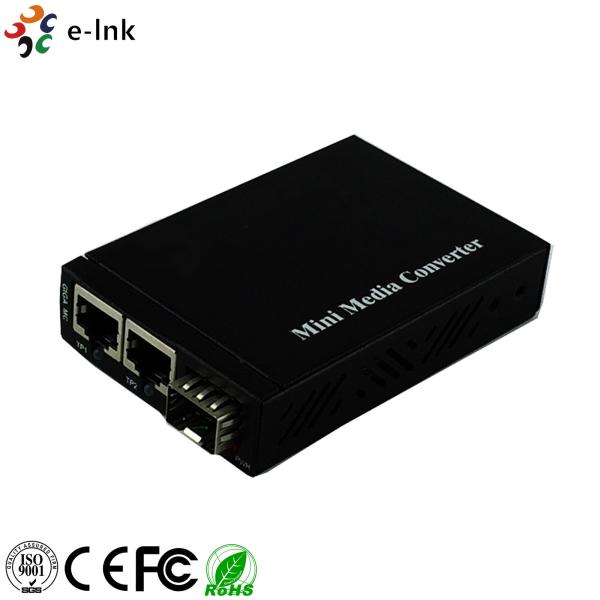

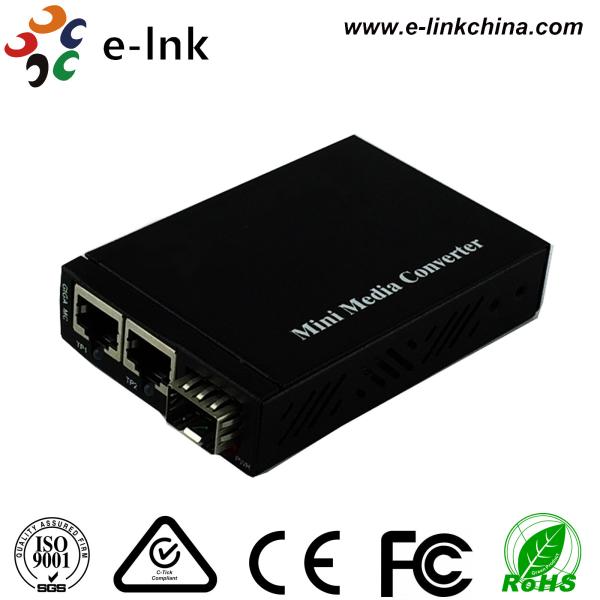

Mini 2x SFP Slot Gigabit Fiber Ethernet Media Converter 10/100/1000Base-T RJ45 to 1x 1000Base-X
Mini 2x SFP Slot Gigabit Fiber Ethernet Media Converter 10/100/1000Base-T RJ45 to 1x 1000Base-X
Mini 2x SFP Slot Gigabit Fiber Ethernet Media Converter 10/100/1000Base-T RJ45 to 1x 1000Base-X
Mini 2x SFP Slot Gigabit Fiber Ethernet Media Converter 10/100/1000Base-T RJ45 to 1x 1000Base-X
Mini 2x SFP Slot Gigabit Fiber Ethernet Media Converter 10/100/1000Base-T RJ45 to 1x 1000Base-X
Mini 2x SFP Slot Gigabit Fiber Ethernet Media Converter 10/100/1000Base-T RJ45 to 1x 1000Base-X
Mini 2x SFP Slot Gigabit Fiber Ethernet Media Converter 10/100/1000Base-T RJ45 to 1x 1000Base-X
Mini 2x SFP Slot Gigabit Fiber Ethernet Media Converter 10/100/1000Base-T RJ45 to 1x 1000Base-X
Specifications
Brand Name :
E-link
Model Number :
LNK-MN1200G-SFP Series
Certification :
CE FCC RoHS
Place of Origin :
Guangdong
MOQ :
1
Price :
USD 35 pcs
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
10000 per mouth
Delivery Time :
5-8
Packaging Details :
Standard export package
Access mode :
10/100/1000Mbps
Wavelength :
850nm/1310nm/1550nm
Input voltage :
DC 5V~12V
Power consume :
<3W
Operating temperature :
0~50ºC
Description

Mini 2x SFP Slot Gigabit Fiber Ethernet Media Converter 10/100/1000Base-T RJ45 to 1x 1000Base-X

Model: LNK-MN1200G-SFP Series

Overview

The mini 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter is fully compliant with IEEE802.3U, IEEE802.3z 1000Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control for full and half duplex operation, etc. The compact size of Mini Media Converter is suitable for space limit installation and Mini size is the ideal media converter for enterprise Plug-and-play,providing store-and-forward data transmission Wide voltage from 5V to 12V.

Features

· 10/100/1000Base-TX UTP to 1000Base-FX fiber media converter

· Support one SFP Fiber port and two RJ-45 ports

· Support IEEE802.3, IEEE802.3Z ,1000Base-TX/FX standards

· SC/LC/ST/FC Optional

· DIP switch to set different configurations

· Compact package size

Application

Mini 2x SFP Slot Gigabit Fiber Ethernet Media Converter 10/100/1000Base-T RJ45 to 1x 1000Base-X

Technical Indexes

Parameter Specifications
Access mode 10/100/1000Mbps
Standard

IEEE802.3,IEEE802.3u,IEEE802.3Z,IEEE802.3x

1000Base-FX or 100Base-FX
Wavelength 850nm/1310nm/1550nm
Transmission distance

Fiber: Depend on SFP Transceiver

Cat-5 twisted pairs: 100m
Conversion means Store and Forward mode or Cut-Through mode
Flow control

Full duplex: flow control;

Half duplex: back pressure
Input voltage DC 5V~12V
Power consume <3W
Operating temperature 0~50ºC
Operating humidity 5%~90%
Maintaining temperature -40~70ºC
Maintaining humidity 5% ~ 90% non-condensing
Dimensions 60mm (W)×20mm (H)×90 mm (L)

Mini 2x SFP Slot Gigabit Fiber Ethernet Media Converter 10/100/1000Base-T RJ45 to 1x 1000Base-X
