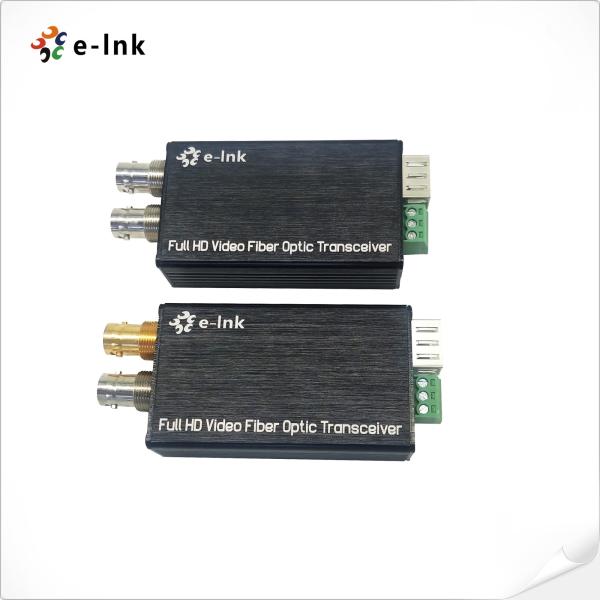

3G SDI Fiber Extender With Tally Or Reverse RS485 LC Fiber Connector 40KM
3G SDI Fiber Extender With Tally Or Reverse RS485 LC Fiber Connector 40KM
3G SDI Fiber Extender With Tally Or Reverse RS485 LC Fiber Connector 40KM
3G SDI Fiber Extender With Tally Or Reverse RS485 LC Fiber Connector 40KM
3G SDI Fiber Extender With Tally Or Reverse RS485 LC Fiber Connector 40KM
3G SDI Fiber Extender With Tally Or Reverse RS485 LC Fiber Connector 40KM
Specifications
Brand Name :
E-link
Model Number :
LNK-M3G-1V1T-40
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1 pair
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
2000 pairs/per month
Delivery Time :
7 working days
Packaging Details :

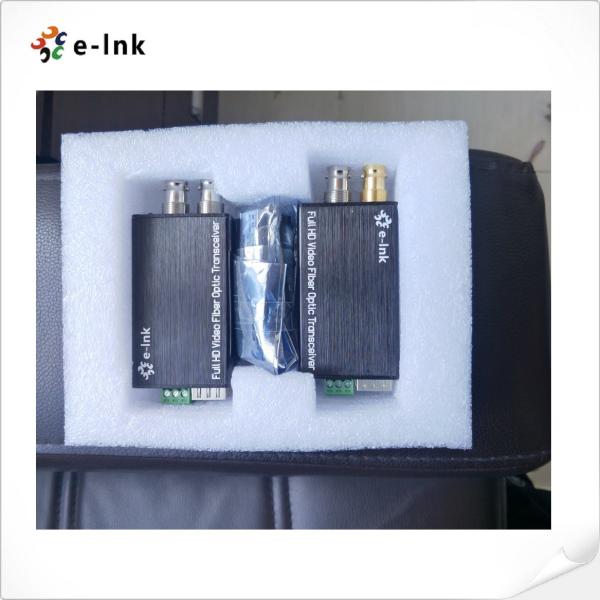

3G SDI Fiber Transmitter Receiver Standard Export Package
Product Name :
3G SDI Fiber Extender with Tally & RS485
SDI Resolution :
1080P/1080i/720P/576P/480P
SDI Format :
SD / HD / 3G-SDI
Data Type :
Tally Or Reverse RS485
Fiber Optic Input Format :
Single-Mode/Multi-Mode
Transmission Distance :
40KM
Gross weight :
1KG/pair
Dimensions (LxWxH) :
80 x 40 x 20 mm
Operating Temperature :
-20℃～+70℃
Warranty :
3 Years
Description

3G SDI Fiber Converter With Tally Or Reverse RS485 LC Fiber Connector 40KM

3G SDI Fiber Extender Advantages

► Directly compatible with HD-SDI camera system
► Long transmission capacity up to 80 kilometers
► Process all pathological modes, fully digital uncompressed broadcast level transmission
► LED status indication for monitoring working conditions
► Super optical dynamic range, freely adjustable
► 1470-1610nm CWDM wavelength selectable

3G SDI Fiber Transmitter Receiver Application

► Animal film recording
► Fiber optic live streaming activities
► High performance (error free) Réseau Sentinelles of military or security departments
► Large video wall system
► Intelligent Traffic Monitoring System
► Industrial monitoring (power, chemistry, steel, petroleum, railways, etc.)
► Military monitoring (warehouses, borders, guards, etc.)
► Stadium (for on-site high-definition video and audio transmission)

HD/3G-SDI Video Over Fiber Extender Technical Indexes

SDI Fiber Optical interface

Fiber interface

Simplex LC

Transmission distance

550m-20Km

Wavelength

1310nm/1550nm

SDI Video

Video interface

BNC

Video input/output impedance

75Ω

Video input/output voltage

Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp

Video Bits Rate

Max 3.2Gb/s

Differential gain (10%～90% APL)

<1%

SDI format support

625/25 PAL

525/29.97 NTSC, 525/23.98 NTSC

720p50, 720p59.94

1080i 23/24/30/50/59.94

1080P 23.98/24/30/50/60

Video SDI standard

270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI)

SMPTE425M3Gb/s Mapping(3G-SDI)

SMPTE424M 3Gb/s serial interface(3G-SDI)

Data

Physical interface

Industrial standard screw terminal

Data type

Tally or Reverse RS485

Frequency/Rate support

Max. 115200bps for RS422

Max. 57600bps for RS485

BER

<10ˉ9

LED Indicator

SDI

SDI video

P/T

Power Supply

Environmental

Working Temperature

-20℃～+70℃

Storage Temperature

-40℃～+80℃

Working Humidity

0~95%

MTBF

≥100000 hours

SDI Optical Fiber Transmitter and Receiver Overview

LNK-M3G-1V Series Mini-type 3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video & Tally signal transmitted via fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal.

3G SDI Fiber Extender With Tally Or Reverse RS485 LC Fiber Connector 40KM

3G SDI Fiber Extender With Tally Or Reverse RS485 LC Fiber Connector 40KM

3G SDI Fiber Extender With Tally Or Reverse RS485 LC Fiber Connector 40KM

Micro 3G-SDI Fiber Transmitter Receiver Ordering Information

Model

Description

LNK-M3G-1V1T-40

Mini-type 3G-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs

LNK-M3G-1V1D-40

Mini-type 3G-SDI to Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs
