Industrial 250m Fiber PoE Switch 4 Port 10 100 1000BASE-T To 2 Port 1000BASE SFP
Industrial 250m Fiber PoE Switch 4 Port 10 100 1000BASE-T To 2 Port 1000BASE SFP
Industrial 250m Fiber PoE Switch 4 Port 10 100 1000BASE-T To 2 Port 1000BASE SFP
Industrial 250m Fiber PoE Switch 4 Port 10 100 1000BASE-T To 2 Port 1000BASE SFP
Specifications
Brand Name :
E-link
Model Number :
LNK-GYT204GP-SFP
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiate
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
2000 pcs/per month
Delivery Time :
7 working days
Packaging Details :
PoE Switch Standard Export Package
Keywords :
Industrial PoE Switch 4-Port PoE
Voltage Range :
DC48V~57V
Power Distance :
250m 20W
Ethernet Port :
4-Port 10/100/1000BASE-TX RJ45
Fiber Port :
2-Port 10/100/1000BASE-FX SFP
Installation :
DIN-Rail or Wall mounts
Description

Industrial 4-Port 10 100 1000BASE-T To 2-Port 1000BASE-SFP 250m Fiber PoE Switch

4-Port 250m PoE Switch Advantages

►Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project
►It will give the speed of 10Mbps at 250meter when connect IP cameras
►4 10/100/1000Base-TX + 2 1000Base-FX
►10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

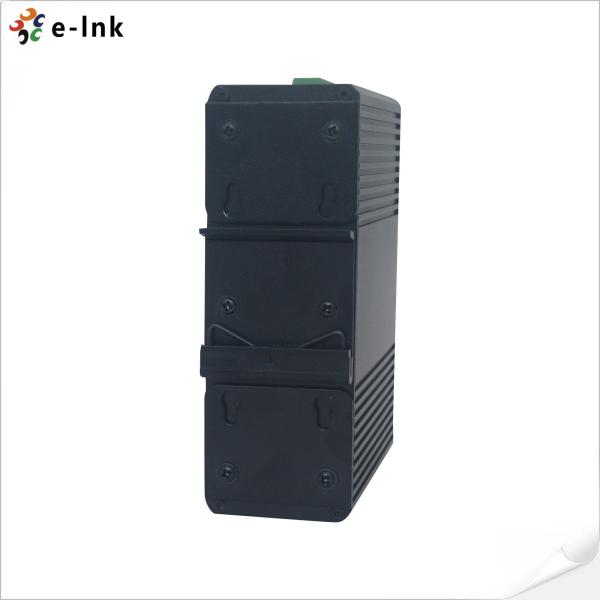

►Supports Wall-mount and DIN-Rail installation

Unmanaged Network Switch Technical Indexes

Power Power Supply Industrial Power Adaptor
Voltage range DC48V~57V
Consumption ＜5W , PoE output < 120W
Ethernet Ethernet Port

1～4 ports:

default mode: 10/100/1000BASE-TX;

CCTV mode:10BASE-T;

SFP:1000BASE-X
Transmission Distance

Downlink port: default mode: 0～100m;

CCTV mode - Cat6: 220m, Cat7: 250m

SFP: depends on SFP module performance
Cable Cat6/7 network cable


Indicator

Status

 Power Power1, Power2
Optical Port FX1, FX2
Ethernet Port 1～4 ports : green light indicates network status, yellow light indicates PoE status
Working Environment Working Temperature -40℃~75℃
Storage Temperature -40℃~85℃

Humidity

(Non-condensing)

 0~95%
Power/Distance
54V		 Distance 100m 150m 200m 250m
Power 26W 24W 23W 20W

Din Rail 1000Mbps Gigabit Ethernet Switch Overview

LNK-GYT204GP-SFP Series is 250m Industrial PoE Switch with 4 ports 10/100/1000Base-TX and 2 port 1000Base-SFP. The Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 1000Base-SFP supports 1 or 2 core Single-mode or Multi-mode fiber. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability.

Industrial 250m Fiber PoE Switch 4 Port 10 100 1000BASE-T To 2 Port 1000BASE SFP

Industrial 250m Fiber PoE Switch 4 Port 10 100 1000BASE-T To 2 Port 1000BASE SFP

Copper to Fiber PoE Switch Ordering Information

Model Description
LNK-GYT204GP-SFP 4-Port 10/100/1000Base-T PoE(up to 250m) + 2-Port 1000Base-X SFP Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options ►120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.
