Aluminum Industrial PoE Switch 8 Port 10 100 1000BASE-T PoE To 2 Port 1000BASE SFP Fiber
Aluminum Industrial PoE Switch 8 Port 10 100 1000BASE-T PoE To 2 Port 1000BASE SFP Fiber
Aluminum Industrial PoE Switch 8 Port 10 100 1000BASE-T PoE To 2 Port 1000BASE SFP Fiber
Aluminum Industrial PoE Switch 8 Port 10 100 1000BASE-T PoE To 2 Port 1000BASE SFP Fiber
Specifications
Brand Name :
E-link
Model Number :
LNK-GYT208GP-SFP
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiate
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
2000 pcs/per month
Delivery Time :
7 working days
Packaging Details :
PoE Switch Standard Export Package
Keywords :
Industrial Ethernet Switch 8-Port PoE
PoE Protocol :
IEEE802.3af/at protocol
Power Distance :
250m 20W
Ethernet Port :
8-Port 10/100/1000BASE-TX RJ45
Fiber Port :
2-Port 10/100/1000BASE-FX SFP
Installation :
DIN-Rail or Wall mounts
Description

Industrial 8-Port 10 100 1000BASE-T PoE To 2-Port 1000BASE-SFP Fiber 250m PoE Switch

8-Port 250m PoE Switch Advantages

►Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project
►It will give the speed of 10Mbps at 250meter when connect IP cameras
►8 10/100/1000Base-TX + 2 1000Base-FX
►Supports IEEE 802.3at PoE+ (30W per port)
►9K Bytes Jumbo Frame
►Redundant Power Inputs

Unmanaged Network Switch Technical Indexes

Power Power Supply Industrial Power Adaptor
Voltage range DC48V~57V
Consumption ＜5W , PoE output < 240W
Ethernet Ethernet Port

1～8 ports:

default mode: 10/100/1000BASE-TX;

CCTV mode:10BASE-T;

SFP:1000BASE-X
Transmission Distance

Downlink port: default mode: 0～100m;

CCTV mode - Cat6: 220m, Cat7: 250m

SFP: depends on SFP module performance
Cable Cat6/7 network cable
PoE Protocol IEEE802.3af/at protocol
PoE Power Supply End-span
Working Environment Working Temperature -40℃~75℃
Storage Temperature -40℃~85℃
Mechanical Dimension
(LxWxH)		 139mm×109mm×50mm
Out Shell Aluminum
Color Black
Weight 0.6kg
Power/Distance
54V		 Distance 100m 150m 200m 250m
Power 26W 24W 23W 20W

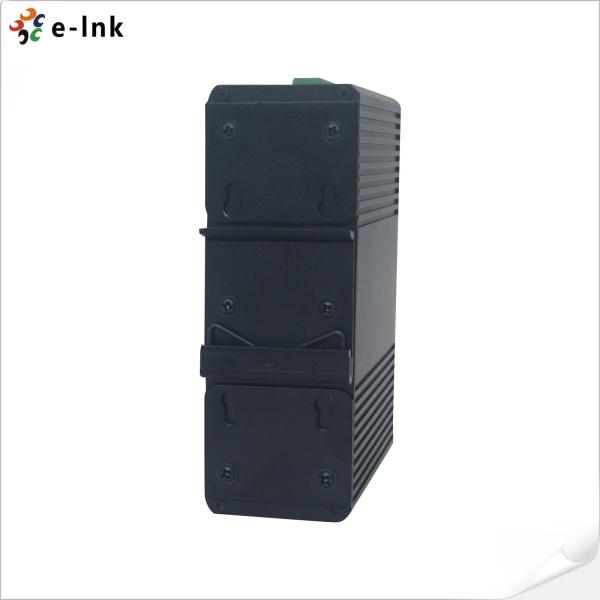

Din Rail 8-port PoE To 2-port SFP Fiber Ethernet Switch Overview

LNK-GYT208GP-SFP Series is 250m Industrial PoE Switch with 8 ports 10/100/1000Base-TX and 2 port 1000Base-SFP. The Switch provides 8 ports PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 1000Base-SFP supports 1 or 2 core Single-mode or Multi-mode fiber.

Aluminum Industrial PoE Switch 8 Port 10 100 1000BASE-T PoE To 2 Port 1000BASE SFP Fiber

Aluminum Industrial PoE Switch 8 Port 10 100 1000BASE-T PoE To 2 Port 1000BASE SFP Fiber

Copper to Fiber 802.3at PoE Switch Ordering Information

Model Description
LNK-GYT208GP-SFP 8-Port 10/100/1000Base-T PoE(up to 250m) + 2-Port 1000Base-X SFP Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options ►240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.
