Outdoor Industrial 16 Port 10/100/1000T Gigabit 802.3at Managed PoE Switch With 4 Port 1000x SFP
Outdoor Industrial 16 Port 10/100/1000T Gigabit 802.3at Managed PoE Switch With 4 Port 1000x SFP
Outdoor Industrial 16 Port 10/100/1000T Gigabit 802.3at Managed PoE Switch With 4 Port 1000x SFP
Outdoor Industrial 16 Port 10/100/1000T Gigabit 802.3at Managed PoE Switch With 4 Port 1000x SFP
Outdoor Industrial 16 Port 10/100/1000T Gigabit 802.3at Managed PoE Switch With 4 Port 1000x SFP
Outdoor Industrial 16 Port 10/100/1000T Gigabit 802.3at Managed PoE Switch With 4 Port 1000x SFP
Specifications
Brand Name :
E-link
Model Number :
ETH-DIMC2416MP
Place of Origin :
China
Certification :
ISO9001, CE, RoHS, FCC
MOQ :
1PCS
Price :
Negotiation
Packaging Details :
Managed PoE Switch Standard Export Package
Delivery Time :
3~5 working days
Payment Terms :
Paypal, TT, Western Union, MoneyGram, Alipay
Supply Ability :
5000pcs per month
Product Name :
Industrial 16 Port POE Switch
Data Rate :
10/100/1000Mbps
Copper Port :
16 Port 10/100/1000T RJ45
Optical Port :
4-Port 1000X SFP
PoE Budget :
Up to 480-watt PoE budget
RS485 Signals :
Data+, Data-, GND
Dimensions (WxDxH) :
155 x 115 x 85 mm
Weight :
1.2KG
Description

PoE Managed Switch Description:

Introduing the Eth-DIMC2416MP Series L2+ managed Ethernet switch. This reliable switch offers 16 Gigabit Ethernet ports and 4 SFP fiber ports. The TP (RJ45) supports speeds of up to 10/100/1000Base-T(X), having both full/half duplex mode as well as auto MDI/MDI-X connection. Furthermore, the 1000Base-X support 1 or 2 core which can use both single or multi-mode fiber.

The product is quite easy to use, making it the perfect choice for integration of networks such as IP Cameras and Wireless Access Points between remote locations and more. With its reliable design and ease of use, this product is a must-have for anyone serious about their networking.

Outdoor Managed PoE Switch Features:

This device supports 16x 10/100/1000Base-T ports and 4x 1000Base-X SFP ports. The 10/100/1000Mbps RJ45 port supports Full/Half-duplex, Auto-negotiation, and Auto MDI/MDIX. It also complies with the IEEE 802.3af/at standards. With the DIP switch, users can make use of the one-key VLAN, one-key Ring Management, PoE Reset, and poE Network with a reach of up to 250m.

Moreover, this device supports connecting USB-C port for easy management where it eliminates the need to access the RS232 serial port. It is a Jumbo Frame with 9K bytes, as well as supporting the IEEE 802.3az Energy Efficient Ethernet (EEE). It is equipped with a IP40 Aluminum Case, and is also able to support DIN-Rail and wall mounting installation.

Outdoor Industrial 16 Port 10/100/1000T Gigabit 802.3at Managed PoE Switch With 4 Port 1000x SFPOutdoor Industrial 16 Port 10/100/1000T Gigabit 802.3at Managed PoE Switch With 4 Port 1000x SFP

Gigabit Managed Switch Technical Parameters:

Forward & Filtering Rate

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)
Backplane bandwidth 110Gbps
Max Packet Length 10K Bytes Jumbo Frame
Address Table Size 8K MAC Addresses
Standard

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet
Power Pin Assignment 4/5(+), 7/8(-)
PoE Budget: Up to 480-watt PoE budget
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Input Power: 48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption: 8W Max.(PoE in Use<480W)
DIP Switch
4-digit DIP switch function DIP Function Settings
SW 1 VLAN ON - Enabled OFF - Disabled
SW 2 Ring Management ON - Enabled OFF - Disabled
SW 3 (to be upgraded) 250m PoE Network ON - Enabled OFF - Disabled
SW 4 (to be upgraded) PoE Reset ON - Enabled OFF - Disabled
Dimensions (WxDxH): 155 x 115 x 85 mm
Weight: 1.2Kg
Casing: Aluminum Case

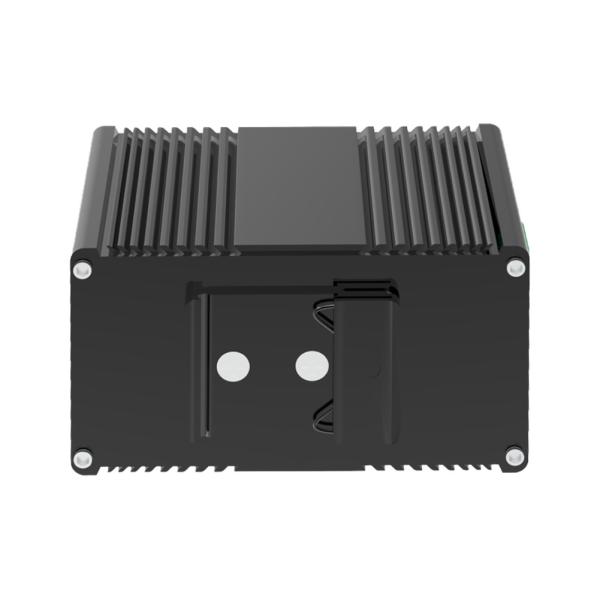

Mounting Options: DIN-Rail mount
Redundancy Protocols Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
PoE Management

Total power limit of PoE power supply

PoE output power allocation
PoE output priority configuration
PoE working status
Scheduling of PoE operation
Diagnostic Maintenance Support port mirroring, Syslog, Ping
Management Function Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT

Support and Services:

Industrial Ethernet POE Switch technical support and service includes:

  • 24/7 technical support via phone or email
  • Support for product installation and setup
  • Software upgrades and patches
  • Remote access for troubleshooting
  • On-site hardware maintenance and repair
  • Replacement parts and accessories

Packing and Shipping:

Packaging and Shipping for Industrial Ethernet POE Switch

The Industrial Ethernet POE Switch is securely packaged and shipped in an appropriate box to ensure its safe arrival at its destination. All components are inspected before shipping to ensure that the product is properly and securely packed.

The package includes the following items:

  • Industrial Ethernet POE Switch
  • Terminal Block
  • Mounting hardware
  • User manual

It can be delivered by ground, air or sea, depending on customer's needs. For international orders, the product is shipped via international courier.

Ordering Information:

Model Description
ETH-DIMC2416MP Industrial L2+ 16-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch
SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed.

► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options ► Power Supply is to be purchased separately.
