Din Rail PoE Switch Description:

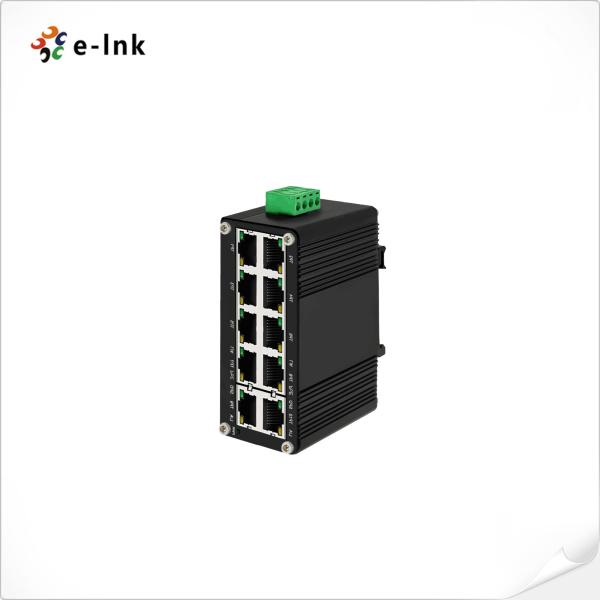

The LNK-IMC010GP is a powerful, yet compact, Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Ethernet Switch, specially built to be installed in a narrow environment. It provides up to a whopping 240-watt 802.3at PoE+ output supplying wire-speed gigabit performance even in the harshest of industrial environments.

The power optimization of the LNK-IMC010GP supports 48~57V DC power input for power redundancy and operational flexibility. It comes with an incredible total power budget of up to 240 watts to provide fuel for different types of PoE applications, where temperatures usually range between -40 to 80 degrees C within an IP40 rugged metal housing.

Compliant with the IEEE 802.3at Power over Ethernet Plus technology, the LNK-IMC010GP offers up to 30 watts of PoE output power, enabling users to simultaneously deploy standard and high powered devices without any software configuration. Its eight 10/100/1000BASE-T ports supply IEEE 802.3at PoE+ in addition to two extra 10/100/1000BASE-T RJ45 copper interface for uplink connection.

10-port PoE Switch Features:

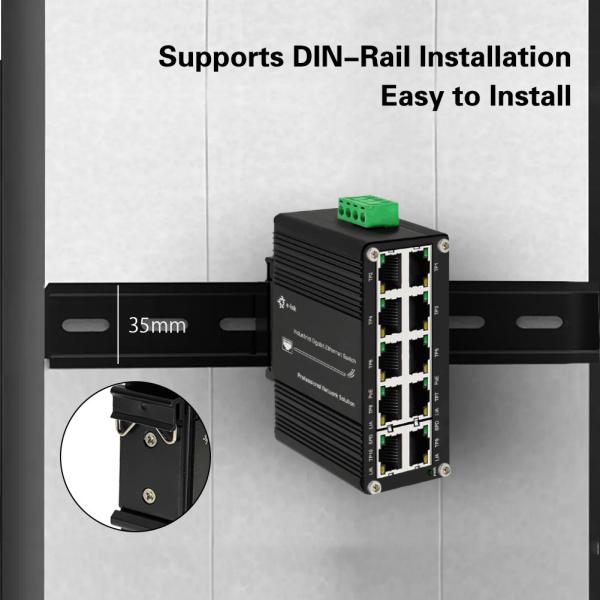

This device carries 10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports, capable of providing up to 8 ports of IEEE 802.3af/at devices powered with a total PoE power budget of up to 240-watt. It supports a 48~57V DC redundant power with reverse polarity protection, making it able to withstand extreme conditions. Additionally, this device comes with an industry standard design including a dustproof IP40 and rugged high-strength metal case. With an operating temperature of -40°C to 80°C (-40°F to 176°F), it is suitable for a variety of harsh environments. It is a handy tool for fabricating a network system, it supports DIN-Rail installation.

Power Ethernet Switch Technical Parameters:

Ethernet supports various IEEE 802.3 standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3x Full-Duplex Flow Control and IEEE 802.3az Energy Efficient Ethernet (EEE). The forwarding and filtering rate is 14,880pps (10Mb) for 10Mbps, 148,800pps (100Mb) for 100Mbps and 1,488,000pps (1000Mb) for 1000Mbps. Its packet buffer is 2Mbits and packet length is 9216bytes. The MAC address table is 4K entries, and the switch fabric is 20Gbps/non-blocking. The switch throughput (packet per second), when with 64bytes, is 14.88Mpps.

For interface, the connector is 10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports and 8 ports with 802.3at PoE+ injector function (Port 1 to 8).In terms of PoE (Power over Ethernet), The standard is IEEE 802.3 af Power over Ethernet/PSE and IEEE 802.3 at Power over Ethernet Plus/PSE, the port is RJ45, and the power pin assignment is 4/5(+), 7/8(-). It supports up to 240-watt PoE budget and maximum 8 class 4 PDs.

The operating temperature is from -40°C to 80°C (-40°F to 176°F), the storage temperature is from -40°C to 85°C (-40°F to 185°F). Its relative humidity range is from 5% to 95%. The MTBF is >100000hrs. The input power range is 48~57VDC and provides reverse polarity protection and redundant power. The power consumption is <250W (Non-PoE<10W) and power input overload is automatic resettable. Its dimension is 95 x 88 x 46mm, weight is 400g and casing is aluminum. The mounting options includes but not limited to DIN-Rail mount. LED indicators: PWR (Power), L/A (Link/Activity), SPD (Data Rate), PoE (Max 30W per port).

30W PoE Switch Applications:

Support and Services:

Industrial Ethernet POE Switch provides technical support and service for its products. We have a team of experienced engineers who are available to help with any technical queries you may have. We provide free telephone support, email support, online live chat support and onsite technical services. Our team is available 24/7 to assist you with your technical needs.

Our technical support team is dedicated to helping you with any technical problems you might have with our Industrial Ethernet POE Switch products. We have a comprehensive knowledge base that contains answers to all common questions and issues. We also have an extensive library of user manuals and product documentation that you can access for troubleshooting.

In addition, our technical team can provide personalized guidance and support to help you get the most out of your Industrial Ethernet POE Switch. We can help you customize the product according to your specific needs, and we offer a variety of software upgrades and customizations. Our technical team is always available to answer any questions you might have.

We have a wide network of certified service partners who can provide onsite technical support and maintenance for Industrial Ethernet POE Switch products. Our service partners have the expertise to diagnose and fix any technical issues you may have with your product. Furthermore, they can help with product installation and configuration, and they can provide upgrade services.

At Industrial Ethernet POE Switch, we are committed to providing excellent customer service and technical support. Our team is dedicated to helping you find the best solution for your needs, and we offer a variety of services to make sure that your experience is as smooth as possible.

Packing and Shipping:

The industrial Ethernet POE switch is packaged in a sturdy cardboard box and sealed with a sticker on the bottom to ensure it is free from damage during shipping.

The box should be clearly labeled with the product name, serial number, and other important information.

The industrial Ethernet POE switch should be shipped in a secure manner with appropriate packing materials to ensure it arrives in perfect condition.
