10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt
Specifications
Brand Name :
E-link
Model Number :
LNK-PSE9501G
Certification :
CE/FCC/Rohs
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
10000 per Month
Delivery Time :
5-8 days
Packaging Details :
Standard export package
Data Rates :
10/100/1000Mbps
Input Power :
100-240V AC @50/60Hz
Output Power :
DC 48-57V, 2A
Dimensions :
147 x 62 x 30mm
Weight :
0.45Kg
Description

10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt

Model: LNK-PSE9501G

Overview

10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt

LNK-PSE9501G 95W – 56V Gigabit PoE Injector is a long-distance driving, fast network performing, strong PoE Output IEEE 802.3bt, 802.3at and 802.3af certified midspan. It is a single port indoor PoE injector that can provide up to 95W based on the IEEE 802.3bt standard.

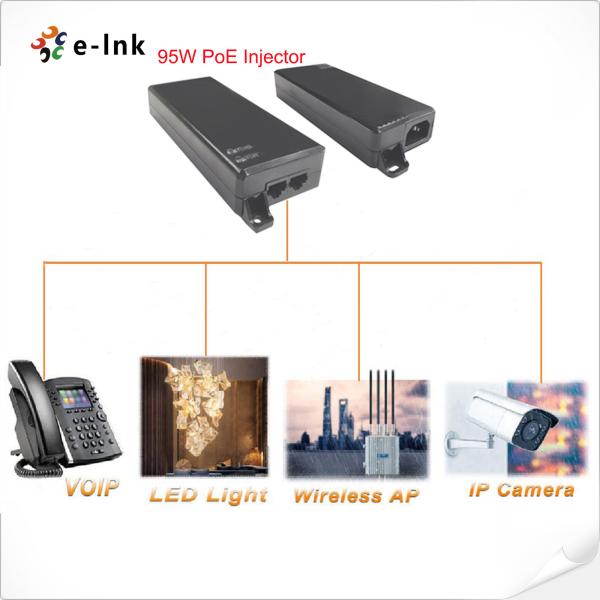

The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high-power Ethernet end terminals with 95W of power. The solutions support IEEE 802.3bt powered devices and are also backward compatible and safe to use with any IEEE 802.3af/at terminal. With plug and-play installation, they are easy and cost effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.

Features

10/100/1000Mbps 95W High Power PoE Injector IEEE 802.3bt

Technical Indexes

Ethernet
Standards: IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
Processing Type: Forward
Half-duplex, Full-duplex
Forward Filter Rate: 1,488,000pps (1000Mbps)
Cabling: 10/100/1000Base-T: Cat5 or above
Maximum Distance:

High Power PoE (95W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)

802.3af / at PoE (15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)
Connector:

LAN: 1 x RJ-45 STP, “Data” Input Port

POE: 1 x RJ-45 STP, “Data + Power” Output Port

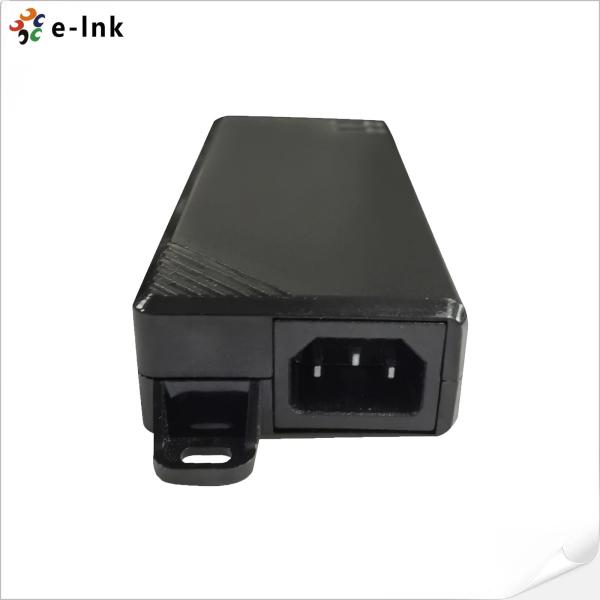

AC Connector: 1 x AC Input power socket, IEC-60320 C13
Environmental
Operating Temperature: -10°C to 50°C (14°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Relative Humidity: 5% to 95% non-condensing
MTBF: >200,000hrs
Electrical and Mechanical
Input Voltage Range: 100-240V AC @50/60Hz, 1.5A max.
Output Voltage: DC 48-57V, 2A
Power Consumption: 95 watts max.
PoE (Power over Ethernet)
Standard: IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt
Port: RJ45
Power Pin Assignment Pin 1,2 / 4,5 (+), Pin 3,6 / 7,8 (-)
PoE Power Output DC 48V-57V/95-watt PoE via 2-pairs
LED Indicators
Power: Power Status
Port: PoE Status
Dimensions (W×D×H): 147 x 62 x 30mm
Weight: 0.45Kg
Casing: Plastic Case
Mounting Options: Desktop/Wall-mount

Ordering Information

Model Description
LNK-PSE9501G 95-watt High Power over Ethernet Injector (10/100/1000Mbps, 4-Pair)
