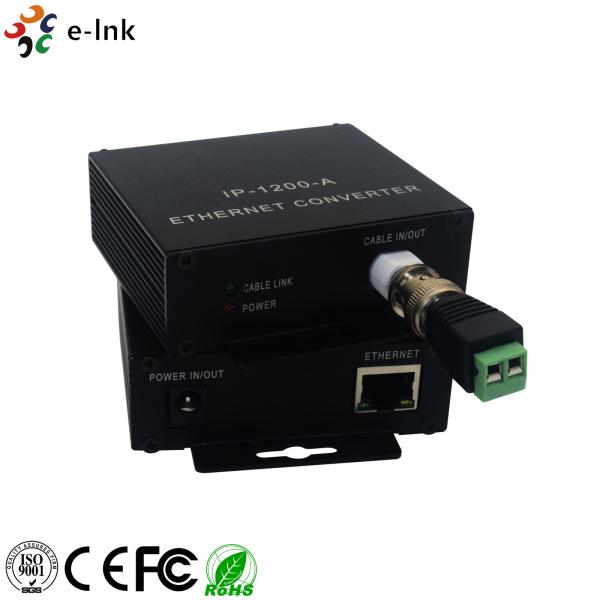

2 Wire Transceiver Ethernet Over Coax Converter With 1200m Transmission Distance
2 Wire Transceiver Ethernet Over Coax Converter With 1200m Transmission Distance
Specifications
Brand Name :
E-link
Model Number :
LNK-IP1200A-2W
Certification :
CE FCC RoHS
Place of Origin :
Guangdong
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1000pair per mouth
Delivery Time :
5-8 days
Packaging Details :
standard exxport package
Product name :
Ethernet over 2-Wire Transceiver
Description

Model: LNK-IP1200A-2W Series

Overview

The LNK-IP1200A-2W Ethernet over 2-wire Transceiver is a new designed Ethernet Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing 2-wire cable, and able to live transmit Power + Network date signal, the Max distance is up to 1200M(Power: 300M). It has excellent lightning protection and Anti-interference. Inbuilt Industry level intelligent auto-monitoring module (this function is optional), this function can make the device intelligent detect circuit individually, all time automatically detect network communication link exceptional situation. If any link is abnormal, it make the device recover to link the communication automatically, ensure the network communication link data transmission stably. Really realize never loss network connection, never crash industry network transmission. Guarantee the security of surveillance zone. These series products are widely used in CCTV surveillance and remote network extension.

Features

  • Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m
  • Transmission Media: 2-wire cable
  • Input Voltage: DC12V~80V (POE: DC44V~58V)
  • Support Power over 2-Wire & Power over Ethernet at same time
  • Operation: Use the existing network, easy to install, Plug & Play. Convenient and efficient
  • Code Standard: abide by IEEE802.3 10/100 base-TX Ethernet standard protocol
  • Advanced 128-bit AES encrypted transmission and PoE+ power technology
  • Excellent Protection: Built-in transient protection; industrial temperature range.
  • Excellent lightning protection and strongly Anti-interference, surge protection.

Technical Indexes

Technology Standard

HomePlug AV

IEEE802.3 10/100 Ethernet (100Mbps)

IEEE802.3U Fast Ethernet
Encryption Algorithm Algorithm 128-bit AES
Power Supply mode Power adapter
Voltage range DC12V~80V (PoE: DC44V~58V)
Consumption <2W
Ethernet Interface Port RJ45
Signal Type 10/100Base-Tx
Distance 100M (Max)
2-Wire Connector Port 2-Pin Terminal
Transmission rate 80Mbps TCP, 90Mbps UDP
Distance 1200M (Max)
Power Indicator LED Status Indicators RED (Power On: keep lighting; Power Off: lighting off)
Cable Indicator Coax Link indicator GREEN (Flicker: signal transmission)
RJ45 Indicator PoE indicator YELLOW (PoE on: keep lighting; Power off: lighting off)
Network indicator GREEN (Link: keep lighting; Signal transmission: Flicker)
Signal and Connector Ethernet 1xRJ45
2-Wire 1x2-Pin Terminal
Transmitting Signal Fast Ethernet
Transmission Distance Without PoE 1200m
With PoE 300m
Protection Surge Protection for Transmission Channel 2KV(differential mode) 4KV(common mode)
Standard: IEC61000-4-5
Electrostatic Protection for whole device Contact discharge level 3
1b air discharge level 3
Standard: IEC61000-4-2
Working environment Working temperature 0～55℃
Storage temperature -20～70℃
Relative Humidity 0～95%(no condensation)
Mechanical Dimension (W×H×D) 78mm×70mm×21mm
Weight 0.15KG
Material Metal
Color Black

Ordering Information:

LNK-IP1200A-2W Ethernet over 2-Wire Transceiver, 1200m transmission distance, including Master and Slave, not including power supply adapter
LNK-IP1200A-2WP Ethernet over 2-Wire Transceiver with PoE+, 300m transmission distance, including Master and Slave, not including power supply adapter

2 Wire Transceiver Ethernet Over Coax Converter With 1200m Transmission Distance

2 Wire Transceiver Ethernet Over Coax Converter With 1200m Transmission Distance

2 Wire Transceiver Ethernet Over Coax Converter With 1200m Transmission Distance
