Specifications
Brand Name :
E-LINK
Model Number :
LNK-EPON-N01 Series
Certification :
RoHS,CE,FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PayPal
Supply Ability :
100000
Delivery Time :
5
Packaging Details :
EPON ONU, Standard Export Package
Upstream PON interface :
1 EPON interface, SC single-mode/single-fibre
Wavelength :
Tx 1310nm, Rx 1490nm
Farthest distance :
20km between OLT and ONU
Optical interface :
SC/UPC connector
DC power supply :
+12V, external AC-DC power adaptor
Chipset :
zte chipset
Net weight :
0.24Kg
Description

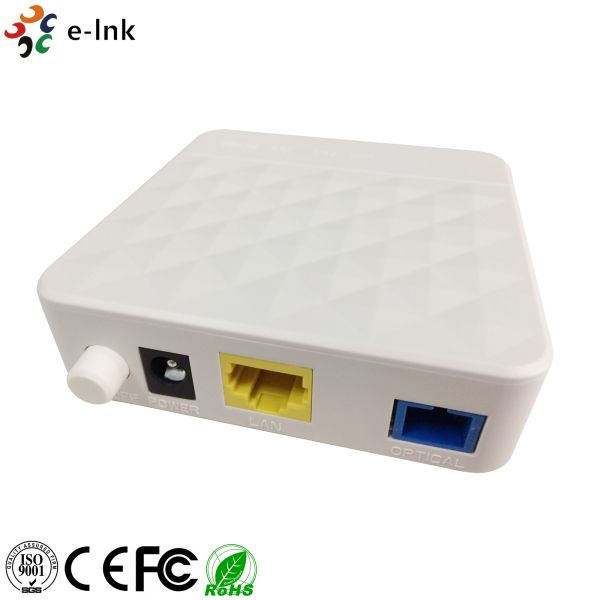

1-Port Gigabit LAN EPON ONU

Model: LNK-EPON-N01 Series

Overview

E-link mini EPON ONU terminal device , which applies to pure broadband access.It adopts mini-type compact structure design with high-integration and can provide 1 GE(RJ45)interfaces.

Supports the technology of layer 2 Ethernet switch and it’s easy to maintenance and manage.It can be applied to FTTH/FTTP access application for resident and business users.and it is fully compliant to technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V3.1).

Technical Indexes

Technical items Description
Optical property
Upstream PON interface

1 EPON interface, SC single-mode/single-fibre,

symmetric 1.25 Gbps
Wavelength Tx 1310nm, Rx 1490nm
Optical output power -1~+4dBm
Receiving sensitivity <-26dBm
Farthest distance 20km between OLT and ONU
Optical interface SC/UPC connector
Downstream LAN interface

1*10/100/1000Mbps auto adaptive Ethernet interfaces,

Full Duplex/Half Duplex, RJ45 connectors
Layer 2/3 switch Support IEEE802.1Q VLAN
Support speed rate inhibition of broadcast packet at ONU
IEEE 802.3X flow control
Support 16 multicast addresses at each LAN port
Security strategy

Support AES-128,data encryption for both upstream

and downstream

Support dynamic update of key
Management maintenance Centralized OLT management based on OAM, WEB, CLI, Upgrade software remotely
Hardware information
Indicators

4 indicators, for status of power supply, PON port and 1

Giga-Ethernet port.
DC power supply +12V, external AC-DC power adaptor
Chipset zte chipset
Power switch 1
Power consumption ≤2.5W
Operating condition Operating temp: -5~+55℃
Operating humidity:10~90%(non-condensed)
Storing condition Storing temp: -30~+60℃
Storing humidity:10~90%(non-condensed)
Dimension 83mm*83mm*25mm(length*width*height)
Net weight 0.24Kg

Features

  • Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
  • Support triple churning encryption request
  • Support DBA reporting mechanism request
  • Support OAM remote configuration maintenance function
  • Support the remote upgrade and download
  • Support status detection and fault report
  • Support to configure the work mode at the user port.
  • Support data encryption and decryption
  • Support 802.1Q VLAN
  • Support rich QinQ VLAN functions and IGMP Snooping
  • Support traffic rule to modify the related priority.
  • Support LED indication
  • Support to restore the factory settings
  • Support the remote reset and reboot
  • Support dying gasp outage alarm
  • Fully compatibility with OLT based=on=Broadcom/PMC/Cortina chipset.

Ordering Information:

Product name Product description
LNK-EPON-N01 EPON ONU 1*SC SM 20KM Tx1310nm,Rx1490nm,1*10/100/1000Base-T,12VDC

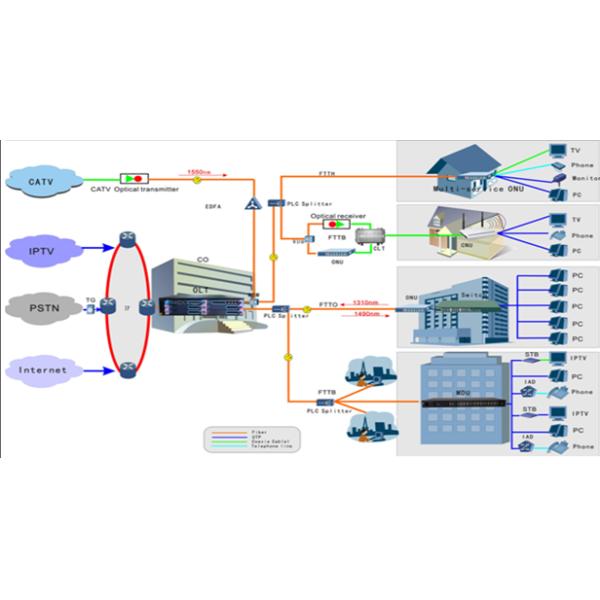

Application:

Single Port Ethernet Fiber Media Converter Gigabit LAN EPON ONU SC/UPC Connector

Dimension

Single Port Ethernet Fiber Media Converter Gigabit LAN EPON ONU SC/UPC Connector

Single Port Ethernet Fiber Media Converter Gigabit LAN EPON ONU SC/UPC Connector

Single Port Ethernet Fiber Media Converter Gigabit LAN EPON ONU SC/UPC Connector
