Specifications
Brand Name :
E-link
Model Number :
LNK-M12G-1V1R-20
Certification :
CE FCC RoHS
Place of Origin :
Guangdong
MOQ :
1 pair
Price :
US$339-359/pair
Payment Terms :
Western Union, MoneyGram, T/T, PayPal
Supply Ability :
1000pcs/Month
Delivery Time :
3-7 working days
Packaging Details :
Standard export package
Item Name :
Mini Converter Optical Fiber 12G-SDI
Input :
1 x 12G-SDI on BNC
Output 1 :
1 x LC optical fiber
Output 2 :
1 x 12G-SDI loop-out on BNC
Description

Mini Converter Optical Fiber 12G-SDI with Reverse RS485 and loop out

Single Mode Fiber LC Connector 20KM

Mini Converter Optical Fiber 12G-SDI with Reverse RS485 and loop out Single Mode Fiber LC Connector 20KM

Model: LNK-M12G-1V Series

Overview

LNK-M12G-1V Series Mini-type 12G-SDI Fiber Converter supports 1-channel 12G Video (audio embedded) & Tally signal(or Backward RS485) transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.

Mini Converter Optical Fiber 12G-SDI with Reverse RS485 and loop out Single Mode Fiber LC Connector 20KM

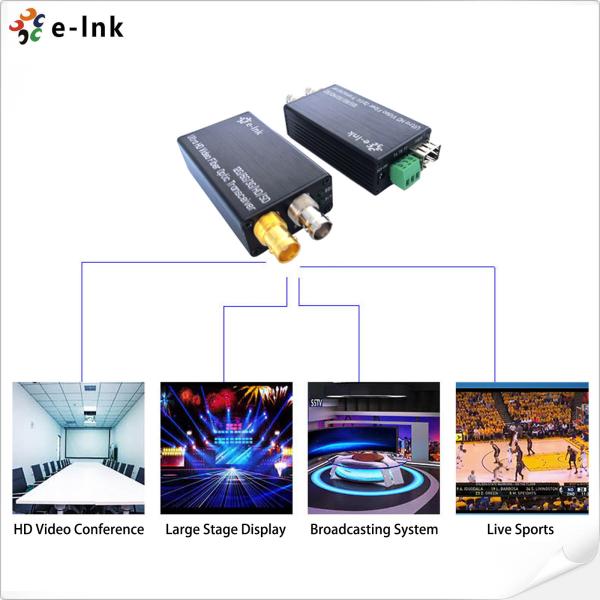

Application

  • UHDTV/4K/8K/HDTV/SDTV Video
  • Digital Video Processing and Editing
  • SMPTE-Compatible Serial Digital Interface
  • Animal films recording;
  • Live events broadcast over fiber
  • High performance(error-free) surveillance networks in Army or security;
  • Intelligent Traffic Monitoring System
  • Industrial monitoring (Electricity, Chemistry, Steel, Oil, Railway & etc)
  • Military Monitoring (Warehouse, Border, Guards,etc)
  • Stadium (For LIVE HD video, audio transmission)

Mini Converter Optical Fiber 12G-SDI with Reverse RS485 and loop out Single Mode Fiber LC Connector 20KM

Technical Indexes

Formats Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible Compatible With DVB-ASI and AES10 (MADI)
Input 1 x 12G-SDI on BNC
Output 1 x LC optical fiber
1 x 12G-SDI loop-out on BNC
Supported Resolution HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range 3840*2160@60Hz
Input cable specification ≤70m@12G SDI Belden 1694A
Output cable specification ≤70m@12G SDI Belden 1694A
Data type Backward Tally (optional)
Data type Backward RS485 (optional)
Optical transmission bandwidth 270MHz～12GHz
Power 5-15 VDC
Power Consumption 2 W (Max.)
Dimensions (LxWxH) 80 x 40 x 20 (mm)
Storage Temperature -40℃～80℃
Operating Temperature -40℃～85℃

Ordering Information

Model Description
LNK-M12G-1V1R-20 Mini-type 12G-SDI to Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
