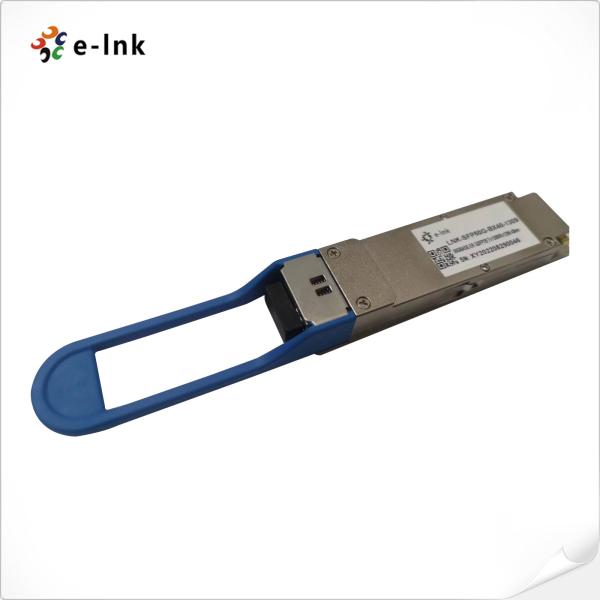

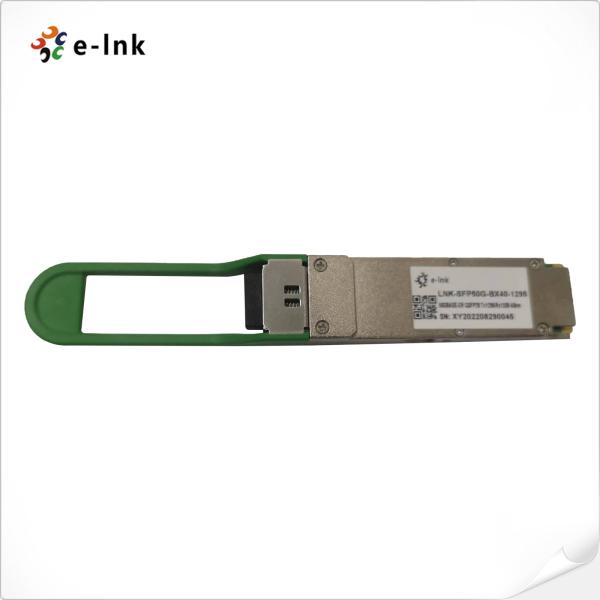

QSFP Bidirectional Fiber Optic Transceiver 50G ER BIDI QSFP28 40KM Module Single LC
QSFP Bidirectional Fiber Optic Transceiver 50G ER BIDI QSFP28 40KM Module Single LC
QSFP Bidirectional Fiber Optic Transceiver 50G ER BIDI QSFP28 40KM Module Single LC
QSFP Bidirectional Fiber Optic Transceiver 50G ER BIDI QSFP28 40KM Module Single LC
Specifications
Brand Name :
E-link
Model Number :
LNK-SFP50G-BX40-1295
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability :
20000pcs/per month
Delivery Time :
7 Working days
Packaging Details :
SFP Fiber Transceiver Standard Export Package
Keywords :
Optical transceiver module
Data Rate :
53.125 Gb/s
Fiber Type :
SMF LC
Transmission distance :
40KM
Power Supply :
+3.3V
Operating Temperature :
0°C ~ 70°C
Description

QSFP Fiber Transceiver 50G ER BIDI QSFP28 40KM Module Single LC
50G QSFP Transceiver Advantages
► Bi-directional application
► QSFP28 MSA package with single LC connector
► EML laser and APD Receiver
► Maximum power consumption 4.5W
► Compliant with QSFP28 Standard and 50GBASE-BR40:
SFF-8665 Revision 1.9, SFF-8636 Revision 2.10a

Transmitter Optical Specifications

Parameter Symbol Min. Typical Max. Unit Notes
Wavelength λA 1292.21 - 1296.59 nm 1
λB 1306.29 - 1310.19 nm 2
Side-mode suppression ratio SMSR 30 - - dB
Average launch power POUT 0.4 - 6.63 dBm
Average launch power of OFF transmitter POUT_OFF - - -15 dBm
Outer Optical Modulation Amplitude (OMAouter) POUTL 3.4 - 7.4 dBm
Extinction ratio ER 6 - - dB
Launch power in OMAouter minus TDECQ OMA-TDECQ 2 - - dBm
Transmitter and dispersion eye closure for PAM4 (TDECQ) TDECQ - - 3.2 dB 3
Transmitter reflectance - - -26 dB

Receiver Optical Specifications

Parameter Symbol Min. Typical Max. Unit Notes
Wavelength λA 1306.29 1310.19 nm 1
λB 1292.21 1296.59 nm 2
Receiver sensitivity (OMAouter) max(−15.1, SECQ − 16.5) dBm 3
Damage Threshold P_damage -2.37 - - dBm
Overload -3.37 - - dBm
Average Receive Power - -17.6 - -3.37 dBm
Receive power (OMAouter) OMA - - -2.6 dBm
Receiver Reflectance RXR - - -26 dB
LOS assert LOSA -30 dBm
LOS de-assert LOSD -20 dBm
LOS hysteresis LOSH 0.5 dB

QSFP Bidirectional Fiber Optic Transceiver 50G ER BIDI QSFP28 40KM Module Single LC

QSFP Bidirectional Fiber Optic Transceiver 50G ER BIDI QSFP28 40KM Module Single LC

Ordering Information

Part Number

Application

Data Rate

Laser Source

Fiber Type

LNK-SFP50G-BX40-1295
LNK-SFP50G-BX40-1309

50GBASE-BR40

53.125 Gb/s

EML Laser

SMF
