1Ch Bidi RS232 DVI Video To Fiber Converter GPIO Over Fiber Extender
1Ch Bidi RS232 DVI Video To Fiber Converter GPIO Over Fiber Extender
1Ch Bidi RS232 DVI Video To Fiber Converter GPIO Over Fiber Extender
1Ch Bidi RS232 DVI Video To Fiber Converter GPIO Over Fiber Extender
1Ch Bidi RS232 DVI Video To Fiber Converter GPIO Over Fiber Extender
1Ch Bidi RS232 DVI Video To Fiber Converter GPIO Over Fiber Extender
1Ch Bidi RS232 DVI Video To Fiber Converter GPIO Over Fiber Extender
1Ch Bidi RS232 DVI Video To Fiber Converter GPIO Over Fiber Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-B-DVI-1DA1GO
Certification :
CE FCC RoHS
Place of Origin :
Guangdong
MOQ :
1
Price :
please contact seller
Payment Terms :
T/T
Supply Ability :
10000
Delivery Time :
5-8 working days
Packaging Details :
Standard export package
Video Standards :
DVI 1.0; HDCP 1.2
Resolution :
1920*1080@60Hz
Power Supply :
DC 12V/1A
Dimension :
154*115*38mm
Product name :
fiber media video converter
Wavelength :
1310/1550nm (Option)
Description

1Ch 1080P Bidi DVI + 1Ch Bidi RS232 + 1Ch Bidi Stereo Audio + GPIO over Fiber Extender

Model: LNK-B-DVI-1DA1GO

Overview

The LNK-B-DVI-1DA1GO Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features

  • Transmits Bi-directional DVI video signals up to 20km over one fiber optic cable;
  • Support video resolution up to 1920*1080P@60Hz;
  • Support external stereo audio bi-directional transmission;
  • Support RS232 signal bi-directional transmission, baud rate self-adaptive;
  • Support general-purpose input/output (GPIO) signal;
  • Compliance with DVI 1.0 and HDCP 1.2 standard;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;
  • Simple to install, plug and play

Application

1Ch Bidi RS232 DVI Video To Fiber Converter GPIO Over Fiber Extender

Technical Indexes

Parameter Description
Video Standards DVI 1.0; HDCP 1.2
Maximum pixel clock 165MHz
Maximum data rate 2.97Gbps
Resolution

1920*1080@60Hz 1920*1080@50Hz

1920*1080@30Hz 1920*1080@25Hz

1920*1080@24Hz

1080I@60Hz 1080I@50Hz

1280*720@60Hz 1280*720@50Hz
Connector DVI-D
Impedance 100Ω
Audio Interface 3.5mm earphone seat
Signal type Stereo
GPIO Interface Industrial terminal
RS232 Interface Industrial terminal
Signal direction Bi-directional
Baud rate Self-adaptive, Max:115200bps
Data bits 8
Optical fiber Interface LC connector
Fiber type Single-mode single fiber
Wavelength Single-mode 1310nm
Interface bandwidth 3Gbps
Transmission distance standard 20km
Other Power supply The power adapter: DC 12V/1A
Power dissipation MAX 6W
Temperature Operating: -5℃ ~ +70℃
Humidity Operating: 5% ~ 90%

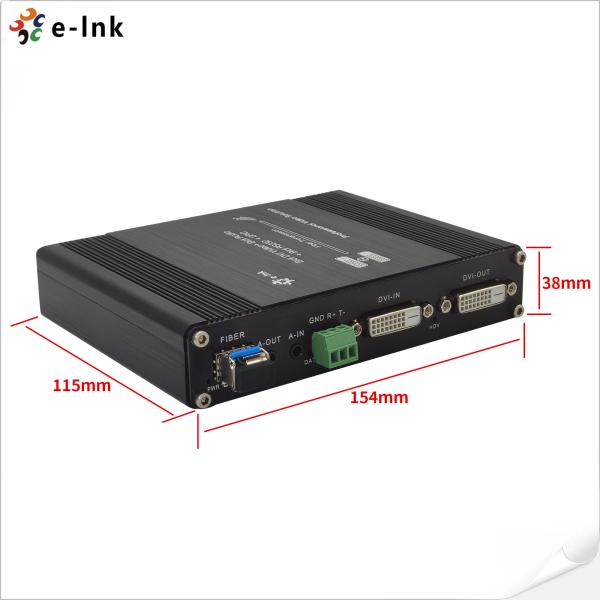

Dimension (LxWxH) 154*115*38mm
The warranty 1-year warranty

1Ch Bidi RS232 DVI Video To Fiber Converter GPIO Over Fiber Extender
