DIN Rail PoE Media Converter 100 / 1000 BASE-TX SFP Ethernet Converter
DIN Rail PoE Media Converter 100 / 1000 BASE-TX SFP Ethernet Converter
DIN Rail PoE Media Converter 100 / 1000 BASE-TX SFP Ethernet Converter
DIN Rail PoE Media Converter 100 / 1000 BASE-TX SFP Ethernet Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC3012P90-SFP
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability :
20000pcs/per month
Delivery Time :
7 Working days
Packaging Details :
POE Fiber Media Converter Standard Export Package
Keywords :
Media converter poe
Connector :
1x RJ45
Optical Port :
1 x SFP 1000Base-X or 100Base-FX
Input Power :
48~57VDC
Weight :
0.25Kg
Casing :
Aluminum Case
Description

PoE Media Converter 10/100/1000BASE-TX To 100/1000BASE-X SFP Ethernet Converter

POE Fiber Media Converter Advantages

► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)

► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant

► Supports Full/Half-duplex, Auto-negotiation

Technical indexes

Max Packet Length:

9K Bytes

Address Table Size

2048K MAC Addresses

Connector:

1x RJ45

Optical Port:

1 x SFP 1000Base-X or 100Base-FX (auto detection)

Input Power:

48~57VDC, 2-pin terminal block

Power Consumption:

95W Max.

LED Indicators:

PWR:

Power Status

PoE:

PD Plug Status

RJ45:

LINK/Activity

SFP:

LINK

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Overview

LNK-IMC3012P90-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC3012P90-SFP supports 10/100/1000Base-T with 90W PoE++ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

DIN Rail PoE Media Converter 100 / 1000 BASE-TX SFP Ethernet Converter

DIN Rail PoE Media Converter 100 / 1000 BASE-TX SFP Ethernet Converter

Ordering Information

Model

Description

LNK-IMC3012P90-SFP

Hardened 10/100/1000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter with 90W PoE++

SFP Options

SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

SFP module is to be purchased separately.

Mounting Options

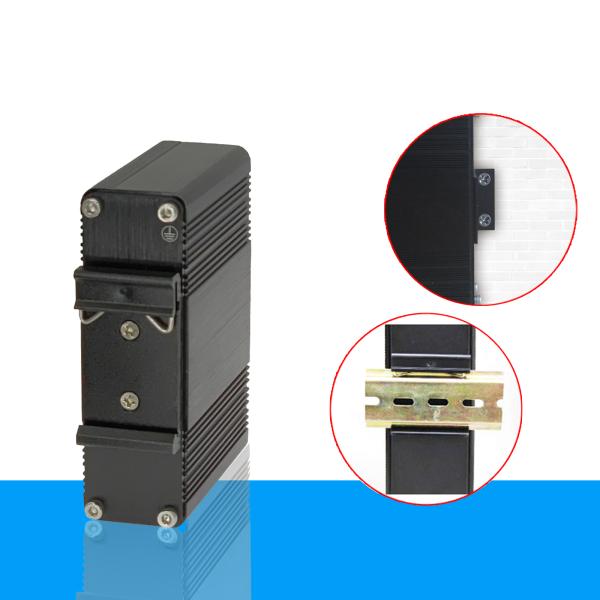

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
