10/100 Mbps Full Duplex Ethernet Over Coax Converter 1200m Coax To Ethernet Converter
10/100 Mbps Full Duplex Ethernet Over Coax Converter 1200m Coax To Ethernet Converter
10/100 Mbps Full Duplex Ethernet Over Coax Converter 1200m Coax To Ethernet Converter
10/100 Mbps Full Duplex Ethernet Over Coax Converter 1200m Coax To Ethernet Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-IP1200A-2WP
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1 pair
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability :
2000 pairs/per month
Delivery Time :
7 days
Packaging Details :
Ethernet Over Coax Converter Standard Export Package
Keywords :
Coax to ethernet converter
Voltage range :
DC12V~80V
Signal Type :
10/100Base-Tx
Distance :
Up to 1200M (Max)
Color :
Black
Material :
Metal
Description

Ethernet Over Coax Converter Ethernet Over 2-Wire PoE Transceiver EOC Extender

EOC Extender Advantages

► Transmit 10/100 Mbps Full Duplex Ethernet up to 1200m

► Support Power over 2-Wire & Power over Ethernet at same time

► Operation: Use the existing network, easy to install, Plug & Play. Convenient and efficient

► Advanced 128-bit AES encrypted transmission and PoE+ power technology

► Excellent lightning protection and strongly Anti-interference, surge protection.

Technical indexes

Ethernet Interface

Port

RJ45

Signal Type

10/100Base-Tx

Distance

100M (Max)

2-Wire Connector

Port

2-Pin Terminal

Distance

1200M (Max)

Power Indicator

LED Status Indicators

RED (Power On: keep lighting; Power Off: lighting off)

RJ45 Indicator

PoE indicator

YELLOW (PoE on: keep lighting; Power off: lighting off)

Network indicator

GREEN (Link: keep lighting; Signal transmission: Flicker)

Signal and Connector

Ethernet

1xRJ45

2-Wire

1x2-Pin Terminal

Transmission Distance

Without PoE

1200m

With PoE

300m

Protection

Surge Protection for Transmission Channel

2KV(differential mode) 4KV(common mode)

Standard: IEC61000-4-5

Working environment

Working temperature

0～55℃

Storage temperature

-20～70℃

Overview

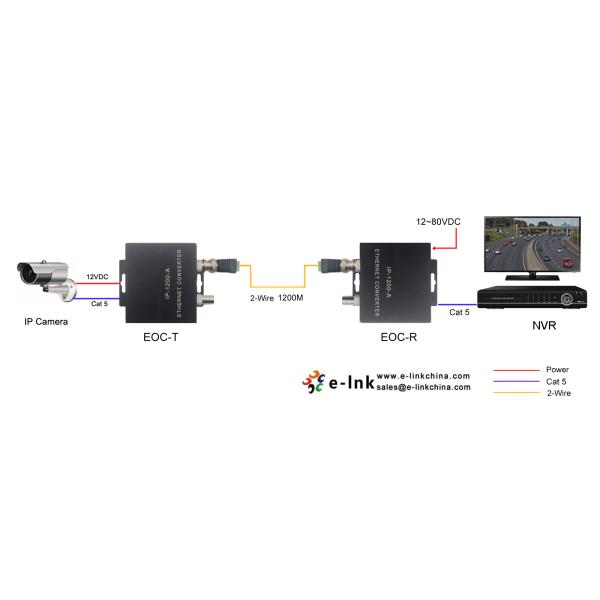

The LNK-IP1200A-2W Ethernet over 2-wire Transceiver is a new designed Ethernet Extender Device. This Device is designed to extend Ethernet Network signal and Power over existing 2-wire cable, and able to live transmit Power + Network date signal, the Max distance is up to 1200M(Power: 300M). It has excellent lightning protection and Anti-interference. Inbuilt Industry level intelligent auto-monitoring module (this function is optional), this function can make the device intelligent detect circuit individually, all time automatically detect network communication link exceptional situation. If any link is abnormal, it make the device recover to link the communication automatically, ensure the network communication link data transmission stably.

10/100 Mbps Full Duplex Ethernet Over Coax Converter 1200m Coax To Ethernet Converter

10/100 Mbps Full Duplex Ethernet Over Coax Converter 1200m Coax To Ethernet Converter

Ordering Information

Model

Description

LNK-IP1200A-2W

Ethernet over 2-Wire Transceiver, 1200m transmission distance, including Master and Slave, not including power supply adapter

LNK-IP1200A-2WP

Ethernet over 2-Wire Transceiver with PoE+, 300m transmission distance, including Master and Slave, not including power supply adapter
