SFP 5VDC HDMI Over Fiber Optic Extender Micro 4K USB Port 80Km
SFP 5VDC HDMI Over Fiber Optic Extender Micro 4K USB Port 80Km
SFP 5VDC HDMI Over Fiber Optic Extender Micro 4K USB Port 80Km
SFP 5VDC HDMI Over Fiber Optic Extender Micro 4K USB Port 80Km
SFP 5VDC HDMI Over Fiber Optic Extender Micro 4K USB Port 80Km
SFP 5VDC HDMI Over Fiber Optic Extender Micro 4K USB Port 80Km
Specifications
Brand Name :
E-link
Model Number :
LNK-MH4K
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1 pair
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
2000 pairs/month
Delivery Time :
7 days
Packaging Details :
HDMI Fiber Optic Converter standard export package
Keywords :
HDMI over fiber extender
Power Supply :
5VDC (USB-C)
Fiber Connector :
SFP / LC
Transmission distance :
300m-80Km
Bandwidth :
10.3Gbps
Casing :
Aluminum Case
Description

HDMI Over Fiber Optic Extender Micro 4K USB Port HDMI Fiber Optic Converter

HDMI Fiber Converter Advantages

► HDMI 1.4a and HCCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC CEC HPD Signal Support

► Supports all modes up to 4K*2K@30Hz Resolution

Technical indexes

Type of Extender Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals HDMI
Video Support 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Transmission Distance 300m (Over OM3 Fiber)
Up to 80km (Over Single-mode Fiber)
Operating Temperature -10 to + 60°C
Storage Temperature -20 to + 85°C
Humidity 5% to 90% RH (non-condensing)
MTBF 100,000 hours

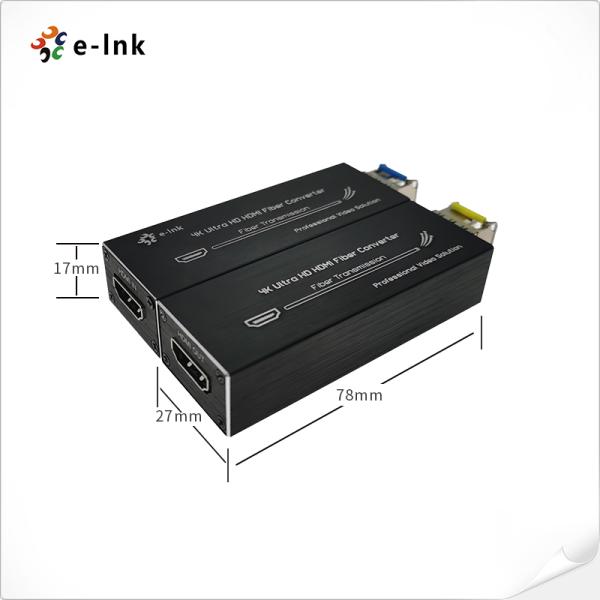

Dimension (WxDxH) 3.07 x 1.06 x 0.69in (78x27x17mm)
Weight 50g / 0.11 lb

Overview

The LNK-MH4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal over optical fiber up to distances of 80km, at a resolution of 4Kx2K. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.

SFP 5VDC HDMI Over Fiber Optic Extender Micro 4K USB Port 80Km

SFP 5VDC HDMI Over Fiber Optic Extender Micro 4K USB Port 80Km

Ordering Information

Model

Description

LNK-MH4K-MM

Micro Mini HDMI Fiber Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, USB Power Input

LNK-MH4K-S20

Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, USB Power Input

LNK-MH4K-S40

Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, USB Power Input

LNK-MH4K-80

Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input

LNK-MH4K-S80

Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input
