Aluminum Case POE Fiber Media Converter 15.4W 1 Port 1000X To 2 Port 10/100/1000B
Aluminum Case POE Fiber Media Converter 15.4W 1 Port 1000X To 2 Port 10/100/1000B
Aluminum Case POE Fiber Media Converter 15.4W 1 Port 1000X To 2 Port 10/100/1000B
Aluminum Case POE Fiber Media Converter 15.4W 1 Port 1000X To 2 Port 10/100/1000B
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1200GP
Certification :
CE,FCC,RoHs
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, MoneyGram, Paypal
Supply Ability :
20000pcs/per month
Delivery Time :
7days
Packaging Details :
POE Fiber Media Converter standard export package
Keywords :
Gigabit media converter
Connector :
2x RJ45
Optical Port :
1 x SC 1000Base-X
Input Power :
12~48VDC, 2-pin terminal block
Dimensions :
95 x 70 x 30 mm
Casing :
Aluminum Case
Description

POE Fiber Media Converter 1-Port 1000X To 2-Port 10/100/1000B Media Converter

POE Fiber Media Converter Features

► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1- Port 1000Base-X SC

Technical indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

Interface

Connector:

2 x RJ45

Optical Port:

1 x SC 1000Base-X

Overview

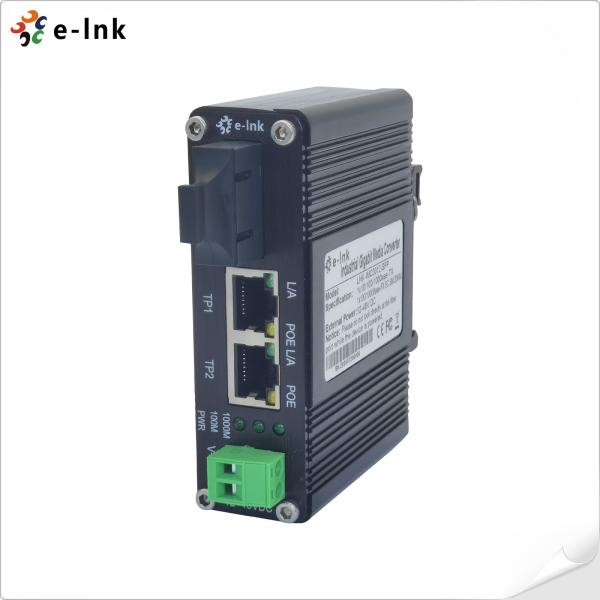

The LNK-IMC1200GP Series provides media conversion between 2-Port 10/100/1000BASE-T and 1-Port 1000BASE-X Fiber. The Ethernet port support 30W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1200GP Series is easy to mount on a DIN rail or in distribution boxes.

Aluminum Case POE Fiber Media Converter 15.4W 1 Port 1000X To 2 Port 10/100/1000B
Aluminum Case POE Fiber Media Converter 15.4W 1 Port 1000X To 2 Port 10/100/1000B

Ordering Information

Model

Description

LNK-IMC1200GP

Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m

LNK-IMC1200GP-20

Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km

LNK-IMC1200GPS-20

Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km

Mounting Options

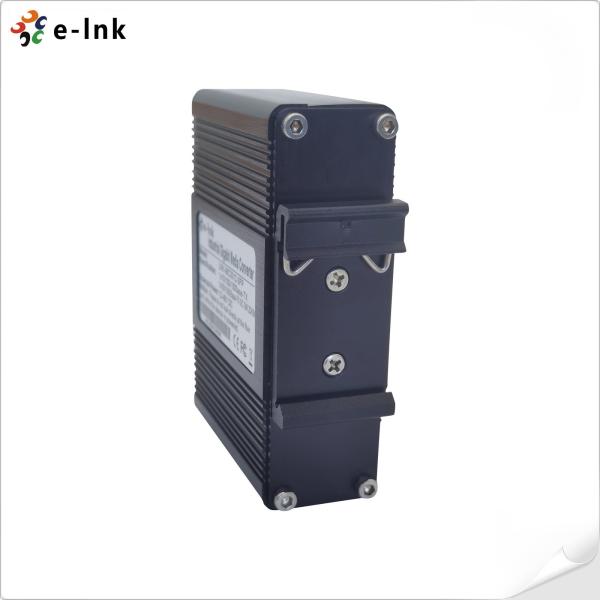

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
