Specifications
Brand Name :
E-link
Model Number :
LNK-KVM-HDMI-1D1BA1GO
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
Standard Export Package
Standards :
HDMI V1.3
Connector :
HDMI
Optical fiber Interface :
LC connector
Operating Temperature :
-5℃ ~ +70℃
Dimensions (WxDxH) :
148*115*28mm
Power dissipation :
MAX 6W
Description

1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender

HDMI Fiber Extender Advantages

► Support general-purpose input/output (GPIO) signal;

► Support HDMI loop out

► Auto EDID can be disabled via DIP switch

► Compliance with HDMI 1.0 and HDCP 1.2 standard;

► High compatibility, can auto-match source and display device;

► Built-in automatic adjustment system, make the image smooth, clear and stable;

► Built-in ESD protection system;

► Simple to install, plug and play

HDMI Fiber Extender Technical Indexes

Parameter Description
Video Standards HDMI V1.3
Maximum pixel clock 165MHz
Maximum data rate 2.97Gbps
Resolution

1920*1080@60Hz 1920*1080@50Hz

1920*1080@30Hz 1920*1080@25Hz

1920*1080@24Hz

1080I@60Hz 1080I@50Hz

1280*720@60Hz 1280*720@50Hz
Connector HDMI
Impedance 100Ω
Audio Interface 3.5mm earphone seat
Signal type Stereo
K/M Interface

To PC: MINI-USB

To keyboard and mouse: USB-A
GPIO Interface Industrial terminal
RS232 Interface Industrial terminal
Signal direction Unidirectional
Baud rate Self-adaptive, Max: 460,800bps
Data bits 8
Optical fiber Fiber type Single-mode single fiber
Wavelength Single-mode 1310nm
Interface bandwidth 3Gbps
Transmission distance standard 20km
Other Power supply The power adapter: DC 12V/1A
The warranty 1-year warranty

Industrial Ethernet Media Converter Overview

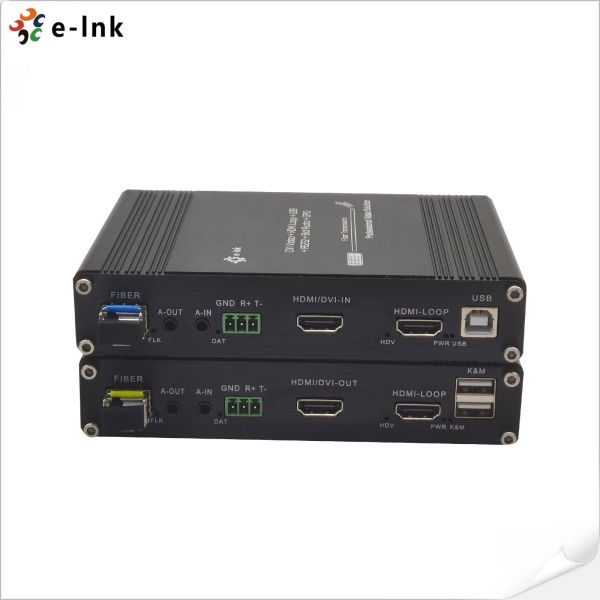

The LNK-KVM-HDMI-1D1BA1GO Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender

Ordering Information

Model Description
LNK-KVM-HDMI-1D1BA1GO 1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM
LNK-HDMI-1D1BA 1Ch 1080P HDMI + 1Ch RS232 + 1Ch Bidi Stereo Audio over Fiber Extender, HDMI Loop Out, SMF, 20KM
