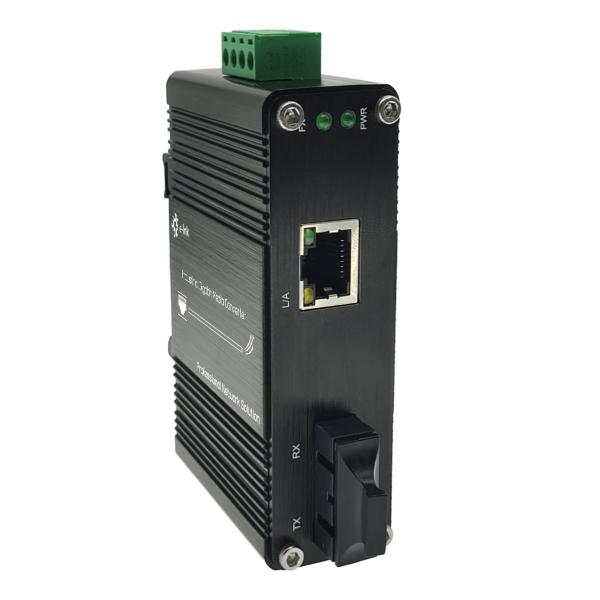

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter
Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter
Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter
Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter
Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter
Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter
Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter
Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter
Specifications
Brand Name :
E-link
Model Number :
The LNK-IMC3012
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
Standard Export Package
Connector :
1 x RJ45
Optical Port :
1 x 1000Base-X SC
Operating Temperature :
-40°C to 75°C (-40°F to 167°F)
Input Power :
12~48VDC, 4-pin terminal block
Power Consumption :
3W Max
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25Kg
Description

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter

Industrial Ethernet Switch Advantages

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SC Port, 1000Base-X

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Extensive LED indicators for network diagnostics

► Supports DIN-Rail & Wall-mount installation

Industrial Ethernet Switch Technical Indexes

Ethernet
Standards: IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type: Store-and-Forward
Forward Filter Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory: 1 Mbit
Max Packet Length: 9K Bytes
Address Table Size 2K MAC Addresses
Electrical and Mechanical
LED Indicators:
PWR: Power Status
L/A: Data LINK Status
SPD: Ethernet Status
100M/1000M: Fiber LINK Status
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Environmental
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs

Industrial Ethernet Switch Overview

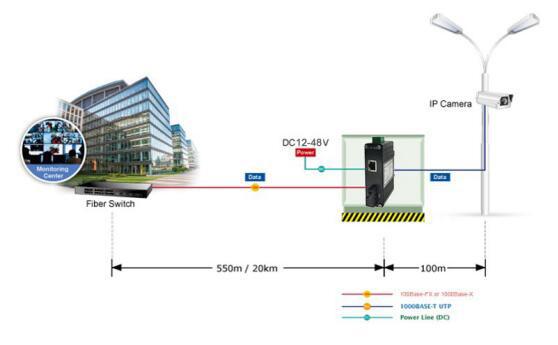

The LNK-IMC3012 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. This product is hardened and features a wide operating temperature range of -40°C to 75°C, along with a ruggedized aluminum housing. Its Ethernet port is compatible with both half-duplex and full-duplex modes. The robust hardware design guarantees that your Ethernet equipment can endure challenging industrial environments.The LNK-IMC3012 Series are easy to mount on a DIN rail or in distribution boxes. This media converter supports both 100M and 1000M on fiber port, that makes it compatible with more devices.

Mini Industrial 10/100/1000Base-T to 1000Base-X Media Converter
Ordering Information

Model Description
LNK-IMC3012 Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-SX, Multi-mode, 550m, 850nm, SC
LNK-IMC3012-20 Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-LX, Single-mode, 20km, 1310nm, SC
LNK-IMC3012-S20 Mini Industrial Media Converter, 10/100/1000Base-T to 1000Base-BX, Single-mode, Single Fiber, 20km, 1310/1550nm, SC
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
