Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Specifications
Brand Name :
E-link
Model Number :
ETH-DIMC2012FM
Certification :
CE, RoHS, FCC, ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
Industrial Standard Export Package
Forward & Filtering Rate: :
148,800pps (100Mbps)/1,488,000pps (1000Mbps)
USB-C :
1 x USB-C (for Management)
Optical Port :
14 x 1000Base-X SFP
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
Input Power :
12~48VDC, Redundant Power(6-pin Terminal Block)
Power Consumption :
8W Max
Dimensions (WxDxH) :
149 x 114 x 50 mm
Weight :
0.55Kg
Description

Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Industrial Ethernet Switch Advantages
► Support 12x1000Base-X SFP + 2x1000Base-X SFP
► DIP Switch supports one-key VLAN, one-key Ring Management

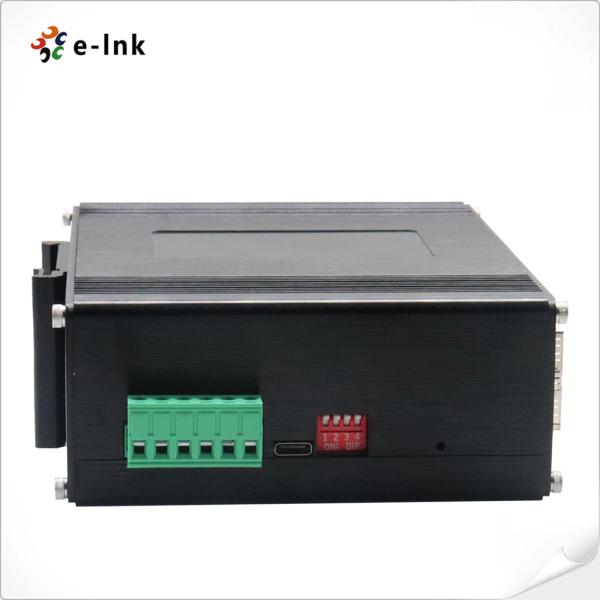

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 10K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
Industrial Ethernet Switch Technical Indexes

Packet Buffer Memory:12M bits
Processing Type:Store-and-Forward
Backplane bandwidth110Gbps
Max Packet Length:10K Bytes Jumbo Frame
Address Table Size:8K MAC Addresses
Interface
Optical Port:14 x 1000Base-X SFP
USB-C:1 x USB-C (for Management)
Environmental
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Relative Humidity:5% to 95% non-condensing
MTBF> 200,000 hrs
Electrical and Mechanical
Input Power:12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:8W Max
Protection:
Power Input Overload:Automatic Resettable
Reverse Polarity:Present
Power:Power Status

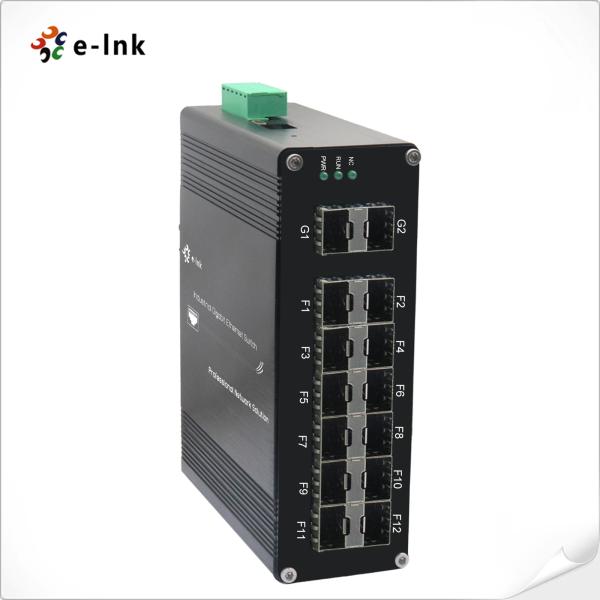

Fiber:100/1000X SFP Port: F1~F12
Fiber:Gigabit SFP Port: G1~G2
Diagnostic MaintenanceSupport port mirroring, Syslog, Ping
Management FunctionSupport CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT

Industrial Ethernet Media Converter Overview
ETH-DIMC2012FM series is an Industrial 14 Port L2+ Managed Gigabit SFP Switch. It comprises of a 12-Port 100/1000Base-X SFP fiber optic interface and 2 extra 1.25G SFP interfaces delivered in an IP40 case with redundant power system, being able to operate under the temperature range from -40 to 80 Degree Celsius, the ETH-DIMC2012FM can be placed in virtually any environment. The ETH-DIMC2012FM offers sophisticated data switching and redundancy from Layer 2 to Layer 4, traffic control for Quality of Service, network access control and authentication, along with Secure Management features to safeguard customers' industrial and automation network connections.
Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Ordering Information

ModelDescription
ETH-DIMC2012FMIndustrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
SFP Options► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options► Default DIN-Rail Bracket installed
Power Options► DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.
