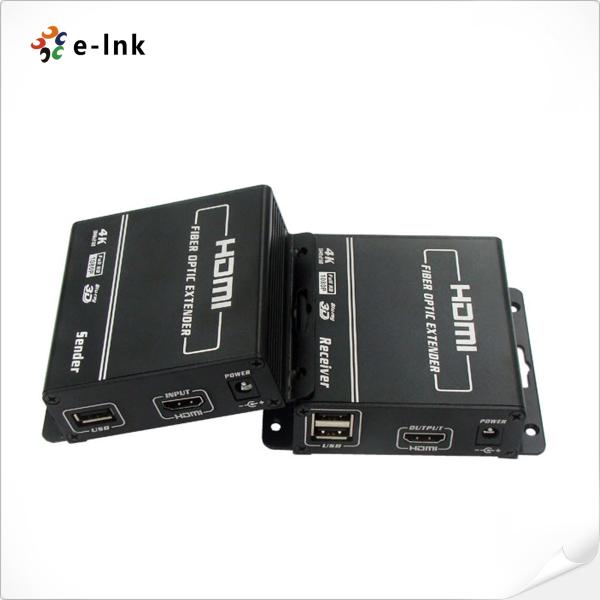

4K HDMI KVM Fiber Optic Extender
4K HDMI KVM Fiber Optic Extender
4K HDMI KVM Fiber Optic Extender
4K HDMI KVM Fiber Optic Extender
4K HDMI KVM Fiber Optic Extender
4K HDMI KVM Fiber Optic Extender
4K HDMI KVM Fiber Optic Extender
4K HDMI KVM Fiber Optic Extender
Specifications
Brand Name :
E-link
Model Number :
LNK-KHX2240
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1 pcs
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability :
1000pcs/month
Delivery Time :
5-12working days
Packaging Details :
Standard Export Package
Compliance :
HDMI v1.4
DVI Input / DVI Output :
1x HDMI Type-A Female connector
Temperature :
Operating: -32° to +122° F. (0° to +50° C)
Power dissipation :
2.5W
Dimension (LxWxH) :
89mm x 104 mm x 28.3 mm
Weight: :
0.5Kg
Description

4K HDMI KVM Fiber Optic Extender

Industrial Ethernet Switch Advantages

► Real Time Transmission

► Supports HDMI bit-rates up to3.4 Gbps/color,10.2 Gbps total

► Support 3D TV and EDID pass-through

► Support USB Keyboard and USB Mouse

► LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™

► Built-in EQ(Receiver) Plug and Play

► Up to 300m distance by OM3 Fiber Optical Cable

► Low RFI / EMI profile for sensitive applications

Industrial Ethernet Switch Technical Indexes

Performance
Compliance HDMI v1.4
Maximum Pixel Clock Frequency 340 MHz
Maximum Video Bit Rate 3.40 Gbps
Supported Color Depth 24-bit
Supported Resolutions

1920x1080/60p,3840x2160/30p, 4096x2160/30p,

3840x2160/60p(YCbCr 420),4096*2160/60P(YCbCr 420)
Digital Audio Support 7.1 channel LPCM, 192 kHz, 24-bit audio capability
Connections
DVI Input / DVI Output 1x HDMI Type-A Female connector
Optical 1x SFP+ port
Cable
Fiber Cable Type / Max. Length 50/125μ OM3-300 Multi-Mode Fiber: ≤ 1,000 ft. (≤ 300 meters)
Extended function
KM Support USB Keyboard x 1 / USB Mouse x1
CEC Support CEC are NOT supported!
DDC Support
EDID Pass-through Support only 300 meters
HDCP Pass-through Support only 300 meters
Power Requirements
External AC Power Adapter Input: 100-240VAC / 50-60Hz 0.2A
Output: 5VDC, 2.0A 5/2.5mm jack
Power Consumption LNK-KHX2240-S: 2.5 watts LNK-KHX2240-R: 3 watts
Warranty
Limited Warranty 2 year warranty

Industrial Ethernet Switch Overview

High Performance —The LNK-KHX2240 series is a high performance 4K HDMI KVM Fiber Optic Extender that transmits high resolution DVI / HDMI signals over extreme distances using 2 cores fiber. This extender supports HDMI v1.4 signals with resolutions up to 4K (4096x2160 / 30p) over cable distances up to 300m.Fiber Optic Extension — The extender set consists of an optical transmitter module that converts the DVI / HDMI signals into light pulses for transmission over a 2 cores fiber. An optical receiver module converts the light pulses back to a DVI / HDMI signal for display on a monitor or projector.

4K HDMI KVM Fiber Optic Extender
Ordering Information

Item Description
LNK-KHX2240-S 4K HDMI KVM Fiber Optic Extender Sender Unit
LNK-KHX2240-R 4K HDMI KVM Fiber Optic Extender Receiver Unit
