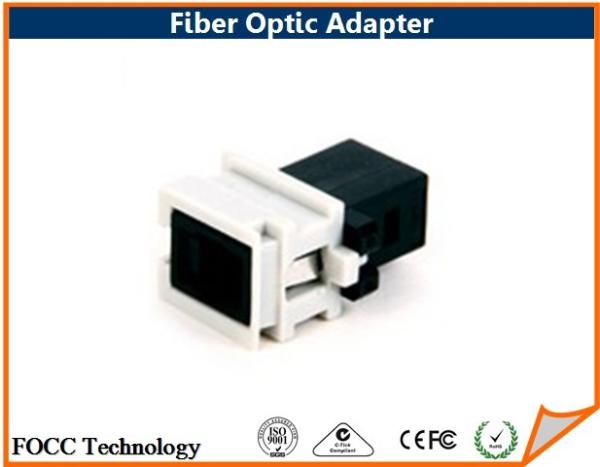

MTRJ to MTRJ Fiber Optic Adapter Polymer Housing SC Footprint In Network
MTRJ to MTRJ Fiber Optic Adapter Polymer Housing SC Footprint In Network
Specifications
Brand Name :
FOCC
Model Number :
FOCC-A017
Certification :
RoHS; CE; ISO9001
Place of Origin :
China
MOQ :
10 Pieces
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
8500 Pieces Of Capacity Per Month
Delivery Time :
Delivery Time 5 - 7 Working Days
Packaging Details :
Box of 12 Individually Bagged Adapters Or Customized Requirements
Sleeves :
Phosphor Bronze; Zirconia Bronze
Housing :
Polymer
Type :
Flanged
Durability :
< 0.1dB Typical change,500 matings
Simplex / Duplex :
Both
Mode :
Singlemode; Multimode
Description

MTRJ to MTRJ Fiber Optic Adapter Polymer Housing SC Footprint In Network

FOCC offering some types of multi-fiber adaptor such as MT-RJ, MU and MPO adaptors. They are suitable for any industrial applications. Its design provides junction between connectors and are widely used in networks, data and telecommunications systems.

Specification

ST

SC; FC

DIN; MU

Material

Zirconia

Withdrawal Force

200gf ~ 600gf

200gf ~ 600gf

100gf ~ 250gf

Insertion Loss

0.1dB Typical or Better

Durability

< 0.2dB Deviation After 1000 Matings

Outer Diameter

3.2 ± 0.02mm

3.2 ± 0.02mm

1.62 ± 0.01mm

Inner Diameter

2.49mm

2.49mm

1.246mm

Length

10.1 ± 0.1mm

11.4±0.1mm

6.8 + 0 /- 0.1mm

Specification

Zirconia Sleeves

Phospor Bronze

Insertion Loss

Typical ≦0.05dB; Max≦0.20dB

Typical ≦ 0.10dB

Durability

< 0.1dB Typical change,500 matings

Note: Zirconia tested with SMF Fiber, Phospor Bronze sleeve tested with MMF Fiber

Features

Ultra low insertion loss;
IEC60B74-14;F04 (JIS C5973);FOCIS-3;TIA/EIA-604-3A;
Telcordia GR-326-4 CORE Compliant;
UL94 V -0 rated plastic housing or metal housing available;
With or without flange options for installation flexibility;
RoHS Compliant.

Applications

Optical distribution frame;

Testing instruments;

Optical fiber communication system interface.

Phosphor Bronze Sleeve Zirconia Bronze​

Shipping By Following Tools Or Customized Methods



FOCC Fiber Optic Adapter Quality





Notes:

Prices and specifications are subject to change without notice, FOCC is not responsible for typographical or photographic errors. Please contact us at focc@fiberfocc.com for detailed inquiry!
