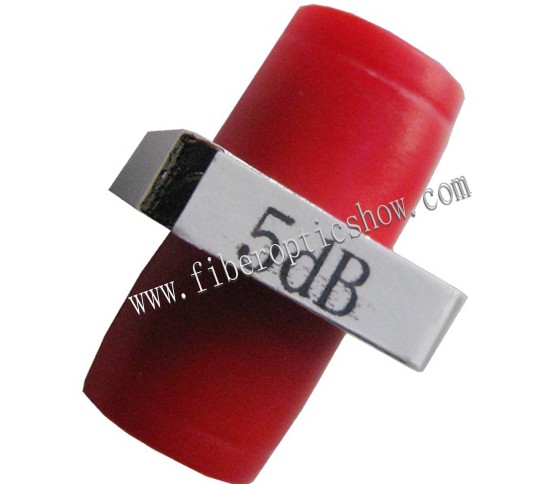

5dB Optical Fiber Optic FC PC Fixed Attenuator Dual Wavelength
5dB Optical Fiber Optic FC PC Fixed Attenuator Dual Wavelength
Specifications
Brand Name :
FOCC
Model Number :
FOCC - ATT004
Certification :
CE, ISO9001, RoHS
Place of Origin :
China
MOQ :
10 Pieces
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Delivery Time :
Lead Time 5 - 7 Working Days
Packaging Details :
Box of 12 Individually Bagged Attenuators With Optional Termination Box
Humidity :
95%RH
Operating Wavelengths :
1310nm, 1550nm
Polish Type :
Ultra Physical Contact ( UPC )
Return Loss :
≥55dB
Optical Input Power :
Max 200nW
Attenuation :
5dB
Description

5dB Optical Fiber Optic FC PC Fixed Attenuator Dual Wavelength

This kind of FC fiber optic attenuator is used in FC connections. FC fiber optic attenuators feature a proprietary type of metal-ion doped fiber which reduces the light signal as it passes through. This method of attenuation allows for higher performance than fiber splices or fiber offsets, which function by misdirecting rather than absorbing the light signal. FC fiber optic attenuators are used in single mode applications at 1250 to 1625nm wavelength range. Ingellen supply FC APC single mode fiber optic attenuator and FC UPC single mode fiber optic attenuator, both of them are with ceramic sleeves and accurate FC connection interface. The attenuation range is from 1dB to 30dB available. All these products are 100% tested during production, we keep them in stock for fast delivery and at good physical and working conditions.

Features

Metal ion doped fiber;
High-power light source durability;
Wavelength independence;
Attenuation levels ranging from 1dB to 30dB, with standard and premium tolerances, plus custom configurations 1310nm, 1550nm, 1250-1625nm and 1350/1550nm dual wavelengths.

Application

Fiber optical telecommunication system;
Fiber optical CATV;
Fiber optical sensor;
Testing equipment.

Specification

Attenuation Value 1dB ~ 30dB

Operating Wavelength

Singlemode: 1240 ~ 1620nm (Dual 1310 / 1550nm)

Multimode: 850 ~ 1310nm 62.5 or 50um

Premium

Return Loss

UPC > 55dB

APC > 65dB

Attenuation Accuracy

1 ~ 7 dB ± 0.5dB

8 ~ 12 dB ± 0.7dB

13 ~ 17 dB ± 1.0dB

18 ~ 25 dB ± 1.3dB

Maximum Optical Input Power

1000mW

Polarization Dependent Loss

≤ 0.1dB

Operating Temperature Range

- 40 to 75

Storage Temperature Range

-40 to 85

Humidity

95% RH

Item

Singlemode

Multimode

Wavelength

1310nm and 1550nm

850nm and 1310nm

1310nm or 1550nm

850nm or 1310nm

Attenuation Range

1dB ~ 20dB

1dB ~ 20dB

Attenuation Variation

≤ 10dB

± 0.5dB

> 10dB

± 1.0dB

Reflectance

PC

≥ 40dB

≥ 30dB

UPC

≥ 50dB

APC

≥ 60dB

Operation Temperature

- 40°C ~ 75°C

- 40°C ~ 75°C

Storage Temperature

- 40°C ~ 85°C

- 40°C ~ 85°C
Note:Customized configurations available upon request

Geometry Requirement

Ferrule Endface Radius

7mms ≦ R ≦ 25mm

Apex Offset ≦ 50um

Undercut ≦- 50nms ≦ U ≦ 50um

5dB Optical Fiber Optic FC PC Fixed Attenuator Dual Wavelength

Shipping Via Those Follow Tools

5dB Optical Fiber Optic FC PC Fixed Attenuator Dual Wavelength

Our Fiber Optic Attenuators Quality

5dB Optical Fiber Optic FC PC Fixed Attenuator Dual Wavelength

Notes:

Prices and specifications are subject to change without notice.
FOCC is not responsible for typographical or photographic errors.

Please contact us at focc@fiberfocc.com for detailed inquiry.
