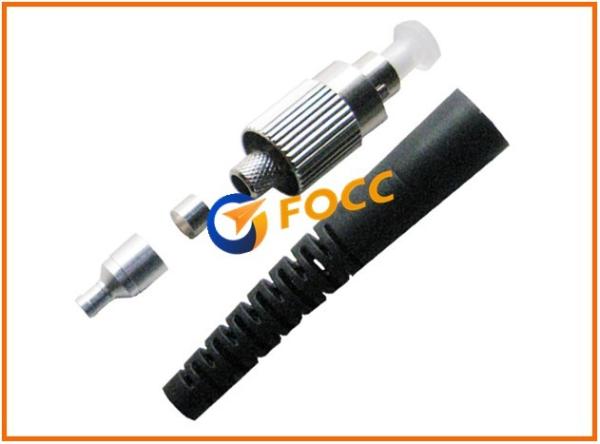

Broadband FC / PC Fiber Optic Connector Singlemode Fiber Assembled
Broadband FC / PC Fiber Optic Connector Singlemode Fiber Assembled
Specifications
Brand Name :
FOCC
Model Number :
FOCC - 008
Certification :
RoSH, CE, SGS
Place of Origin :
China
MOQ :
10 Pieces
Payment Terms :
T/T, Western Union, L/C, MoneyGram
Supply Ability :
Delivery Time 5000 Pieces Of Capacity Per Month
Delivery Time :
5 - 7 Working Days
Packaging Details :
Box of 12 Individually Bagged Connectors With Optional Termination Aid
Fiber Type :
Simplex
Fiber Compatibility :
Singlemode, Multimode
Insertion Loss :
< 0.2dB
Polishing :
PC, UPC, APC
Operating Temperature :
- 40°C ~ + 75°C
Certificates :
UL, CE, ISO9001, RoHS
Description

Broadband FC / PC Fiber Optic Connector Singlemode Fiber Assembled

FOCC this kind of FC connector is a fiber optic connector with a threaded body, which was designed for use in high vibration environments. It is commonly used with both single-mode optical fiber and polarization maintaining optical fiber. The FC fiber optic connector has been standardized in a FOCIS 4 (Fiber Optic Connector Intermateability Standards) in EIA/TIA-604-04. FC is an acronym for Fiber Connector " ferrule connector " or " fiber channel".

Specifications

Item

Singlemode

Multimode

Insertion Loss

PC < 0.3dB APC < 0.2dB

PC < 0.3dB

Return Loss

PC > 45dB APC > 60dB

PC > 25dB

Insert-pull Test

1000 times < 0.3dB

Operating Temperature

- 40°C ~ + 75°C

Ceramic Ferrule Spec

125.5um concentricity : < 1um

127um concentricity : < 3um

Polish Type

PC / APC(9 / 125um)

PC (50 / 125um,62.5 / 125um)

Features


Low insertion loss;
Corrosion resistant body;
Inner key and key ring styles available;
Variety of boot types and colors;
Precision mechanical dimension;
Meets Telecordia-GR-326-CORE specifications;
Ultra low back reflection;
One Piece with pre-domed ceramic ferrule is designed for easy assembly.

Applications

LAN & WAN;
CATV fiber optic links;
Network;
Broadband;
Telecommunications.

Broadband FC / PC Fiber Optic Connector Singlemode Fiber Assembled

Broadband FC / PC Fiber Optic Connector Singlemode Fiber Assembled

Shipping Via Those Follow Tools

Broadband FC / PC Fiber Optic Connector Singlemode Fiber Assembled

FOCC Optic Fiber Connector Quality

Broadband FC / PC Fiber Optic Connector Singlemode Fiber Assembled

Notes:

Prices and specifications are subject to change without notice.
FOCC is not responsible for typographical or photographic errors.

MORE INFORMATION please contact us focc@fiberfocc.com directly, your choices are under our best service.
