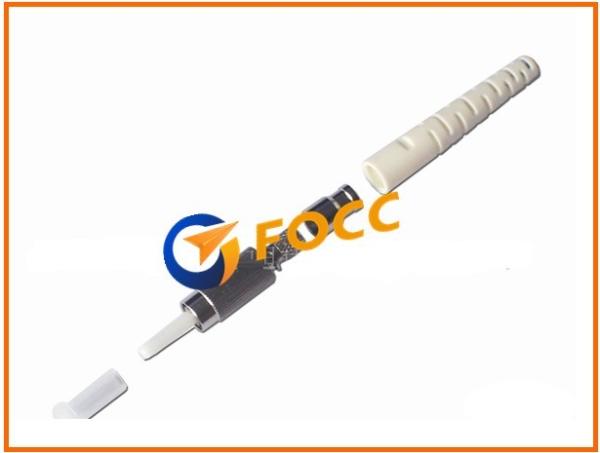

Free Floatig DIN Fiber Optic Connector Ceramic Ferrule Design for Broadband
Free Floatig DIN Fiber Optic Connector Ceramic Ferrule Design for Broadband
Specifications
Brand Name :
FOCC
Model Number :
FOCC - 015
Certification :
RoSH, CE, SGS
Place of Origin :
China
MOQ :
10 Pieces
Payment Terms :
T/T, Western Union, L/C, MoneyGram
Supply Ability :
Delivery Time 5000 Pieces Of Capacity Per Month
Delivery Time :
5 - 7 Working Days
Packaging Details :
Box of 12 Individually Bagged Connectors With Optional Termination Aid
Fiber Type :
Simplex
Fiber Compatibility :
Multimode; Singlemode
Insertion Loss :
< 0.2dB
Polishing :
PC, UPC, APC
Operating Temperature :
- 40°C ~ + 80°C
Certificates :
UL, CE, ISO9001, RoHS
Description

Free Floatig DIN Fiber Optic Connector Ceramic Ferrule Design for Broadband

The DIN connector is available with a variety of boots. DIN Fiber Optic Connector includes single mode UPC, single mode APC and multimode UPC types. The DIN fiber connectors feature a single unit body with spring-loaded free floating zirconia ferrule. This unique connector offers superior performance in a compact, compatible design suitable for a variety of applications. The DIN fiber connectors are comply to CECC 86 135-801 (PC version) & CECC 86 135-802 (APC version) standards.

DIN Connector Specifications

DIN Connector

Singelmode

Mulitmode

Insertion Loss

≤ 0.20dB

≤ 0.25dB

Return Loss

≥ 50 dB(PC)

≥ 55 dB(UPC)

≥ 65dB(APC)

Durability

＜ 0.20 dB typical change, 1000 mating

Operation Temperature

-40 to +80 ℃

Ferrule Hole Sizes

125.0+1/-0μm, Concentricity: ≤ 1.0μ

125 μm , Concentricity: ≤ 3μm

125.5+1/-0μm, Concentricity: ≤ 1.0μ

144 μm , Concentricity: ≤ 3.0μ

126.0+1/-0μm, Concentricity: ≤ 1.0μ

DIN Connector Applications

LAN & WAN;
CATV fiber optic links;
Network;
Broadband;
Telecommunications.

DIN Connector Features


Compatible with DIN 47256;
Free-floatig ceramic ferrule design;
Corrosion resistant body;
Compact design;
Low insertion loss & back refelction.

Free Floatig DIN Fiber Optic Connector Ceramic Ferrule Design for Broadband

Ordering Guide

P / N

Connector Type

Fiber Mode

FOCC - 015

DIN/APC

Singlemode

DIN/UPC

DIN/UPC

Multimode

Shipping Via Those Follow Tools

Free Floatig DIN Fiber Optic Connector Ceramic Ferrule Design for Broadband

FOCC Optic Fiber Connector Quality

Free Floatig DIN Fiber Optic Connector Ceramic Ferrule Design for Broadband

Notes:

Prices and specifications are subject to change without notice.
FOCC is not responsible for typographical or photographic errors.

Please contact us at focc@fiberfocc.com for detailed inquiry.
