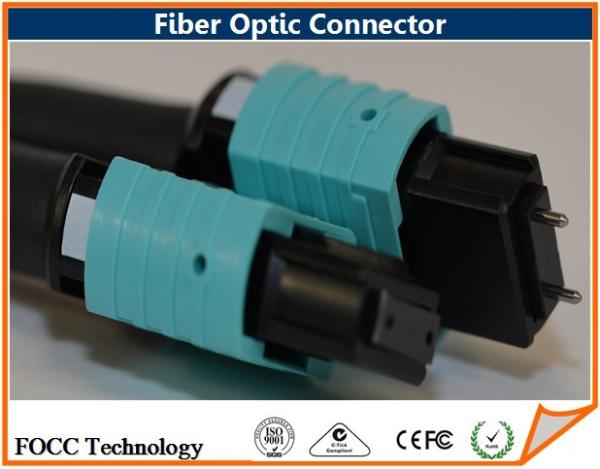

Simplex MPO / MTP Ribbon Fiber Optic Connector / Male And Female Connectors
Simplex MPO / MTP Ribbon Fiber Optic Connector / Male And Female Connectors
Specifications
Brand Name :
FOCC
Model Number :
FOCC - 016
Certification :
RoSH, CE, SGS
Place of Origin :
China
MOQ :
10 Pieces
Payment Terms :
T/T, Western Union, L/C, MoneyGram
Supply Ability :
Delivery Time 5000 Pieces Of Capacity Per Month
Delivery Time :
5 - 7 Working Days
Packaging Details :
Box of 12 Individually Bagged Connectors With Optional Termination Aid
Fiber Type :
Simplex
Fiber Compatibility :
Multimode; Singlemode
Insertion Loss :
< 0.2dB
Polishing :
PC, UPC, APC
Operating Temperature :
- 40°C ~ + 80°C
Certificates :
UL, CE, ISO9001, RoHS
Description

Simplex MPO / MTP Ribbon Fiber Optic Connector / Male And Female Connectors

MTP and MPO are compatible ribbon fiber connectors based on MT ferrule which allow quick and reliable connections for up to 12 fibers. Color-coded housings differentiate singlemode (green) and multimode (beige). Manufactured to IEC Standards 1754-7 and TIA/EIA 604-5 tested to Telecordia GR-1435. Connection integrity is provided by the spring action side latch housing and alignment is achieved with high precision guide pins. FOCC MPO Connector Kits are available in a wide range of types and models, both male and female type connectors. With FOCC, you have a full selection of boot types to choose from in standard and high-grade SM and MM models.

Specifications

MPO/ MTP Connector

Singelmode

Mulitmode

Insertion Loss

≤ 0.20dB

≤ 0.25dB

Return Loss

≥ 50 dB(PC)

≥ 55 dB(UPC)

≥ 65dB(APC)

Durability

＜ 0.20 dB typical change, 1000 mating

Operation Temperature

-40 to +80 ℃

Ferrule Hole Sizes

125.0+1/-0μm, Concentricity: ≤ 1.0μ

125 μm , Concentricity: ≤ 3μm

125.5+1/-0μm, Concentricity: ≤ 1.0μ

144 μm , Concentricity: ≤ 3.0μ

126.0+1/-0μm, Concentricity: ≤ 1.0μ

Applications

LAN & WAN;
CATV fiber optic links;
Network;
Broadband;
Telecommunications.

Features

Compliant to IEC and TIA standards;
RoHS and REACH compliant;
Flammability rating: UL94V-0.

Simplex MPO / MTP Ribbon Fiber Optic Connector / Male And Female Connectors

Simplex MPO / MTP Ribbon Fiber Optic Connector / Male And Female Connectors

Simplex MPO / MTP Ribbon Fiber Optic Connector / Male And Female Connectors

Ordering Guide

P / N

Connector Type

Fiber Mode

Multi Fiber

MPO / MTP

FOCC - 016

MPO

Singlemode (Female / Male)
Multimode (Female / Male)

12 core

MTP

Singlemode (Female / Male)

12 core

Multimode (Female)

12 core

Multimode (Male)

12 core

Shipping Via Those Follow Tools

Simplex MPO / MTP Ribbon Fiber Optic Connector / Male And Female Connectors

FOCC Optic Fiber Connector Quality

Simplex MPO / MTP Ribbon Fiber Optic Connector / Male And Female Connectors

Notes:

Prices and specifications are subject to change without notice. FOCC is not responsible for typographical or photographic errors. Please contact us at focc@fiberfocc.com for detailed inquiry.
