Direct Burial Armored Multimode Fiber Optic Cable With Terminated Connector
Direct Burial Armored Multimode Fiber Optic Cable With Terminated Connector
Specifications
Brand Name :
FOCC
Model Number :
FOCC - AC003
Certification :
RoHS; CE; ISO9001
Place of Origin :
China
MOQ :
1000 Meters
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
250 KM Of Production Capacity Per Month
Delivery Time :
Lead Time 5 - 7 Working Days
Packaging Details :
2000 Meters Per Wooden Drum Or Customized Packed
Jacket :
PVC
Color :
Blue
Fiber Type :
Multimode
Core :
Multi-fibers
Diameter :
6.0mm or Other
Strength Member :
Kevlar
Description

Direct Burial Armored Multimode Fiber Optic Cable With Terminated Connector

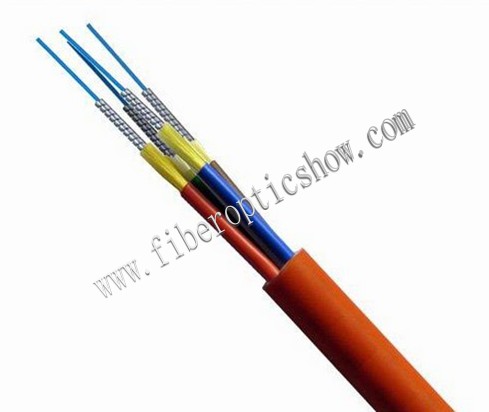

Simplex Armored Fiber Optic Cable structure includes 0.9mm tight buffer fiber, flexible metal tube, aramid yarn and outer (PVC, LSZH) jacket. Jacket has the correct flexibility and crimp holding capability. Its flexible metal tube protects the fiber optic, high compression resistant, high tensile resistant, rat-bite resistant, bend resistant and optimum flexible. FOCC armored simplex fiber cables 3.0mm include Armored Single - mode Simplex Optical Cable 3.0mm and Armored Multi - mode Simplex Optical Cable 3.0mm that are connected with FC, SC, LC, ST, MTRJ, MU, E2000, and SMA.


Drawing Profile


Direct Burial Armored Multimode Fiber Optic Cable With Terminated Connector


Features

Easy wiring,secured and reliable;
Bend resistant and optimum flexible;
Flexible metal tube protect the fiber optic;
Single-mode:9/125µm; Multi-mode: 62.5/15µm & 50/125µm;
High compression resistant,high tensile resistant,rat –bite resistant;
Cable Structure: 0.6mm tight buffer fiber + Flexible metal tube + Aramid yarn+Outer jacket(PVC,PE,LSZH).


Applications

Used in fiber optic patch cable with terminated connector;
Harsh environments, where a traditional fiber optic patch cable may fail;
Ideal for ceiling runs, raised floors and runs between floors;
FTTH projects.


Technical Data

Item

Unit

Single-mode

Multi-mode

Core / Mode Diameter

um

9.2±0.4um@1310nm

10.4±0.8um@1550nm

50±2.5um

62.5±2.5um

Cladding Diameter

um

125±1um

125±1um

125±1um

Max.Attenuation

dB/km

0.5dB/km@1310nm

0.4dB/km@1550nm

3.5dB/km@850nm

1.5dB/km@1310nm

3.5dB/km@850nm

1.5dB/km@1310nm

Color

Color

Yellow Or Blue

Gray

Operating Temperature

℃

-40℃ ~+85℃

Outer Diameter

mm

2.85±0.10um

Net Weight

kg/km

18

Allowable Bending Radius

(mm)

25

Allowable Tensile

(N)

200

Crush Resistant

N/100mm

3000

Fiber Count

Cores

4

6

8

12

16

Cable Diameter

mm

6.4 ± 0.3mm

6.4 ± 0.3mm

7.4±0.3mm

7.4 ± 0.3mm

8.9 ± 0.3mm

Fiber Count

Cores

4

6

8

12

16

Net Wight

Kg/km

65

65

75

75

75

Min. Bend Radius

mm

Dynamic - 20D

Static - 10D

Allowable Tensile

N

Long Term - 600

Short Term - 800

Allowable Crush

N/100mm

Long Term - 3000

Short Term - 5000



Direct Burial Armored Multimode Fiber Optic Cable With Terminated Connector

Direct Burial Armored Multimode Fiber Optic Cable With Terminated Connector


Shipping Via Those Follow Tools


Direct Burial Armored Multimode Fiber Optic Cable With Terminated Connector


Quality Control & Guarantee


Direct Burial Armored Multimode Fiber Optic Cable With Terminated Connector


Notes:

Prices and specifications are subject to change without notice, FOCC is not responsible for typographical or photographic errors, MORE INFORMATION please contact us focc@fiberfocc.com directly, your choices are under our best service.
