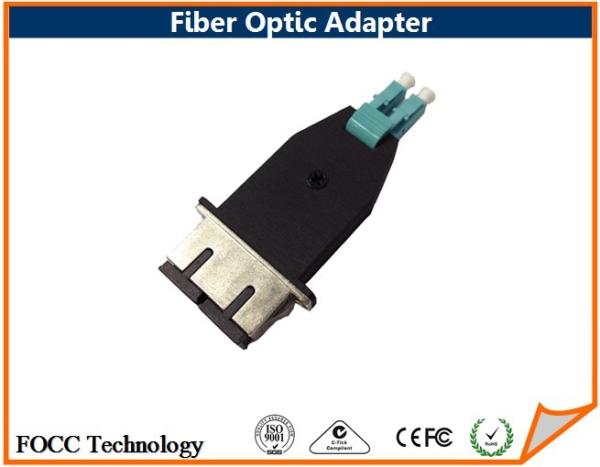

Hybrid SC Female to LC Male Multimode OM3 Duplex Adapter Zirconia Ferrule
Hybrid SC Female to LC Male Multimode OM3 Duplex Adapter Zirconia Ferrule
Specifications
Brand Name :
FOCC
Model Number :
FOCC-A007
Certification :
CE, ISO9001, RoHS
Place of Origin :
China
MOQ :
10 Pieces
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Delivery Time :
Delivery Time 5 - 7 Working Days
Packaging Details :
Box of 12 Individually Bagged Adapters Or Customized Requirements
Adapter Series :
Hybrid Adapters
Material :
Plastic Housing
Connector :
SC; LC
HS Code :
85369000
Ferrule Material :
Zirconia
Mode Type :
50/125μm Multimode OM3
Description

Hybrid SC Female to LC Male Multimode OM3 Duplex Adapter Zirconia Ferrule

Briefly Speaking

Our FOCC-A007 New Hybrid Adapters Series LC male-SC Female Duplex hybrid adapter can be easy connected with LC Duplex Fiber adapter or other LC Duplex port with module. It offers a solution for hybrid applications where the two different kinds of fiber connectors or cable assemblies need to be linked with each other. Most of the hybrid fiber adapter use high precision ceramic sleeves which enable reliable ferrule mating and ensure low insertion loss and return loss during the linking. The main function of this fiber optic adapter is for connection between various different fiber optic connectors, fiber optic patch cords, fiber optic pigtails and fiber optic equipments, different shapes, but it offers the point-to-point connection in the fiber optic network.

Short Summary

Manufacturer

FOCC

Adapter Series

Hybrid Adapters

Fiber Type

50/125μm Multimode OM3

Connector Type

SC - LC

Ferrule Material

Zirconia

Fiber Count

1

Applications

Telecommunications networks;
Local area networks;
Data processing networks;
Cable television;
Premises distribution;
Testing Measurement Instruments.

Features

Used to connect Multimode and Single mode FC cables;

Metal body ensures durability and long life;

Dust caps protect against debris and contamination;

Bronze alignment sleeve supports Multimode applications.

Specification

Zirconia Sleeves

Phospor Bronze

Insertion Loss

Typical ≦0.05dB; Max≦0.20dB

Typical ≦ 0.10dB

Durability

< 0.1dB Typical change,500 matings

Note: Zirconia tested with SMF Fiber, Phospor Bronze sleeve tested with MMF Fiber

Hybrid SC Female to LC Male Multimode OM3 Duplex Adapter Zirconia Ferrule

More Options

Hybrid SC Female to LC Male Multimode OM3 Duplex Adapter Zirconia Ferrule

Shipping Via Those Following Tools Or Customized Methods

Hybrid SC Female to LC Male Multimode OM3 Duplex Adapter Zirconia Ferrule

FOCC Fiber Optic Adapter Quality

Hybrid SC Female to LC Male Multimode OM3 Duplex Adapter Zirconia Ferrule

Notes:

Prices and specifications are subject to change without notice. FOCC is not responsible for typographical or photographic errors. Please contact us at focc@fiberfocc.com for detailed inquiry.
