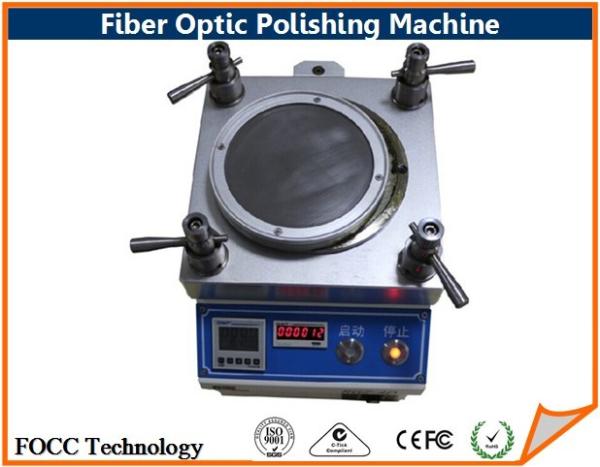

Corner Pressure Fiber Optic Polishing Machine , Single And Multiple Fiber
Corner Pressure Fiber Optic Polishing Machine , Single And Multiple Fiber
Specifications
Brand Name :
FOCC
Model Number :
FOCC-12DD
Certification :
ISO
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
100 Sets Of Capacity Per Month
Delivery Time :
5 - 7 Working Days
Packaging Details :
Individual Bubble Bag With Outside Cartons Sized As 48cm*33cm*45cm
Polish Type :
APC and PC
Net Weight :
27 KG
Dimensions :
241 * 241 * 260mm
Time Settings :
99 min 99 sec (Max)
Relative Humidity :
15% - 85%
Radius of Curvature :
7-30 MM
Description

Automated Corner Pressure Fiber Optic Polishing Machine , Single And Multiple Fiber

FOCC this new Automated Desinged Fiber Optic Polish​ machine incorporates many new customer driven design changes. Changes included programmable pressure and speed ramp rates (slow start), increased polishing pressure to 12 lbs, automated film counters, programmable machine maintenance section and many other new features.

Corner Pressure Fiber Optic Polishing Machine , Single And Multiple Fiber

Briefly Information

Manufacturer

FOCC

P / N

FOCC-12DD

Type

Pneumatically-Controlled Polishing Machine

Polishing Capacity (max)

 12 Ferrule 16 Ferrule

Pressure Source

Coil Spring

Dimensions

241 * 241 * 260mm

Net Weight

27 KGs
Radius of Curvature 7-30 MM
Maximum Connector Load 24

Technical Parameters

O.D. of Rotation Plate

127 mm(5 inch)

Time Settings

99 min 99 sec (Max)

Speed for Rotation Plate

15 - 200 rpm

Height of Plate Jumpiness

<10 um

Pressure Configuration:

21 ~ 36 N/cm2

Work Temperature

10 ~ 40 Celsius degrees / 10℃～40℃

Relative Humidity

15%~85%

Noise

unloading Less 50 dB

Libration

Working Status 0.25g 5~100Hz 10min

Stopping Status 0.50g 5~100Hz 10min

Power Input

220～230 VAC 50Hz / 60Hz

Electric Power

40 W

Polisher Feature

High efficiency High repeatability at all connector faces Easy;

Pneumatically-Controlled Polishing Pressure provides consistent polishing force regardless of ferrule length;

Quick-Change Fixtures support all industry standard connector types, both single and multiple fiber (Fixtures sold separately);

Drip Tray swivels in for quick and easy cleaning of fixtures between steps;

Simplified operating;

Easily create & save custom polishing procedures.

Polisher Application

Re - Work;
R & D;
Low Volume Production.

Corner Pressure Fiber Optic Polishing Machine , Single And Multiple Fiber

Shipping Method As Follow or Customized Request

Corner Pressure Fiber Optic Polishing Machine , Single And Multiple Fiber

Quality Control and Guarantee

Corner Pressure Fiber Optic Polishing Machine , Single And Multiple Fiber

Notes:

Prices and specifications are subject to change without notice.
FOCC is not responsible for typographical or photographic errors.

MORE INFORMATION please contact us focc@fiberfocc.com directly, your choices are under our best service.
