270mm Glass Fiber Stitched Mat For Winding Pipe Storage Tank
270mm Glass Fiber Stitched Mat For Winding Pipe Storage Tank
Specifications
Model Number :
EMK300-270mm
Certification :
ISO 9000
Place of Origin :
CHINA
MOQ :
500kgs
Price :
negotiatable
Payment Terms :
T/T, L/C
Supply Ability :
20MT A WEEK
Delivery Time :
7 DAYS
Packaging Details :
each mat is wound onto a paper tube of ID76mm, wrapped up in plastic film and packed in woven bag. 9 roll a pallet a 20' container can hold 10 pallets
Material :
continuous filament mat
Width :
270mm
Roving type :
E glass
Character :
hign glass content and high tensile strength
Resin :
Unsaturated resin and other type
Application :
Winding pipe, storage tank, RTM, etc.
Description

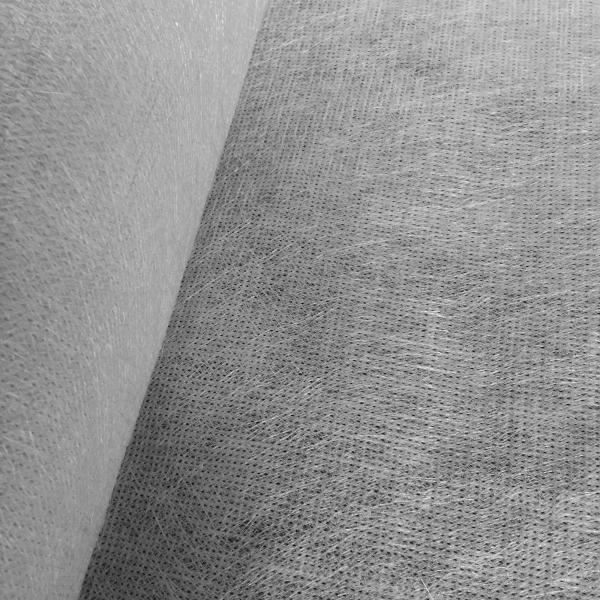

Stitch mat is made up of glass fibre laid randomly and held together by stitching. This binderless structure provides excellent drape ability, high glass content and higher tensile strength than a normal Chopped Strand Mat. This stitched mat can be used for hand lay-up but is more suited for pultrusion and closed mould applications.

A layer of polyester veil can be added for better surface finish and weather resistant property.

fiberglass stitch mat 300g,380g,450g,600g compatiable with unsaturated resin and other resin for winding pipe and FRP pultrusion process

  • High Quality
  • Uniform in distribution
  • Good mat integrity, Easy cutting
  • Fast and consistent wet-out speed in resin and rapid air lease.
  • Good in remolding property.

Specifications:

Product NO. Glass Type

Overall Weight

(g/m2)

Chopped Roving

(g/m2)

Width

(mm)
CMK 300 C 300 300 200 - 3200
CMK 380 C 380 380 200 - 3200
CMK 450 C 450 450 200 - 3200
EMK 250 E 250 250 200 - 3200
EMK 300 E 300 300 200 - 3200
EMK 380 E 380 380 200 - 3200
EMK 450 E 450 450 200 - 3200
EMK 600 E 600 600 200 - 3200

Features:

● No binder and good resin wet out performance

● Good strand dispersion and felt of uniform thickness

● Good moldability and easy roll-out

● Stitched together with polyester thread resulting in high wet tensile strength

Application:

● Compatiable with resinforeced unsaturated polyester resin, vinylester resin, epoxy resin, phenolic resin and polyurethane resin etc.

● Forming process includes winding, pultrusion, RTM, hand lay-up and lamination etc.

● The typical end-use applications are winding pipe, storage tank, pultruded profile, anodic tube, FRP boat hull and refrigerator car panels etc.
