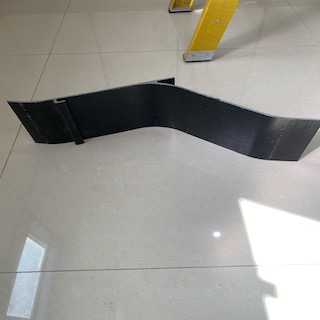

Molding RTM Fiberglass Biaxial Cloth 500g
Molding RTM Fiberglass Biaxial Cloth 500g
Molding RTM Fiberglass Biaxial Cloth 500g
Molding RTM Fiberglass Biaxial Cloth 500g
Specifications
Model Number :
ELTP500
Certification :
ISO 9000
Place of Origin :
CHINA
MOQ :
500kgs
Price :
negotiatable
Payment Terms :
T/T, L/C
Supply Ability :
20MT A WEEK
Delivery Time :
7 DAYS
Packaging Details :
The roll is wrapped up with plastic film and then packed in a woven bag. Usually 9 rolls a pallet, and 10 pallets in a 20' container. If without pallet package, a container could hold about 10 MT
Material :
0°C roving of 250g + 90° roving of 210g+ polyester felt 40g
Color :
White
Texture :
0°C and 90° combination with polyester felt
Length :
1000mm
Resin :
Unsaturated resin and other type
Application :
Molding, RTM etc.
Description

500g Biaxal Cloth

Fiberglass biaxial cloth (also called biax, dual bias, or double bias) refers to 2 sets of straight unidirectional cloth held together by light nylon stitching. This stitching does not affect the structural integrity of the biaxial cloth.

Introduction:

Fiberglass biaxial fabric is a cloth in which the roving is arranged in a two-way direction at 90º (transverse) and 0º (longitudinal), and then stitched with a coil structure. It can be stitched two-way layer yarn with chopped strand mat, polyester surface felt, fiberglass surface felt, carbon fiber surface felt, etc., processed into various types of composites fabric to obtain specific performance.

Specifications:

Product NO.

Overall Weight

(g/m2)

0°Roving

(g/m2)

90°Roving

(g/m2)

Chopped Roving

(g/m2)

Polyester Felt

(g/m2)

Width

(mm)
ELT 450 450 250 200 / / 150 - 2600
ELT 600 600 336 264 / / 150 - 2600
ELT 800 800 420 380 / / 150 - 2600
ELTP 500 500 250 210 / 40 150 - 2600
ELTM 600 600 250 200 150 / 150 - 2600
ELTM 900 900 336 364 200 / 150 - 2600
ELTM 1050 1050 336 414 300 / 150 - 2600
ELTM 1200 1200 420 430 350 / 150 - 2600
ELTMP 640 640 250 200 150 40 150 - 2600

Features:

● No binder content, good wet out of resin

● Provide mechanical strength of the product i multi direction

● Fiber straight arrangemet, max. usage of fiber strength

● Interspaces between the fibers are small, effectively improve the impact resistance of products

Application:

● Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.

● Forming process includes vacuum infusion molding, pultrusion, hand lay-up, RTM etc.

● The typical end-use applications are FRP boat hull, wind power blade, sports equipment, pultruded profile and auto body etc.
