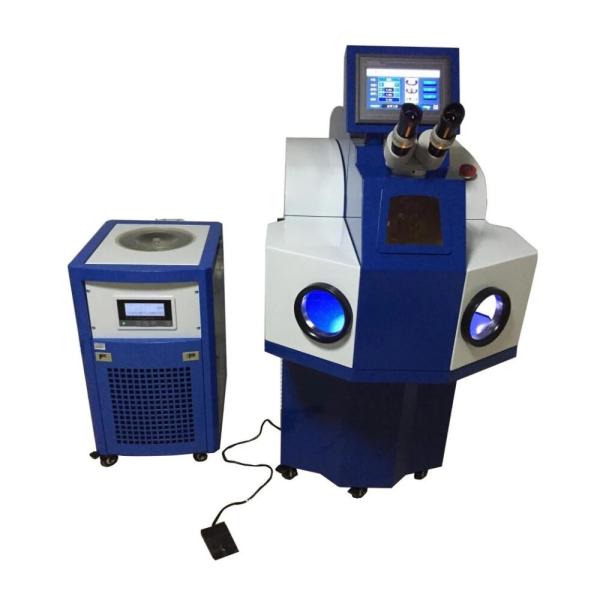

Jewelry Laser Welding Machine / Handheld Laser Welder New Style Pen Gun
Jewelry Laser Welding Machine / Handheld Laser Welder New Style Pen Gun
Specifications
Brand Name :
keyi
Model Number :
KY-M-SW200
Certification :
CE
Place of Origin :
Hubei
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000/set per month
Delivery Time :
5-7 working days
Packaging Details :
wooden packing
Weight :
55kg
laser welding depth :
0.1-3.0mm
Wavelength :
1064nm
Focal Spot Diameter: :
0.2-3mm
Pulse Widt :
0.1-20ms
Usage :
jewelry welding machine
Color :
Red
Description

latest handheld laser welding machine with new style pen gun

Product features

1. Adopt imported ceramic concentrator with high reflectivity, strong energy, high temperature resistance, corrosion resistance and long service life;
2. The ergonomic design of the whole machine is more suitable for jewelry industry. The product is fine, beautiful, stable in performance and suitable for continuous work for a long time;
3. Large internal space, convenient for the placement of laser spot welding tools and fixtures; The welding chip recovery box is installed to facilitate cleaning and gold welding slag recovery;
4. LED shadowless ring lamp, no shadow was observed on the workpiece; with the help of high-clear somatic parallel light path microscope, the laser welding position was observed more clearly;
5. High-magnification beam expanding system can obtain finer points of light and meet the requirements of fine laser spot welding.

product application

Widely used in various metal materials: gold, silver, platinum, copper, stainless steel and other metal materials. Including: rings, earrings, bracelets, necklaces, tie clips, cuff, such as jewelry, metal accessories for hole, the spot welding trachoma, repair the seam lines, embedded parts and claw foot part of the laser welding.

Parameters:

Product Name high power Standing YAG Spot welding laser jewelry welding machine Jewelry repair
Model No. ZG-W100 ZG-W200
Rated Power 100W 200W
Laser Energy 40J 80J
Power Consumption 4KW 5KW 6KW
Machine Dimensions

Welder:970mm*570mm*1220mm (L*W*H)

Chiller:430*370*585mm(L*W*H)
Laser Source ZG-W200Nd:YAG Power Supply 220V±10% /50Hz and 60Hz compatible
Laser Wavelength 1064nm Observing System microscope 10X
Pulse Width ≤20ms Chamber Illumination LED circle lamps
Pulse Frequency ≤50Hz Parameters Memorization 10 groups
Beam Diameter 0.1-3.0mm Protection Alert flow alert
Language Display Chinese/English Cooling System water chiller
Shield Gas Supply One line(Argon) Welding Chamber Dimensions 340mm*540mm*180mm(L*W*H)
Net Weight 150kg(welder)+65kg(chiller) Running Environment 5℃-30℃, 5%-75% humidit
