Co2 laser marking machine is best way to print and engrave on wood, plastic and glass, it use low laser heat to influence the surface of material, it will mark well without burn, most of people would like use co2 laser engrave picture and photos on wood as a souvenir and gift card, the laser marking speed can reach up to 7000mm/min, it is really a fast speed ever that could be much helpful in handmade crafting. you can see the laser marks any where in your daily life, such as the aluminum advertise plate, bote brand, wooden case, brand and signed lable on the wall,, etc.
The advantage of laser are:
* High speed
* Low cost
* Precision
* Environmental
* The marks never fades
* Long working life
* 24 hours continuos work
Application

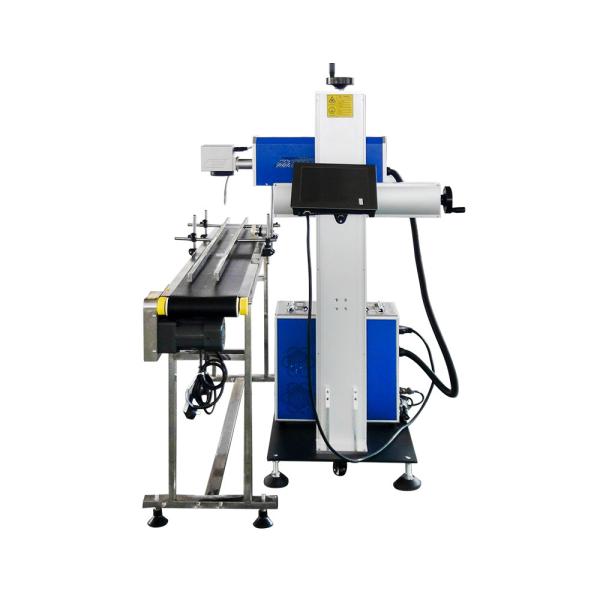

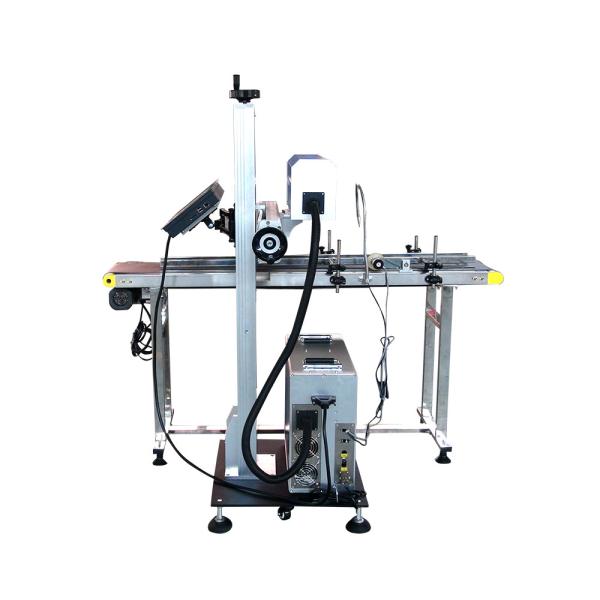

CO2 flying laser marking machine is our special designing for the electronics, pharmaceutical, tobacco, leather, packaging, foods and other industries laser marking application. It can mark all the nonmetal materials very well.
CO2 Laser Features
Our CO2 Laser Marking Machine equipped the importing RF CO2 Laser, High-Speed Resonance Mirror System.
The speed is quicker and the performance is stable.This series Laser Equipments have widely won user's trust depend on it's superior performance and reliable quality.
1, Print 1D, 2D,text and patterns;
2, Four light source optional can be choosed-CO2, UV, Green & Fiber-optical;
3, Support up and down dual laser head design;
4, Dual camera design, as reading as printing;
5, With smoke detection;
6, Built-in high power purification device , flow rate to 1200 m³/H;
7, Safety door design, closed work process to prevent pollution into work environment;
8, Optional Z axis, more flexible printing;
9, Optional PCB cleaner( Conveyor length extend to 240mm);
10, Optional outer dust collector;
11, Standard SMEMA communication interface;
12, Narrow-body design, only 0.768m wide.
Specification | ||||
Model No. | KY-M-CM | KY-M-UV | KY-M-GN | KY-M-FB |
Laser type | CO2 | UV | Green | Fibre |
Wave length | 10.6μm[9.3μm Optional] | 355nm | 532nm | 1064nm(Central Wavelength) |
Laser output power | 5W | 5W | 10W | 20W |
Laser spot diameter | 80,110,140μm | 15μm | ||
Scanning speed | 6,000mm/s | 5,000mm/s | ||
Repeatability | ±20μm | |||
Upper net space of PCB | 95mm | 300 mm | ||
Under net space of PCB | 25mm | |||
Character Height/Width | 0.1~55mm | |||
Barcode Reader | CCD on-line Detection | |||
Barcode Type | 1D,2D,RSS Codes,Data,Letters and Figures,TRUETYPE,CAD Marking Data | |||
Marking Material | Resin,Rubber,Plastic&Paper | Resin,Rubber,Plastic,Paper&Metal,Glass | ||
PCB Thickness | 0.2~6mm | |||
PCB Size | 40×40-400×450mm | |||
Marking Area | 285×400mm | |||
Conveyor Height | 900±50mm | |||
Z Axis | Optional | |||
Dual Laser light source | Optional(with DH behind the model No.) | |||
Cooling Type | Mandatory Air Cooling | Water Cooling | Water Cooling | Wind Cooling |
Power Supply | 220V/One-Phase/50Hz/8A | |||
Air Pressure | 6bar | |||
Weight | Around 500KG | |||
Dimensions | 768mm×1285mm×1430mm | |||
Large board support module | 570×400mm(Conveyor Length 1M) | |||
Oversized large board support module | 850×400mm(Conveyor Length 1.5M) |
