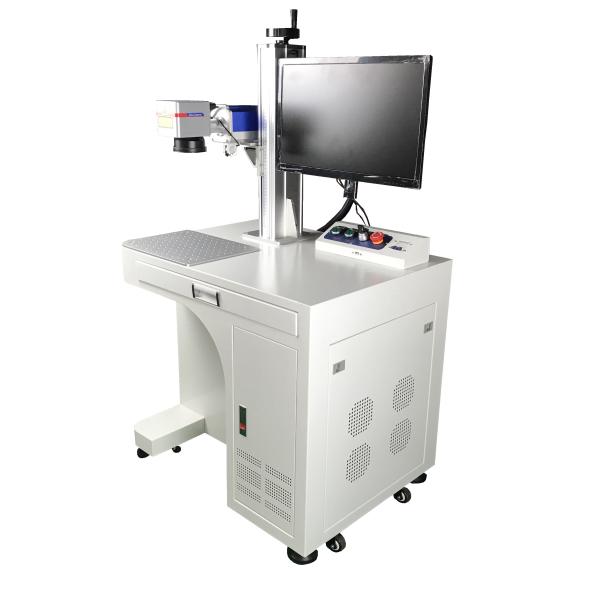

IP54 Forced Air Cooling 30W Metal Laser Marker
IP54 Forced Air Cooling 30W Metal Laser Marker
Specifications
Brand Name :
Keyi
Model Number :
KY-M-FB30
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 sets/month
Delivery Time :
5-7 days
Packaging Details :
standard wooden package
Material :
Metal and some plastic
Marking deepth :
0.5mm
Laser source :
JPT
Power :
30W
Description

Laser Marking Machine For Plastic 30W

Introduction:

Used in metal and some plastic.

Application:

1) Electronics: Iphone, IPAD, Ipod, Keyboard and more standard parts.
2) Instrument: Panel Board, Nameplates, Precision equipment, etc.
3) Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.

Specification:

Laser Features
Laser type Raycus
Laser Power 20W
Laser Wavelength 1064nm
Repetition Frequency Range(KHZ) 30-60
Output Power Stability <3%
Output Beam Diameter(mm) 7.0±1.0mm
Beam Quality <1.5
Polarization State Random
Pulse width(ns) 90-130
Max. Single Pulse Energy(mJ) 0.67
Delivery Cable Length(m) 2(others for optional)
Marking parameter
Marking Size 110mm*110mm(others for optional)
Marking Speed 0-11000mm/s
Marking depth / Roman Type , Character Height 1mm 0.01-0.2mm( Depending on the material )
Marking Content/ Character Types Text/letters/numbers/symbols/graphics/design/logo, etc. Date/time/QR code / Barcode/ batch number/serial number, etc. real-time number coding
Minimum character 0.02mm
Precision ±0.003mm
Others
IP Grade IP54
Cooling system Air Forced
Operating Temperature Temp.:8℃-40℃; Relative humidity≤95%RH； Air dust≤0.01g/m³; Atmospheric pressure ≤86—106Kpa
Power Voltage 220V/110V, 50/60HZ

Sample:

IP54 Forced Air Cooling 30W Metal Laser Marker
