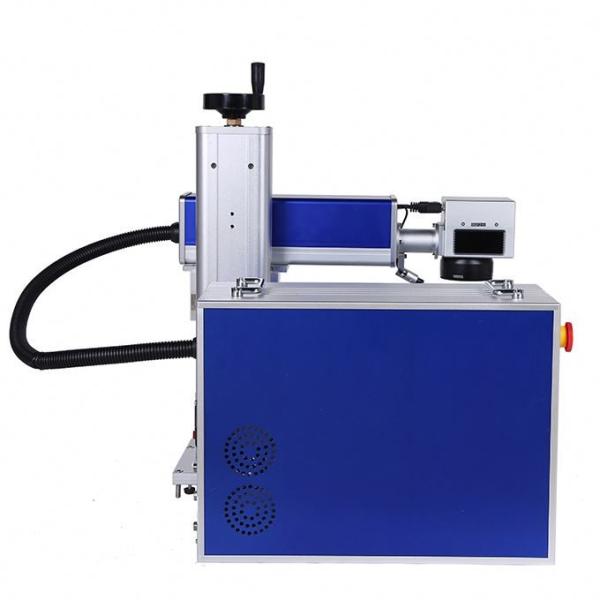

30W Fiber Laser Marking Machine / Metal Laser Engraving Machine 1064nm
30W Fiber Laser Marking Machine / Metal Laser Engraving Machine 1064nm
30W Fiber Laser Marking Machine / Metal Laser Engraving Machine 1064nm
30W Fiber Laser Marking Machine / Metal Laser Engraving Machine 1064nm
30W Fiber Laser Marking Machine / Metal Laser Engraving Machine 1064nm
30W Fiber Laser Marking Machine / Metal Laser Engraving Machine 1064nm
30W Fiber Laser Marking Machine / Metal Laser Engraving Machine 1064nm
30W Fiber Laser Marking Machine / Metal Laser Engraving Machine 1064nm
Specifications
Brand Name :
Keyi
Model Number :
KY-M-FB20
Certification :
CE
Place of Origin :
Hubei
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 set per month
Delivery Time :
5-7 working days
Packaging Details :
Wooden packing
Marking Speed :
7000mm/s
Laser wavelength :
1064nm
Marking area :
110*110 optional
Control Software :
EZCAD
Cooling Mode :
Air Cooling
Description

20W 30W Metal Laser Engraving Machine Fiber Laser Marking Machine For Metal Engraving

Product Parameters

Type Fiber laser marking machine
Model Number KY-FB-20w
Table size 320*200mm
Weight 30KG
Material Aluminum
Laser wavelength 1060nm
Laser power 20W or 30W optional
Laser Type pulsed or continuous
Marking depth ≤0. 5mm as the material may
Marking line speed ≤7000mm / s
Minimum characters 0.15mm
The minimum line width 0.012mm
Repeatability ±0.002
Repeatability Standard 100mmX100mm
Operating Life laser Run> 100,000 hours
Dimensions 620 mm X 760 mm X 1400 mm Weight 45 kg
Work table 320 mm X 200 mm bearing 30 kg
Lifting heigh lifting 550
Cooling system Air cooling
Operating System WinXP / Win7
Graphic Converter CAD, CorelDRAW, CAXA
Environment -20 ° C-45 ° C, relative humidity 80%

Printable numbers, characters, letters, graphics support automatic coding, serial number, batch

number, date, barcodes,two dimensional codes automatically jump number.

-- Our program has a variety of power fiber laser, you can get different laser effects ( metals, plastics,

ceramics, etc.) on most materials.Laser Applications.

-- Support PLT, PCX, DXF, BMP and other documents, directly using SHX, TTF font.
-- Support barcode font.
-- Scalable Software flight marks.
-- You may need to set the automatic serial number, date, time, according to the production.
-- You can read text data directly via the serial port.
-- Powerful fill feature, filling the annular support.
-- Open multiple languages, can easily support world languages.
-- Automatic segmentation of text function, it can adapt to the complex processing conditions.

-- Manage your marking process, from the shop floor to the automated production line
-- Production mode enables you to easily complete multiple tasks: Repeat the inspection, historical documents,
the operator/ manager landed from existing systems ( measurement equipment) or get data reading gun ...

-- Red Preview, you can preview feature red display the contents printed in advance on the workpiece.
