20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe
20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe
20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe
20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe
20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe
20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe
20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe
20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe
20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe
20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe
Specifications
Brand Name :
keyi
Model Number :
Ky-M-FB30w
Certification :
CE
Place of Origin :
Hubei
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000
Delivery Time :
5-7 working days
Packaging Details :
wooedn packing
Control Software :
EZCAD Software
Marking Deepth :
0.1mm depends on material
Marking speed :
7000 mm/s
Laser source :
IPG/CAS
Application :
laser marking
Condition :
New
Laser wavelength :
1064nm
Power supply :
220V/50Hz,AC220V 50/60Hz
Description

20W Flying Optical Fiber Laser Marking Machinefor Metal/Steel /Aluminum/HDPE Pipe

Online Flying plastic bottle laser marking machine Main Features

1) Flying Marking, also called online laser marking,Advanced digital high-speed scanning galvanometer,Embedded laser operating software system.
2) Flying Laser Marking Printing Machine 30W is laser marking printer especially matched for the automatic production line for flying printing & marking for the date codes or barcodes.
3) Compared to the traditional inkjet printer, Flying Laser marking printer has zero consumption of any materials, no need ink, no pollution, no noise, energy saving and environmental protective.
The Flying Laser Marking Printer can be equipped with different kinds of laser sources (fiber, co2, or UV) and printer system.
4) It can be widely used in food and beverage, pharmaceutical, tobacco, leather industry.
5) This is the 30W fiber source flyinng laser marking printer, it could be used for metal and nonmetal flying marking combined with various kinds of the production line. There is another co2 laser source online laser marking printer available especially for nonmetal materials' online marking.

SPECIFICATIONS
Model

 Keyi-M-FB30w
Laser Type
Fbier Laser
Laser Power
10W/20W/30W/50W
Laser Source brand
Raycus Chinese Best Fiber Laser Manufacture
Marking Speed
7000 mm/s
Marking Field
70X70 - 300X300 mm
Min Line Wide
0.001 mm
Marking Depth
0.1mm depends on material
Wavelength
1064 nm
Software
EzCAD 2.14.7 or later
Supported Format
PLT, DXF, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF
Cooling
Air cooling
Unit Power
≤500W
Lifespan
≥45000 hours
Warranty
2 Years

Product show:

20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe

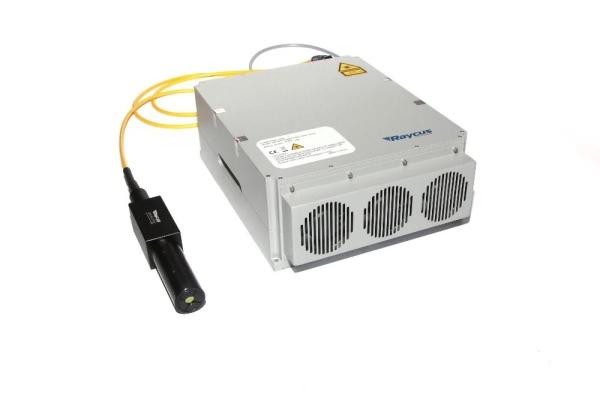

Fiber Laser Source
Brand
Raycus
Wave length
1064 nm
Max output power
>50 W
Power range
10 - 100 %
Output power stability
< 3 %
Repetition frequency range
50 - 100 kHz
Pulse width
90 - 150 ns
Max single pulse energy
1 mJ
Beam quality
< 1.8 M2
Output beam diameter
7±1 mm
Delivery cable length
2 m
Optical fiber protection
φ6
Power supply
DC 24 V
Power consumption
340 W
Cooling
Forced Air
Operating Temperature
0 - 40 ℃
Dimensions
396X360X123 mm

20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe

Sample show:

20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe
