Industry Sheet Metal Cutting Equipment IPG Raycus Laser Source 1500mm*3000mm
Industry Sheet Metal Cutting Equipment IPG Raycus Laser Source 1500mm*3000mm
Specifications
Brand Name :
keyi
Model Number :
KY-C3015
Certification :
CE
Place of Origin :
hubei
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-7 working days
Packaging Details :
wooden packing
Repeat Positionin :
± 0.02mm
Laser Source Brand: :
IPG/Raycus
ax. Movement S :
170m/min
Servo motor :
France Schneider
Working area :
1500mm*3000mm
Cooling Mode :
Water Cooling
Cutting Area :
1300*2500mm
Control Software: :
Sypcut Control System
Cutting Thickness: :
0-20mm
Cutting Speed :
80m/min
Description

Industry Laser Equipment 500w CNC Fiber Laser Cutting Machine for Steel Metal Sheet

Machine Features

1. High-performance laser device associated with stable operation system enables optimal cutting effects.
2. Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.
3. Single countertop make plates loading and unloading available during cutting, which improves the processing eficiency.
4. Large-size closed enclosure improves dedusting effects and avoids optical pollution.
5. Automatic height-adjustment performance keeps constant focal length and stable cutting quality.
6. Gantry structure and inblock aluminum cast cross beam make the device highly rigid, stable and antiknock.

7. It could ut mental in various materials and realize excellent and stable cutting effects.
8. It takes precise linear guideway and gear rack as driving elements which could realize high precision and rapid speed.
9. It is equipped with special CAD/CAM automatic programming and jacking software to save raw materials to the maximum extent.
10. Remote communication and monitoring in laser cutting process could be realized through Internet communication.

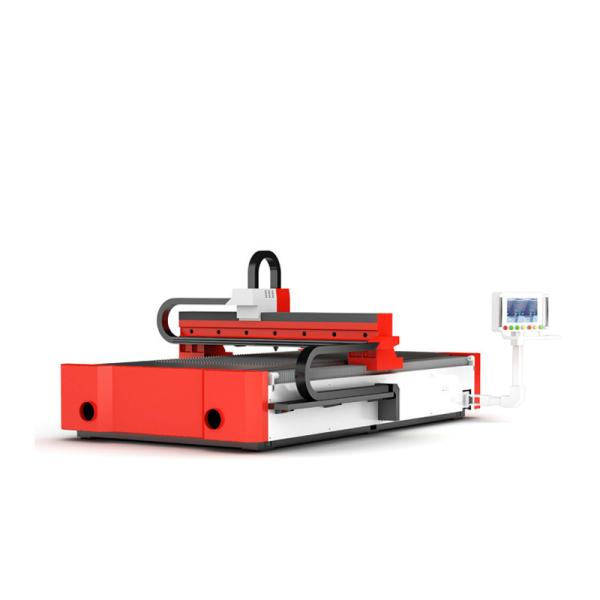

Fiber laser cutting machine Keyi-C3015
Fiber cutter keyi-C3015
* 500w Max fiber source
* 1500 x 3000mm working area
* Wifi control to solve fault detection;

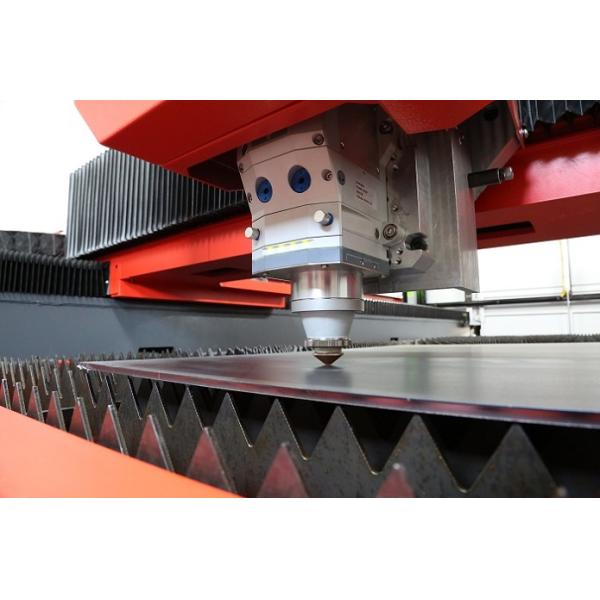

* Switzerland RAYTOOLS cutting head BT240
* Japan Yaskawa servo motor,
* French MOTOREDUCER Reducer;
* French Schneider electronic parts and components,
* Japan SMC Pneumatic Components, Japan NSK bearing
* Taiwan HIWIN square rail, Taiwan YYC gear rack;
* Central automatic lubrication system for guide way, purging system
* Cypcut operating system.
Fiber cutter Keyi-C3015
*Switzerland RAYTOOLS; Model: BT240
*500w/700w/800w/1000w/1500w/2000w/2500w/3000w/4000w Maxphotonics IPG Raycus laser generator
*CBS100 Height regulator
*Positioning accuracy 0.03mm , reposition accuracy 0.02mm
*Max moving speed 160m/min
*Sawtooth blade working table
*All axis Original Taiwan Hiwin square guide rail ,X (25mm),Y (35mm),Z (20mm)

Features for Fiber Laser Cutting Machine

  • long lifetime; excellent beam quality; precision and smooth cutting edge.
  • fast cutting speed. It's three times quicker than CO2 laser cutting machine.
  • high conversion rate between laser and electricity. (as high as 30%); low electricity consumption.
  • low operation costs. It's flexible transmission. It does not require working gas, which saves operation costs.
  • high stability and precision
  • powerful functions. It's equipped with professional CNC cutting software, which supports AI, DXF, PLT, GBX files. It boasts below functions, including bridge connection, leapfrog, slotting compensation, etc.
  • High Speed; High Performance; High Efficiency; Low Gas Consumption; Low Electricity Consumption; Low Operation Costs.

Industry Sheet Metal Cutting Equipment IPG Raycus Laser Source 1500mm*3000mm

Industry Sheet Metal Cutting Equipment IPG Raycus Laser Source 1500mm*3000mm

Industry Sheet Metal Cutting Equipment IPG Raycus Laser Source 1500mm*3000mm

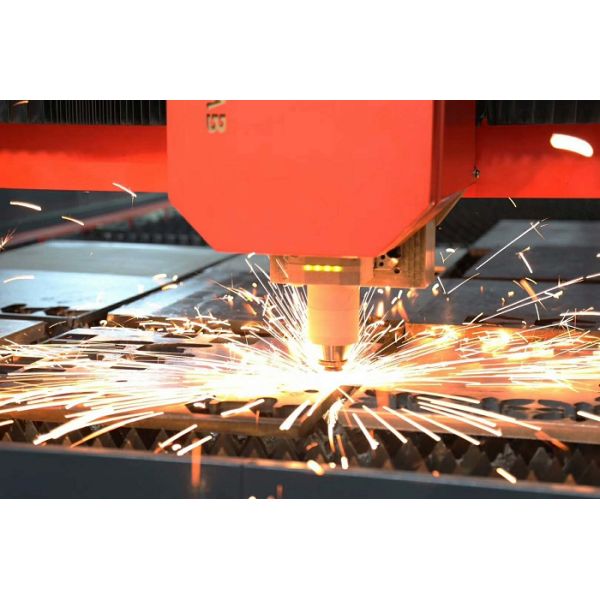

Sample show:

Industry Sheet Metal Cutting Equipment IPG Raycus Laser Source 1500mm*3000mm
