1000w Metal Laser Cutter / Custom Fiber Metal Laser Cutting Machine Water Cooling
1000w Metal Laser Cutter / Custom Fiber Metal Laser Cutting Machine Water Cooling
1000w Metal Laser Cutter / Custom Fiber Metal Laser Cutting Machine Water Cooling
1000w Metal Laser Cutter / Custom Fiber Metal Laser Cutting Machine Water Cooling
1000w Metal Laser Cutter / Custom Fiber Metal Laser Cutting Machine Water Cooling
1000w Metal Laser Cutter / Custom Fiber Metal Laser Cutting Machine Water Cooling
Specifications
Brand Name :
keyi
Model Number :
KY-C3015
Certification :
CE
Place of Origin :
hubei
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-7 working days
Packaging Details :
wooden packing
Applicable Material :
Metal
Power Requirement: :
380V/50HZ
Laser Wavelength :
1070nm
Servo motor :
France Schneider
Working area :
1500mm*3000mm
Cooling Mode :
Water Cooling
Cutting Area :
1300*2500mm
Control Software: :
Sypcut Control System
Cutting Thickness: :
0-20mm
Cutting Speed :
80m/min
Description

3015 3 Years warranty 1000w IPG / Raycus Fiber Laser cutting machine for metal

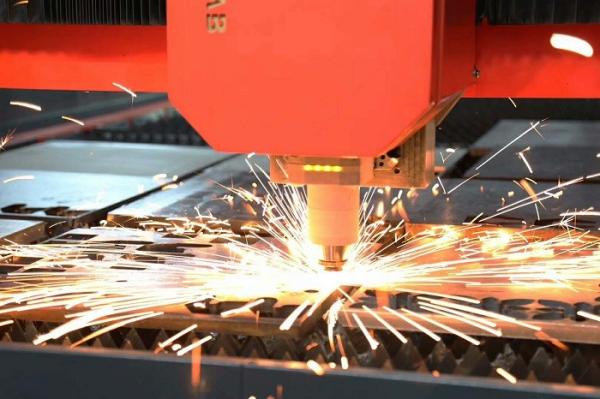

Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser mech cutting head and dynamic focus system, it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber , it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing .

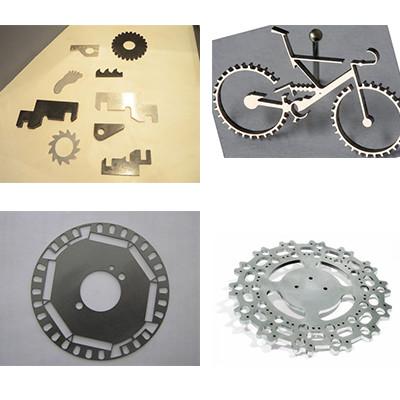

It is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.

Main Features

1) High power servo motor, faster running speed is ensured.
2) Heavy-duty industrial steel structure, low resonance, high-speed running, more stable in operation.
3) Automatic focusing cutting head, thick plate perforation and cutting more perfect.
4) Adopt intelligent gas set device, more convenient for processing.
5) More professional industrial control system with more functions.


Parameter:

Type
KY-C500
KY-C1000
Output power
500W
1000W
The medium of laser
diode-pumped continuous yb-doped fiber
Laser wave length
1070nm
Power
380V/50HZ
Cutting area
3000mm*1500mm
Max cutting speed
18m/min
24m/min
Cooling method
Water cooling
Driving System
Imported Servo Motor
Min line Width
≤0.1mm
Cutting thickness
0.2-8mm (according to material)
Continuous working time
24hours
Weight
About 3000KG
Dimention
44300mm*2348mm*1730mm (length*width*height)
Environment Temperature
5℃ -35℃


1,

Auto-Focus
Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.
2, Free Your Hands
Focal length is controlled by operating system. We don't need to do manual regulation, which effectively avoids errors or faults caused by manual operation.
3, Fast
(1) Auto focus would automatically adjust the most appropriate focal points in the process of punching and cutting, which greatly improves cutting speed;
(2) When replacing different materials or different thicknesses sheet, manual focus laser head needs manual regulation, which is laborious and time-consuming; auto focus laser head is controlled by control system, it can read system storage parameters automatically, saving time and manpower;
(3) Collimating protective lens drawer can better protect collimating lens and improve replacing speed of protective lens.
4, Accuracy
Increasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting accuracy.
5, Durable
(1) Built-in double water-cooling structures can ensure the constant temperature of collimating and focusing components, avoiding overheating damage of lenses, cooling effect is better, no heating or fogging in long-term cutting, service life of lenses have lengthened.
(2) Increasing collimation protective lens and focus protective lens, carefully protect key components.
