Specifications
Brand Name :
Keyi
Model Number :
KY-M-FB20
Certification :
CE
Place of Origin :
Hubei
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 set per month
Delivery Time :
5-7 working days
Packaging Details :
Wooden packing
Marking Speed :
7000mm/s
Laser wavelength :
1064nm
Marking area :
110*110 optional
Control Software :
EZCAD
Cooling Mode :
Air Cooling
Description

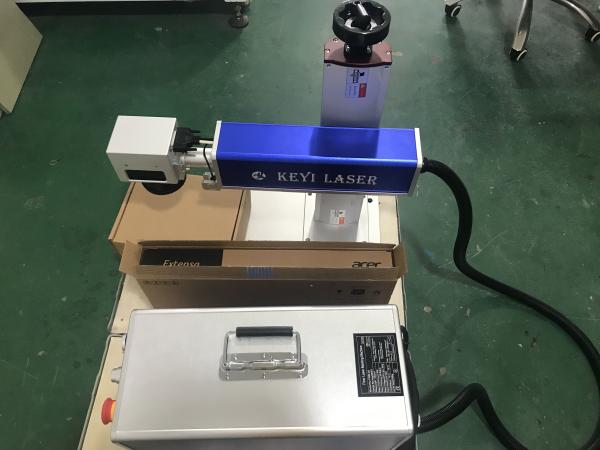

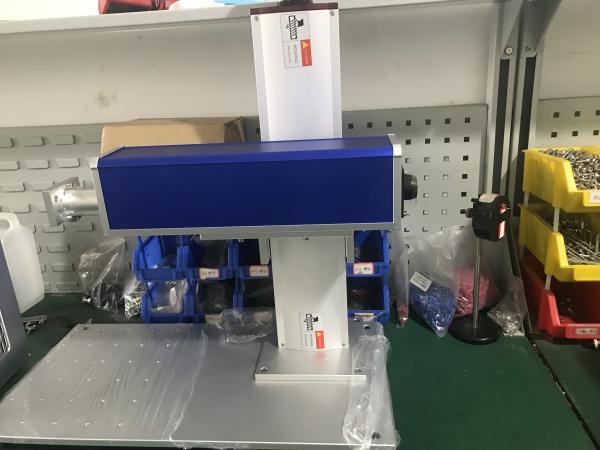

Handheld laser marking machine 20w fiber lasermarking machine

Technical Parameters

Product Name Product ID FB serial laser marking machine KY-M-FB
Marking Parameters Marking Size 110mm*110mm(Any other else)
Marking Speed 0-11000mm/s
Marking depth / Roman Type , Character Height 1mm 0.01-0.5mm( Depending on the material )
Marking Content/ Character Types Text/letters/numbers/symbols/graphics/design/logo, etc. Date/time/QR code / Barcode/ batch number/serial number, etc. real-time number coding
Min. Spot Size 0.02mm
Marking Width 0.01-0.2mm(Depending on the material)
Repeatability ±0.003mm
Laser Characteristics

Laser Type

/ Wavelength

 Fiber Laser/1064nm
Output power(General) ≤20W
Power Stability(8h) ＜±1﹪ms
Beam Quality M2<1.2
Modulation Frequency 20-80(KHZ)
Laser Safety Class Class IV
Other Info System Protection Rating IP54
Cooling Air Cooling
Operating Environment Requirements Temp.:8℃-40℃; Relative humidity≤95%RH； Air dust≤0.01g/m³；Atmospheric pressure ≤86—106Kpa
Power Supply 220V±5%,50Hz±5% Single-phase AC power supply
Power Consumption <0.5KW

Applicable Material & Applicable Industry

Laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminum, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.

1. Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc
2. Instrument: Panel Board, Nameplates, Precision equipment, etc.
3. Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
4. Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5. Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
6. Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.

Main Features

1. High electron-optic conversion efficiency;
2. Low power consumption, stability laser output;
3. High quality beam, consumable free, small in size;

4. Smaller output laser beam, finer marking line, suitable high precision marking.
